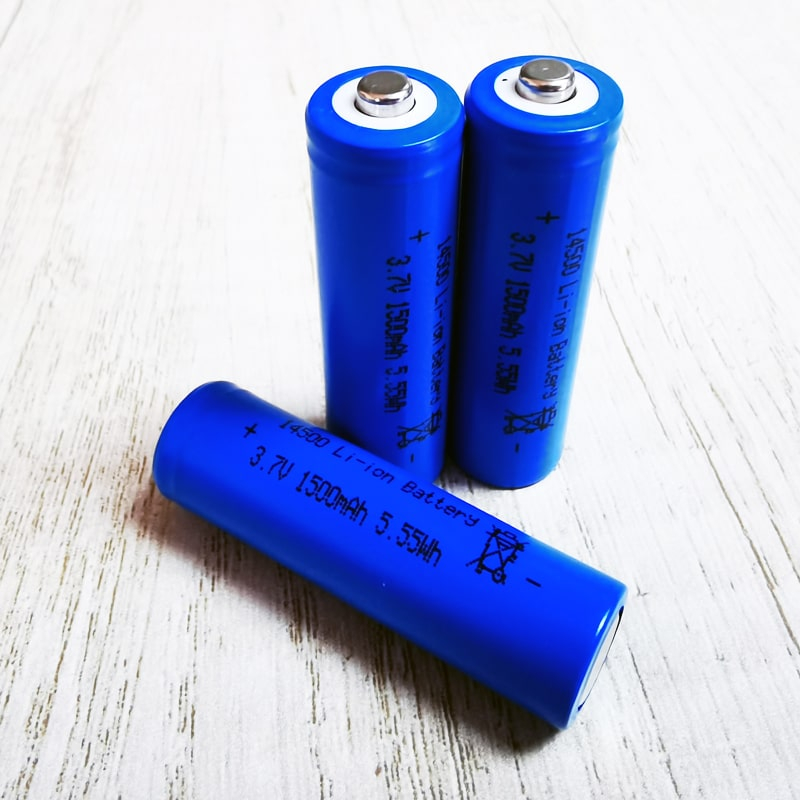

Tip Top 3.6V 3.7V 14500 1500mAh AA rechargeable lithium ion Cell

Model Number:LB037-1500-LT(14500)
Battery type:rechargeable Lithium battery
Nominal Voltage:3.7V
Nominal Capacity:1500mAh
Size:Φ14 * 50mm
Weight:20g
Quantity:
  • LB037-1500-LT(14500)
  • QUAWINTEC/OEM
  • 8506500000
  • Shenzhen, China
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • Netrual packing/Custom box with less than 10KGS
  • 500PCS
  • 5000000/Month

Quick Detail:
 Brand Name:QUAWIN/OEM
 Model Number:LB037-1500-LT(14500)
 Type:Li-Ion,Li-ion battery,Lithium battery
 Place of Origin:Guangdong China (Mainland)
 Composed Type:Single battery
 Nominal Voltage:3.7V
 Nominal Capacity:1500mAh
 Maximal Charging Current:0.75A(Adjust)
 Constant Discharge Current:1.5A(Adjust)
 Over Charger Protection Voltage(V):4.2V±0.05V
 Over Discharge Protection Voltage(V):2.75V
 Cell:Domestic 14500 Battery
 Certificate:CE,ROHS,UN38.3 REACH
 Pack:Blue PVC Shrink tube
 Size:Φ14 * 50mm
 Weight:20g
 Charging temperature(ºC):0ºC~45ºC;32oF~113oF
 Discharging temperature(ºC):-20ºC~60ºC;-4oF~149oF
 Storage temperature(ºC):-20ºC~45ºC;-4oF~113oF
 Protection Temperature(ºC):70ºC±5ºC
 Cycle life:800 times
 Warranty:12 months


Packaging & Delivery :
 . Netural labels,Polybag,PVC,Color box,Customised package
 . Netrual packing/Custom box with less than 10KGS
 . Delivery Detail:sample within 3 work days,7~15 days for bulk order


Recommended Charger: QW050-020-4NL
Charger input: DC 5V/2A(10W Max)
Charging mode: constant voltage constant current (CC/CV)
Charging voltage: 4.2V±1%/1.48V±1%
Charging current: 500mA*4(2a Max)
Charging time: 4-5 hrs(standard)
Charger working instruction: Red light flashing: 0~50%
Yellow light flashing: 50~75%
Green light flashing: 75~100%
Long green light: charging completed


Product Advantages:
 1). Green product
 2). Long standby time
 3). One year warranty
 4). Excellent safety performance
 5). Excellent storage performance and low self-discharge rate
 6). Short circuit testing passed
 7). Overcharge testing passed
 8). Over discharge testing passed
 9). 150ºC thermal shock test passed
 10).1.2m drop testing passed


Spotlight:

 1).Provide both single cells and battery packs
 2).100% inspection before delivery
 3).Inspects inner resistance,discharge platform and self-discharge
 4). manufacturer of 18650 lithium ion battery,lithium polymer battery etc.
 5).tablished quality control systems under ISO9001
 6).Customized packs, tags,labels,plugs,connectors,over current protection,temperature contol protection are available


Shipping terms:

 1).Samples checking: sending by Express ( DHL/UPS/FEDEX/TNT,by air)
 2).Bulk production: sending out by cargo shipping / air freight / Express(DHL/UPS/FedEx/TNT),or we can accept other shipping terms according to your requirements.
 3).We are not responsible for any accidents, delays or other issues that are caused by the shipping.


Safety Precaution:
 1).Do not throw battery into water or make it wet;
 2).Keep the battery away from heat source(like fire or heater);
 3).Do not throw the battery into fire or heat the battery;
 4).Forbid to hammer to trample the battery;
 5).Forbid disassembling the battery in anyway


Call us to know more details datasheet.
