QW384-010-F
QUAWINTEC/OEM
8504401990
Shenzhen, China
L/C, T/T, D/P, Western Union, Paypal, Money Gram
white box/polybags/at your request outer package:carton
200PCS
50000 Pieces/month

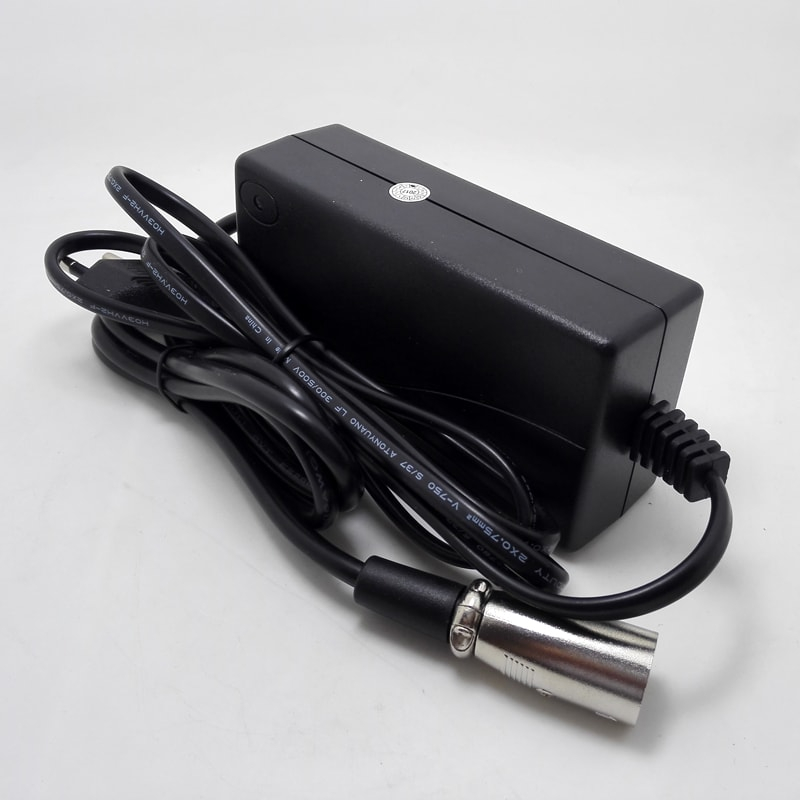

Brand Name:QUAWIN
Model Number:QW384-010-F
Use:12S 36V/38.4V Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 43.8V
Color:Black
Shell Material:Plastic Shell(ABS+PC)
Input voltage:100-240VAC 50/60Hz
Output voltage:43.8V
Output current:1a(Max)
Output power:43.8W
Charge mode:CC—CV(Constant Current—Constant Voltage)
Output Connector:DC Jack,Waterproof Flat Jack,RCA,Multiple PIN,Micro USB,TYPE C,Small Alligator Clip,Ring Type Terminal,Air Jet Plug,customization
Packaging & Delivery:
Specifications:
12S 36V/38.4V Lifepo4 battery pack
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=85%
• Operating temperature:-20ºC ~ 45ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
Specification:
• Input: 100-240VAC 50/60Hz
• Output: DC 43.8V
• Charging current: 1a(Max)
• Dimensions (mm): 119*60.3*37.3mm
• Weight: 300±5g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:Red LED
• Battery Full:Green LED
Call us to know more details datasheet.
Typical product model | |||||
Model | Input Voltage (V) | Battery Voltage (V) | Charging Voltage (V) | Charging Current (A) | |
QW064-050-F | LiFePO4 | AC 100～264V | 6.4(2S) | 7.3 | 5 |
QW128-040-F | 12.8(4S) | 14.6 | 4 | ||
QW256-020-F | 25.6(8S) | 29.2 | 2 | ||
QW384-015-F | 38.4(12S) | 43.8 | 1.5 | ||
QW512-010-F | 51.2(16S) | 58.4 | 1 | ||
QW074-050-L | Lithium | 7.4(2S) | 8.4 | 5 | |
QW148-030-L | 14.8(4S) | 16.8 | 3 | ||
QW259-020-L | 25.9(7S) | 29.4 | 2 | ||
QW370-015-L | 37(10S) | 42 | 1.5 | ||
QW481-010-L | 48.1(13S) | 54.6 | 1 | ||
QW060-050-S | Lead Acid | 6(0.5S) | 7.35 | 5 | |
QW120-040-S | 12(1S) | 14.7 | 4 | ||
QW240-020-S | 24(2S) | 29.4 | 2 | ||
QW360-015-S | 36(3S) | 44.1 | 1.5 | ||
QW480-010-S | 48(4S) | 58.8 | 1 | ||
QW6-12-030-S | 6-12 | 7.35-14.7 | 3 | ||
QW12-24-020-S | 12-24 | 14.7-29.4 | 2 | ||
QW2.4-4.8-050-N | NiMh/NiCD | AC 100～264V | 2.4-4.8(2-4S) | 3-6 | 5 |
QW3.6-7.2-050-N | 3.6-7.2(3-6S) | 4.5-9 | 5 | ||
QW4.8-9.6-050-N | 4.8-9.6(4-8S) | 6-12 | 5 | ||
QW6-12-040-N | 6-12(5-10S) | 7.5-15 | 4 | ||
QW7.2-14.4-030-N | 7.2-14.4(6-12S) | 9-18 | 3 | ||
QW9.6-19.2-025-N | 9.6-19.2(8-16S) | 12-24 | 2.5 | ||
QW12-24-020-N | 12-24(10-20S) | 15-30 | 2 | ||
QW18-36-010-N | 18-36(15-30S) | 22.5-45 | 1 | ||
