Home » Products » Interchangeable Plug Adapter » New products interchangeable plug Adapter EU/US/UK/AU/KC/RSA/CN/PSE/BRA standard 24V 0.25a 6W power supply
Share to:

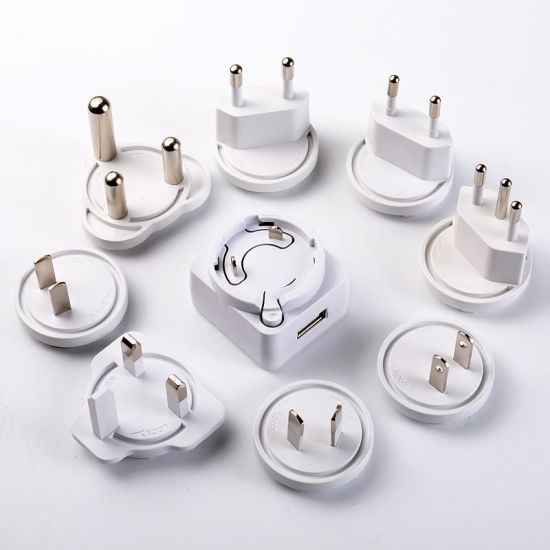

New products interchangeable plug Adapter EU/US/UK/AU/KC/RSA/CN/PSE/BRA standard 24V 0.25a 6W power supply

Model Number:QW240-002-AI
Color:Black/White
Input voltage:90-264VAC 47/63Hz
Output voltage:24V
Output current:0.25A
Size:43.6(T) x 40.9(W) x 22.9(H)mm
Quantity:
  • QW240-002-AI
  • QUAWINTEC/OEM
  • 8504319000
  • Shenzhen, China
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • inner package: Industrial Packing Carton Size: 47*36.5*19 cm 100 pcs Per Carton
  • 500PCS
  • 1000000 PCS/Month

Quick Detail:
Brand Name:QUAWIN/OEM
Model Number:QW240-002-AI
Use:Wall-mounted Adapter,USB Charger,Interchangeable plugs,Desktop Power Supplies,Type C charger, Quick Charger,Car Charger and Wireless Charger.
Type:Electric
Place of Origin:Guangdong China (Mainland)
Certificate:CE GS UL CB FCC SAA C-Tick RCM PSE KC KCC CCC Approvals
AC Plug:EU/US/UK/AU/KC/RSA/CN/PSE/BRA standard
Color:Black/White

Input voltage:90-264VAC 47/63Hz
Output voltage:24V
Output current:0.25A
Output power:6W
Ripple & noise:50mV
Output Regulation:±5%

Energy Efficiency:LEVEL VI
Safeties Standard:60950/ 60335/ 61558/ 60065
Output connector:1.5M Wire or USB interface
Operating Temperature:0ºC ~ +55ºC
Storage Temperature:-20ºC~+80%ºC
Dimension :43.6 * 40.9 * 22.9mm
Humidity:5~95%RH(non-condensing)

Primary to Secondary:50MΩ Min
Ripple and Noise:100mVp-p Max


Packaging & Delivery :

inner package: Industrial Packing Carton Size: 47*36.5*19 cm 100 pcs Per Carton

(Customized Packing To Be Acceptable)

Delivery Detail:sample within 7 work days,15~35 days for bulk order


Safety protections:
 • Over Voltage protection
 • Short Circuit protection
 • Input protection
 • Compliance with ROHS requirements


Typical model Output Voltage Output Current Ripple & noise Efficiency
QW050-005-AI 5V 500mA 30mV VI
QW050-010-AI 5V 1000mA 40mV
QW050-012-AI 5V 1200mA 50mV
QW060-010-AI 6V 1000mA 50mV
QW090-005-AI 9V 500mA 70mV
QW120-005-AI 12V 500mA 50mV
QW240-002-AI 24V 250mA 50mV
