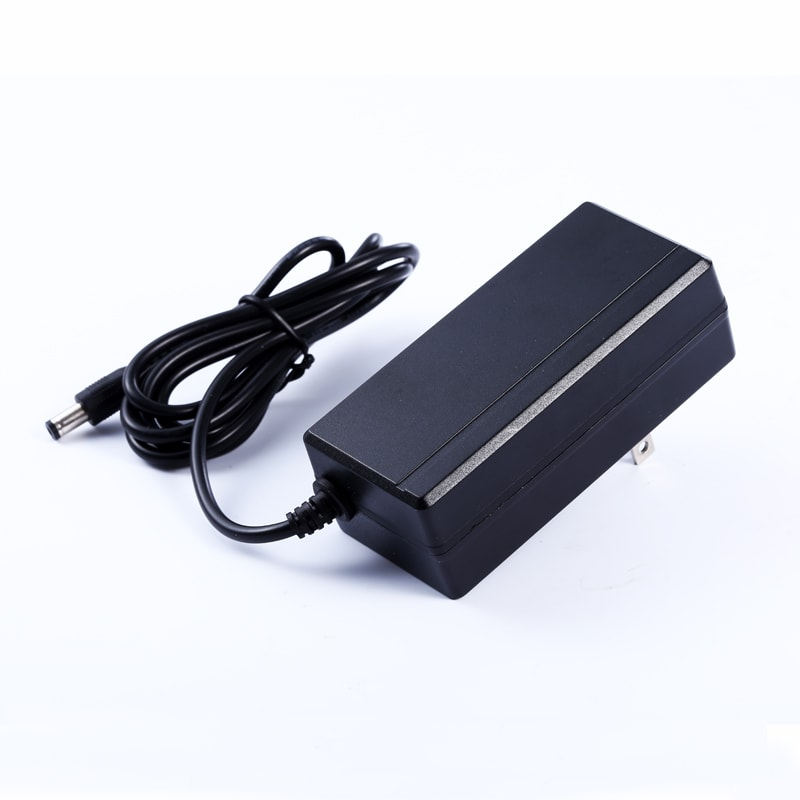

New products interchangeable plug Adapter EU/US/UK/AU/CN standard 9V 5a 48W power supply

Model Number:QW090-050-AI
Color:Black/White
Input voltage:90-264VAC 47/63Hz
Output voltage:9V
Output current:5A
Size:97.3(T) x 45.3(W) x 32(H)mm
Availability:
Quantity:
  • QW090-050-AI

  • QUAWINTEC/OEM

  • 8504319000

  • Shenzhen, China

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • inner package: Industrial Packing Carton Size: 47*36.5*19 cm 50 pcs Per Carton

  • 500PCS

  • 500000 PCS/Month

Quick Detail:

Brand Name:QUAWIN/OEM

Model Number:QW090-050-AI

Use:Wall-mounted Adapter,Interchangeable plugs,Desktop Power Supplies,Type C charger, Quick Charger,Car Charger and Wireless Charger.

Type:Electric

Place of Origin:Guangdong China (Mainland)

Certificate:CE GS UL CB FCC SAA RCM PSE KC CCC Approvals

AC Plug:EU/US/UK/AU/CN standard

Color:Black/White

Input voltage:90-264VAC 47/63Hz

Output voltage:9V

Output current:5A

Output power:45W

Ripple & noise:90mV

Output Regulation:±5%

Energy Efficiency:LEVEL VI

Safeties Standard:60950/ 60335/ 61558/ 60065

Output connector:1.2m/1.5m/1.8m Wire

Operating Temperature:0ºC ~ +55ºC

Storage Temperature:-20ºC~+80%ºC

Dimension :97.3 * 45.3 * 32mm

Humidity:5~95%RH(non-condensing)

Primary to Secondary:50MΩ Min

Ripple and Noise:100mVp-p Max


Packaging & Delivery :

inner package: Industrial Packing Carton Size: 47*36.5*19 cm 50 pcs Per Carton

(Customized Packing To Be Acceptable)

Delivery Detail:sample within 7 work days,15~35 days for bulk order


Safety protections:
 • Over Voltage protection
 • Short Circuit protection
 • Input protection
 • Compliance with ROHS requirements


Typical model Output Voltage Output Current Ripple & noise Efficiency
QW050-050-AI 5V 5000mA 50mV VI
QW060-050-AI 6V 5000mA 60mV
QW090-050-AI 9V 5000mA 90mV
QW120-030-AI 12V 3000mA 120mV
QW120-040-AI 12V 4000mA 120mV
QW150-030-AI 15V 3000mA 150mV
QW180-020-AI 18V 2000mA 180mV
QW240-015-AI 24V 1500mA 240mV
QW240-020-AI 24V 2000mA 240mV
