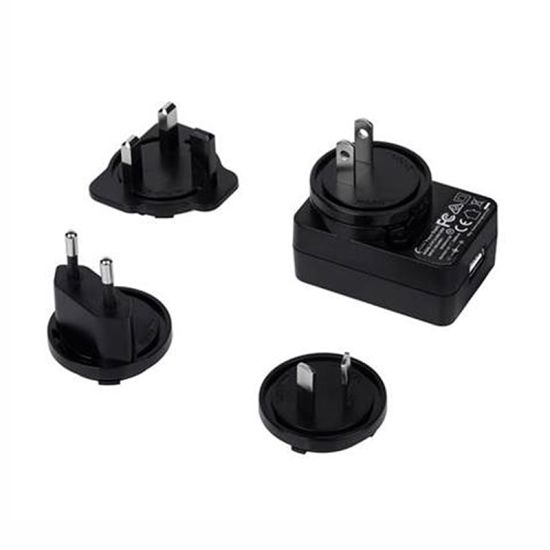

New products interchangeable plug Adapter EU/US/UK/AU/CN standard 24V 0.5a 12W power supply

Model Number:QW240-005-AI
Color:Black/White
Input voltage:90-264VAC 47/63Hz
Output voltage:24V
Output current:0.5A
Size:59(T) x 40.9(W) x 26.4(H)mm
Availability:
Quantity:
  • QW240-005-AI
  • QUAWINTEC/OEM
  • 8504319000
  • Shenzhen, China
  • T/T, D/P, Western Union, Paypal, Money Gram
  • inner package: Industrial Packing Carton Size: 47*36.5*19 cm 100 pcs Per Carton
  • 500PCS
  • 1000000 PCS/Month

Quick Detail:
Brand Name:QUAWIN/OEM
Model Number:QW240-005-AI
Use:Wall-mounted Adapter,USB Charger,Interchangeable plugs,Desktop Power Supplies,Type C charger, Quick Charger,Car Charger and Wireless Charger.
Type:Electric
Place of Origin:Guangdong China (Mainland)
Certificate:CE GS UL CB FCC SAA RCM PSE KC CCC Approvals
AC Plug:EU/US/UK/AU/CN standard
Color:Black/White

Input voltage:90-264VAC 47/63Hz
Output voltage:24V
Output current:0.5A
Output power:12W
Ripple & noise:60mV
Output Regulation:±5%

Energy Efficiency:LEVEL VI
Safeties Standard:60950/ 60335/ 61558/ 60065
Output connector:1.5M Wire or USB interface
Operating Temperature:0ºC ~ +55ºC
Storage Temperature:-20ºC~+80%ºC
Dimension :59 * 40.9 * 26.4mm
Humidity:5~95%RH(non-condensing)

Primary to Secondary:50MΩ Min
Ripple and Noise:100mVp-p Max


Packaging & Delivery :

inner package: Industrial Packing Carton Size: 47*36.5*19 cm 100 pcs Per Carton

(Customized Packing To Be Acceptable)

Delivery Detail:sample within 7 work days,15~35 days for bulk order


Safety protections:
 • Over Voltage protection
 • Short Circuit protection
 • Input protection
 • Compliance with ROHS requirements


Typical model Output Voltage Output Current Ripple & noise Efficiency
QW050-015-AI 5V 1500mA 60mV VI
QW050-020-AI 5V 2000mA 60mV
QW060-020-AI 6V 2000mA 60mV
QW075-015-AI 7.5V 1500mA 60mV
QW090-010-AI 9V 1000mA 60mV
QW120-010-AI 12V 1000mA 60mV
QW150-008-AI 15V 800mA 60mV
QW240-005-AI 24V 500mA 60mV
