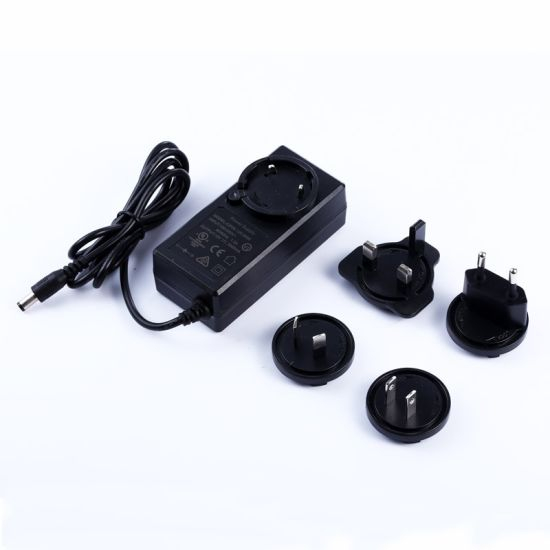

New products interchangeable plug Adapter EU/US/UK/AU/CN standard 12V 3a 48W power supply

Model Number:QW120-030-AI
Color:Black/White
Input voltage:90-264VAC 47/63Hz
Output voltage:12V
Output current:3A
Size:97.3(T) x 45.3(W) x 32(H)mm

Availability:

Quantity:



Inquire Add to Basket

Model:
QW120-030-AI
Brand:
QUAWINTEC/OEM
Code:
8504319000
Port:
Shenzhen, China
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Transport Package:
inner package: Industrial Packing Carton Size: 47*36.5*19 cm 50 pcs Per Carton
Min. Order:
500PCS
production:
500000 PCS/Month

Product Description

Quick Detail:
Brand Name:QUAWIN/OEM
Model Number:QW120-030-AI
Use:Wall-mounted Adapter,Interchangeable plugs,Desktop Power Supplies,Type C charger, Quick Charger,Car Charger and Wireless Charger.
Type:Electric
Place of Origin:Guangdong China (Mainland)
Certificate:CE GS UL CB FCC SAA RCM PSE KC CCC Approvals
AC Plug:EU/US/UK/AU/CN standard
Color:Black/White
Input voltage:90-264VAC 47/63Hz
Output voltage:12V
Output current:3A
Output power:36W
Ripple & noise:120mV
Output Regulation:±5%
Energy Efficiency:LEVEL VI
Safeties Standard:60950/ 60335/ 61558/ 60065
Output connector:1.2m/1.5m/1.8m Wire
Operating Temperature:0ºC ~ +55ºC
Storage Temperature:-20ºC~+80%ºC
Dimension :97.3 * 45.3 * 32mm
Humidity:5~95%RH(non-condensing)
Primary to Secondary:50MΩ Min
Ripple and Noise:100mVp-p Max

Packaging & Delivery :
inner package: Industrial Packing Carton Size: 47*36.5*19 cm 50 pcs Per Carton
(Customized Packing To Be Acceptable)
Delivery Detail:sample within 7 work days,15~35 days for bulk order

Safety protections:
• Over Voltage protection
• Short Circuit protection
• Input protection
• Compliance with ROHS requirements

Typical model	Output Voltage	Output Current	Ripple & noise	Efficiency
QW050-050-AI	5V	5000mA	50mV	VI
QW060-050-AI	6V	5000mA	60mV
QW090-050-AI	9V	5000mA	90mV
QW120-030-AI	12V	3000mA	120mV
QW120-040-AI	12V	4000mA	120mV
QW150-030-AI	15V	3000mA	150mV
QW180-020-AI	18V	2000mA	180mV
QW240-015-AI	24V	1500mA	240mV
QW240-020-AI	24V	2000mA	240mV
