Home » Products » Interchangeable Plug Adapter » New products interchangeable plug Adapter EU/US/UK/AU/CN standard 12V 2a 30W power supply
Share to:

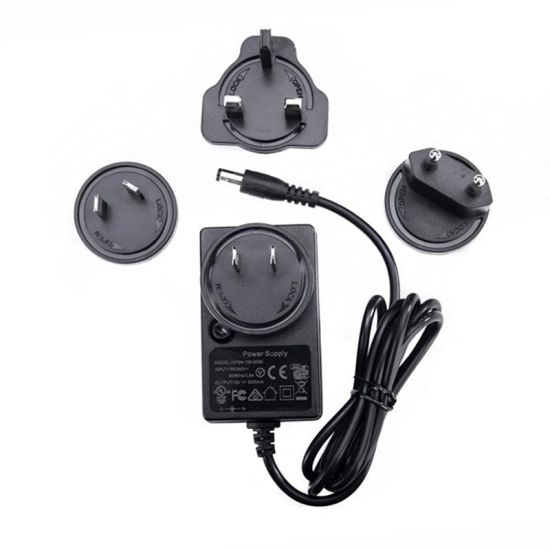

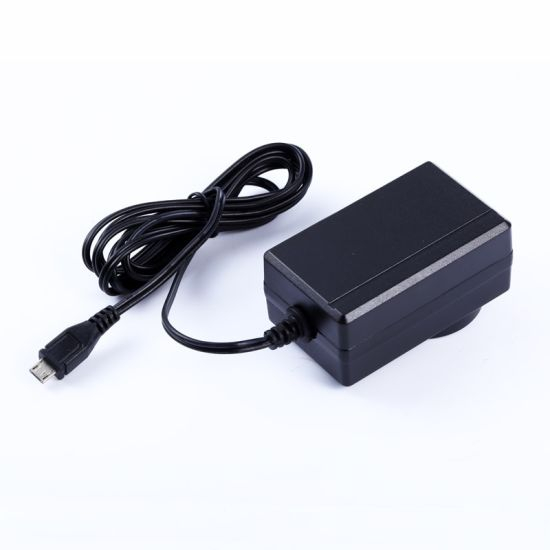

New products interchangeable plug Adapter EU/US/UK/AU/CN standard 12V 2a 30W power supply

Model Number:QW120-020-AI
Color:Black/White
Input voltage:90-264VAC 47/63Hz
Output voltage:12V
Output current:2A
Size:71.2(T) x 43.2(W) x 30.3(H)mm
Availability:
Quantity:
  • QW120-020-AI
  • QUAWINTEC/OEM
  • 8504319000
  • Shenzhen, China
  • L/C, T/T, Western Union, Paypal, Money Gram
  • inner package: Industrial Packing Carton Size: 47*36.5*19 cm 50 pcs Per Carton
  • 500PCS
  • 1000000 PCS/Month

Quick Detail:
Brand Name:QUAWIN/OEM
Model Number:QW120-020-AI
Use:Wall-mounted Adapter,USB Charger,Interchangeable plugs,Desktop Power Supplies,Type C charger, Quick Charger,Car Charger and Wireless Charger.
Type:Electric
Place of Origin:Guangdong China (Mainland)
Certificate:CE GS UL CB FCC SAA RCM PSE KC CCC Approvals
AC Plug:EU/US/UK/AU/CN standard
Color:Black/White

Input voltage:90-264VAC 47/63Hz
Output voltage:12V
Output current:2A
Output power:24W
Ripple & noise:120mV
Output Regulation:±5%

Energy Efficiency:LEVEL VI
Safeties Standard:60950/ 60335/ 61558/ 60065
Output connector:1.5M Wire or USB interface
Operating Temperature:0ºC ~ +55ºC
Storage Temperature:-20ºC~+80%ºC
Dimension :71.2 * 43.2 * 30.3mm

Weight: 190g(only body)

Humidity:5~95%RH(non-condensing)
Primary to Secondary:50MΩ Min
Ripple and Noise:100mVp-p Max


Packaging & Delivery :
inner package: Industrial Packing Carton Size: 47*36.5*19 cm 50 pcs Per Carton
(Customized Packing To Be Acceptable)
Delivery Detail:sample within 7 work days,15~35 days for bulk order


Safety protections:
 • Over Voltage protection
 • Short Circuit protection
 • Input protection
 • Compliance with ROHS requirements


Typical model Output Voltage Output Current Ripple & noise Efficiency
QW050-030-AI 5V 3000mA 90mV VI
QW060-030-AI 6V 3000mA 90mV
QW090-020-AI 9V 2000mA 90mV
QW090-030-AI 9V 3000mA 90mV
QW120-015-AI 12V 1500mA 120mV
QW120-020-AI 12V 2000mA 120mV
QW120-025-AI 12V 2500mA 120mV
QW150-020-AI 15V 2000mA 120mV
QW180-010-AI 18V 1000mA 150mV
QW240-010-AI 24V 1000mA 150mV
