Availability: | |
---|---|
Quantity: | |
QW120-010-AI
QUAWINTEC/OEM
8504319000
Shenzhen, China
L/C, T/T, D/P, Western Union, Paypal, Money Gram
inner package: Industrial Packing Carton Size: 47*36.5*19 cm 100 pcs Per Carton
500PCS
1000000 PCS/Month
Quick Detail:
Brand Name:QUAWIN/OEM
Model Number:QW120-010-AI
Use:Wall-mounted Adapter,USB Charger,Interchangeable plugs,Desktop Power Supplies,Type C charger, Quick Charger,Car Charger and Wireless Charger.
Type:Electric
Place of Origin:Guangdong China (Mainland)
Certificate:CE GS UL CB FCC SAA RCM PSE KC CCC Approvals

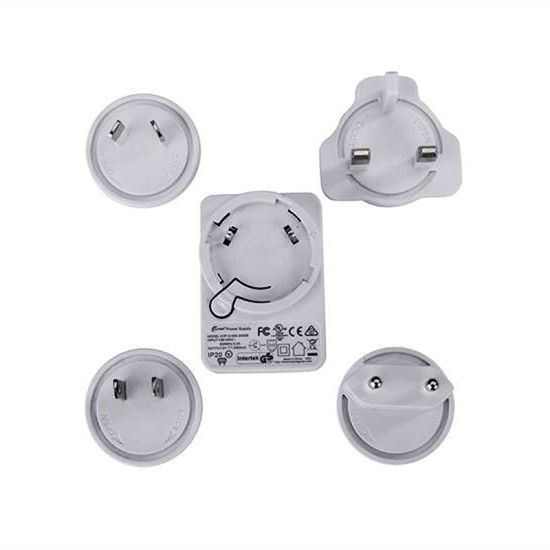

AC Plug:EU/US/UK/AU/CN standard
Color:Black/White
Input voltage:90-264VAC 47/63Hz
Output voltage:12V
Output current:1A
Output power:12W
Ripple & noise:60mV
Output Regulation:±5%
Energy Efficiency:LEVEL VI
Safeties Standard:60950/ 60335/ 61558/ 60065
Output connector:1.5M Wire or USB interface
Operating Temperature:0ºC ~ +55ºC
Storage Temperature:-20ºC~+80%ºC
Dimension :59 * 40.9 * 26.4mm
Humidity:5~95%RH(non-condensing)
Primary to Secondary:50MΩ Min
Ripple and Noise:100mVp-p Max
Packaging & Delivery :
inner package: Industrial Packing Carton Size: 47*36.5*19 cm 100 pcs Per Carton
(Customized Packing To Be Acceptable)
Delivery Detail:sample within 7 work days,15~35 days for bulk order
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Input protection
• Compliance with ROHS requirements
Typical model | Output Voltage | Output Current | Ripple & noise | Efficiency |
QW050-015-AI | 5V | 1500mA | 60mV | VI |
QW050-020-AI | 5V | 2000mA | 60mV | |
QW060-020-AI | 6V | 2000mA | 60mV | |
QW075-015-AI | 7.5V | 1500mA | 60mV | |
QW090-010-AI | 9V | 1000mA | 60mV | |
QW120-010-AI | 12V | 1000mA | 60mV | |
QW150-008-AI | 15V | 800mA | 60mV | |
QW240-005-AI | 24V | 500mA | 60mV |
Quick Detail:
Brand Name:QUAWIN/OEM
Model Number:QW120-010-AI
Use:Wall-mounted Adapter,USB Charger,Interchangeable plugs,Desktop Power Supplies,Type C charger, Quick Charger,Car Charger and Wireless Charger.
Type:Electric
Place of Origin:Guangdong China (Mainland)
Certificate:CE GS UL CB FCC SAA RCM PSE KC CCC Approvals
AC Plug:EU/US/UK/AU/CN standard
Color:Black/White
Input voltage:90-264VAC 47/63Hz
Output voltage:12V
Output current:1A
Output power:12W
Ripple & noise:60mV
Output Regulation:±5%
Energy Efficiency:LEVEL VI
Safeties Standard:60950/ 60335/ 61558/ 60065
Output connector:1.5M Wire or USB interface
Operating Temperature:0ºC ~ +55ºC
Storage Temperature:-20ºC~+80%ºC
Dimension :59 * 40.9 * 26.4mm
Humidity:5~95%RH(non-condensing)
Primary to Secondary:50MΩ Min
Ripple and Noise:100mVp-p Max
Packaging & Delivery :
inner package: Industrial Packing Carton Size: 47*36.5*19 cm 100 pcs Per Carton
(Customized Packing To Be Acceptable)
Delivery Detail:sample within 7 work days,15~35 days for bulk order
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Input protection
• Compliance with ROHS requirements
Typical model | Output Voltage | Output Current | Ripple & noise | Efficiency |
QW050-015-AI | 5V | 1500mA | 60mV | VI |
QW050-020-AI | 5V | 2000mA | 60mV | |
QW060-020-AI | 6V | 2000mA | 60mV | |
QW075-015-AI | 7.5V | 1500mA | 60mV | |
QW090-010-AI | 9V | 1000mA | 60mV | |
QW120-010-AI | 12V | 1000mA | 60mV | |
QW150-008-AI | 15V | 800mA | 60mV | |
QW240-005-AI | 24V | 500mA | 60mV |
