| Quantity: | |
|---|---|
LB037-1500-LF(14500)
QUAWINTEC/OEM
8506500000
Shenzhen, China
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Netrual packing/Custom box with less than 10KGS
500PCS
5000000/Month
Quick Detail:
Brand Name:QUAWIN/OEM

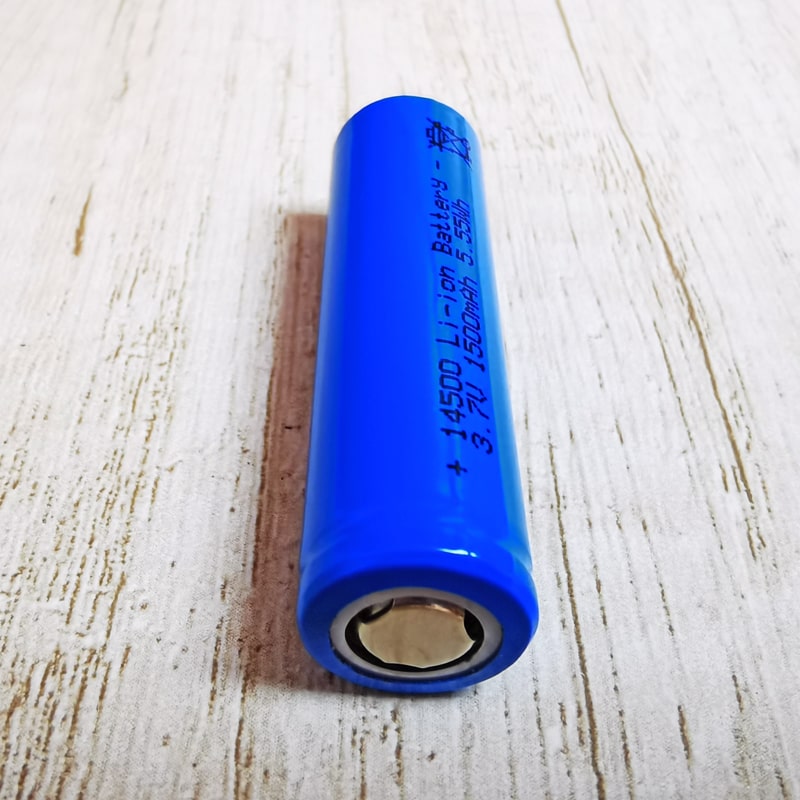

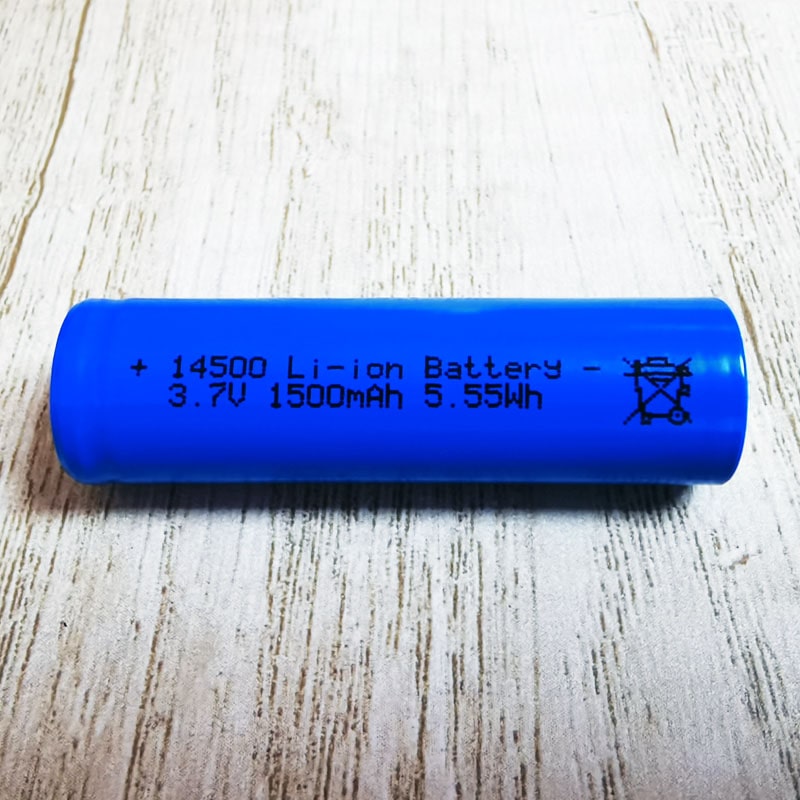

Model Number:LB037-1500-LF(14500)
Type:Li-Ion,Li-ion battery,Lithium battery
Place of Origin:Guangdong China (Mainland)
Composed Type:Single battery
Nominal Voltage:3.7V
Nominal Capacity:1500mAh
Maximal Charging Current:0.75A(Adjust)
Constant Discharge Current:1.5A(Adjust)
Over Charger Protection Voltage(V):4.2V±0.05V
Over Discharge Protection Voltage(V):2.75V
Cell:Domestic 14500 Battery
Certificate:CE,ROHS,UN38.3 REACH
Pack:Blue PVC Shrink tube

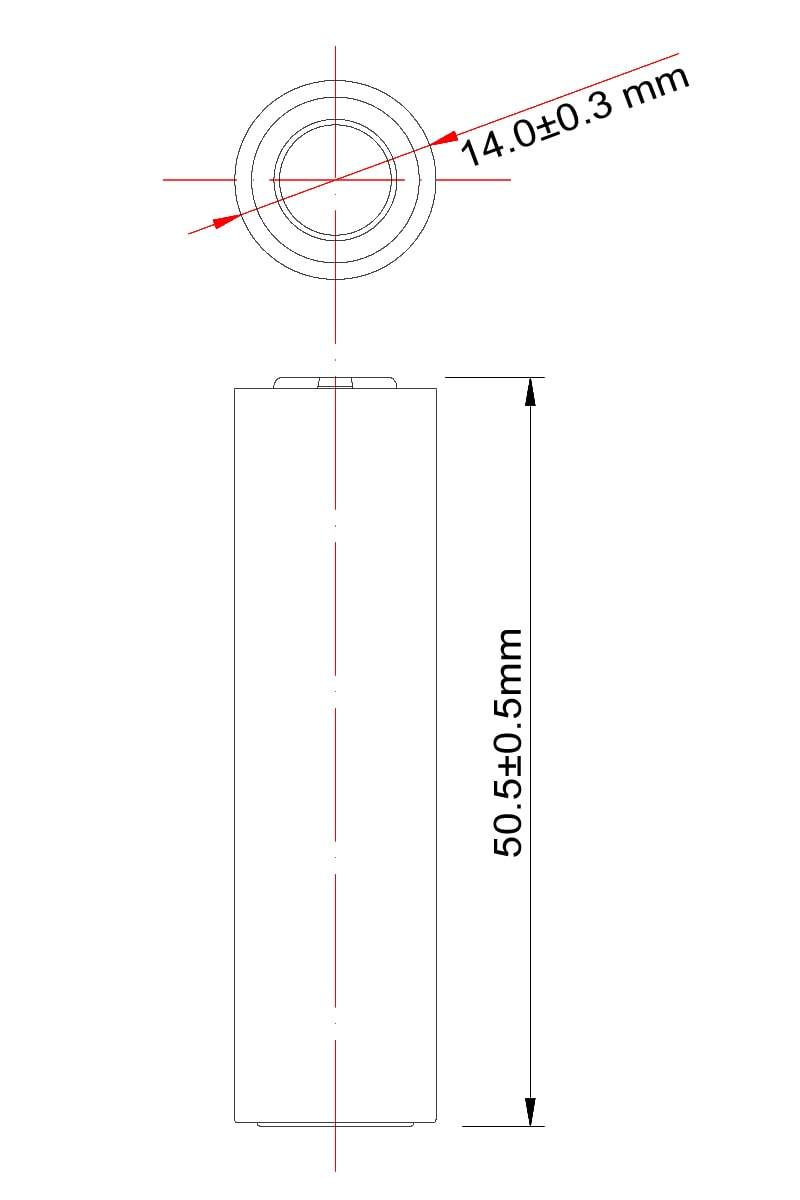

Size:Φ14 * 50mm

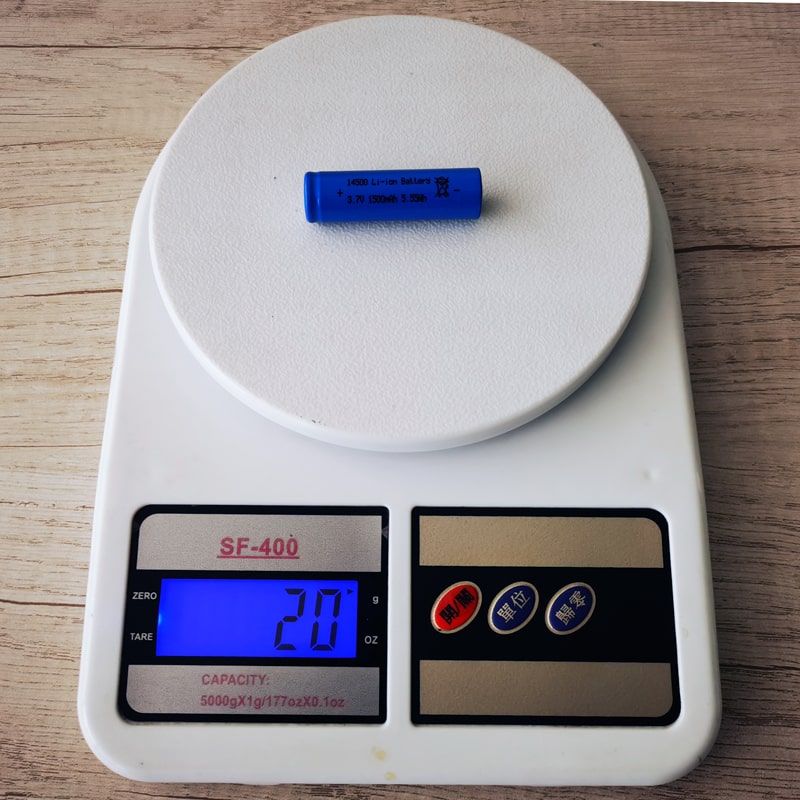

Weight:20g
Charging temperature(ºC):0ºC~45ºC;32oF~113oF
Discharging temperature(ºC):-20ºC~60ºC;-4oF~149oF
Storage temperature(ºC):-20ºC~45ºC;-4oF~113oF
Protection Temperature(ºC):70ºC±5ºC
Cycle life:800 times
Warranty:12 months
Packaging & Delivery :

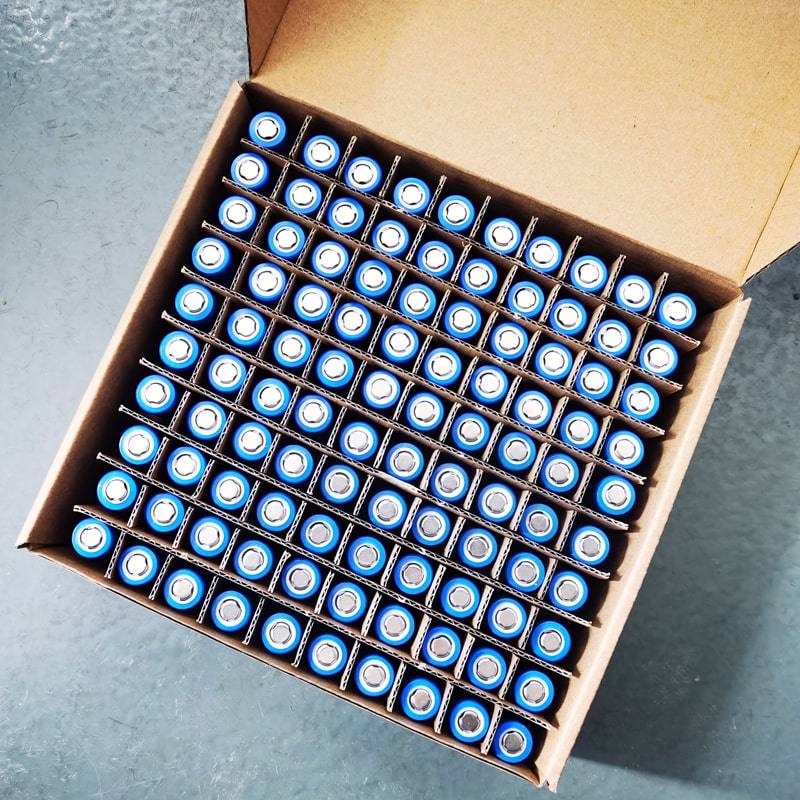

. Netural labels,Polybag,PVC,Color box,Customised package
. Netrual packing/Custom box with less than 10KGS
. Delivery Detail:sample within 7 work days,25~35 days for bulk order
| Recommended Charger: | QW050-020-4NL |
| Charger input: | DC 5V/2A(10W Max) |
| Charging mode: | constant voltage constant current (CC/CV) |
| Charging voltage: | 4.2V±1%/1.48V±1% |
| Charging current: | 500mA*4(2a Max) |
| Charging time: | 4-5 hrs(standard) |
| Charger working instruction: | Red light flashing: 0~50% Yellow light flashing: 50~75% Green light flashing: 75~100% Long green light: charging completed |
Product Advantages:
1). Green product
2). Long standby time
3). One year warranty
4). Excellent safety performance
5). Excellent storage performance and low self-discharge rate
6). Short circuit testing passed
7). Overcharge testing passed
8). Over discharge testing passed
9). 150ºC thermal shock test passed
10).1.2m drop testing passed
Spotlight:
1).Provide both single cells and battery packs
2).100% inspection before delivery

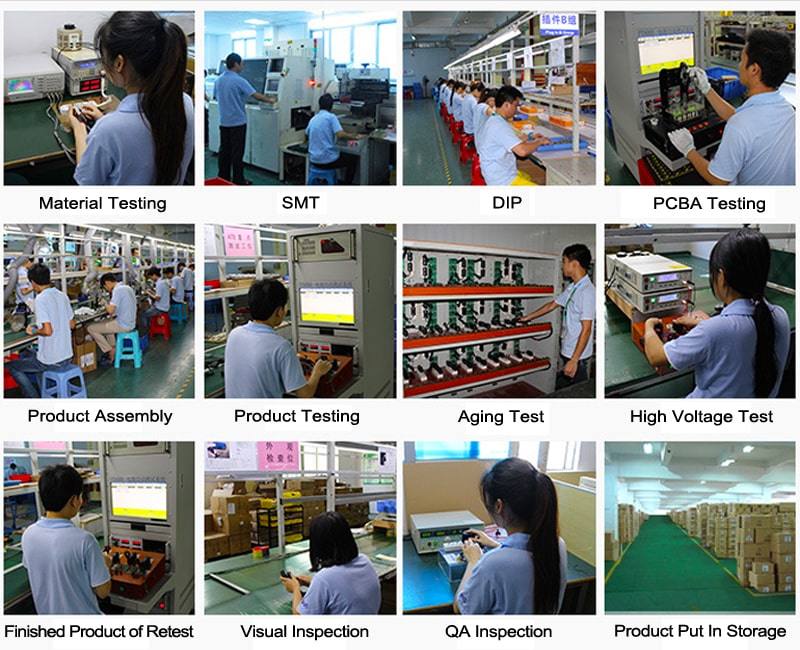

3).Inspects inner resistance,discharge platform and self-discharge
4). manufacturer of 14500 lithium ion battery,lithium polymer battery etc.
5).tablished quality control systems under ISO9001

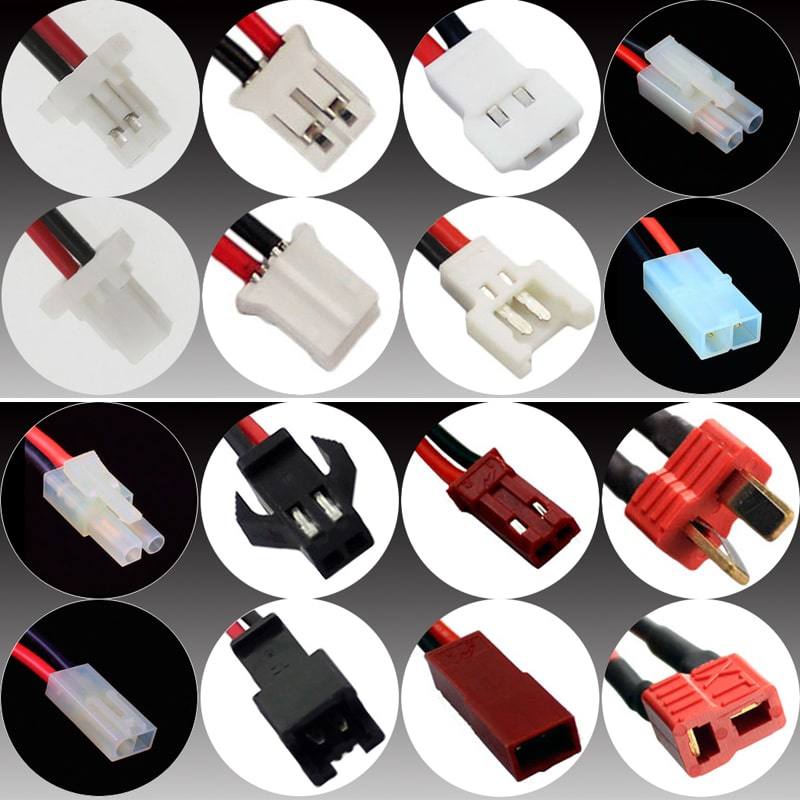

6).Customized packs, tags,labels,plugs,connectors,over current protection,temperature contol protection are available
Shipping terms:
1).Samples checking: sending by Express ( DHL/UPS/FEDEX/TNT,by air)
2).Bulk production: sending out by cargo shipping / air freight / Express(DHL/UPS/FedEx/TNT),or we can accept other shipping terms according to your requirements.
3).We are not responsible for any accidents, delays or other issues that are caused by the shipping.
Safety Precaution:
1).Do not throw battery into water or make it wet;
2).Keep the battery away from heat source(like fire or heater);
3).Do not throw the battery into fire or heat the battery;
4).Forbid to hammer to trample the battery;
5).Forbid disassembling the battery in anyway
Call us to know more details datasheet.
