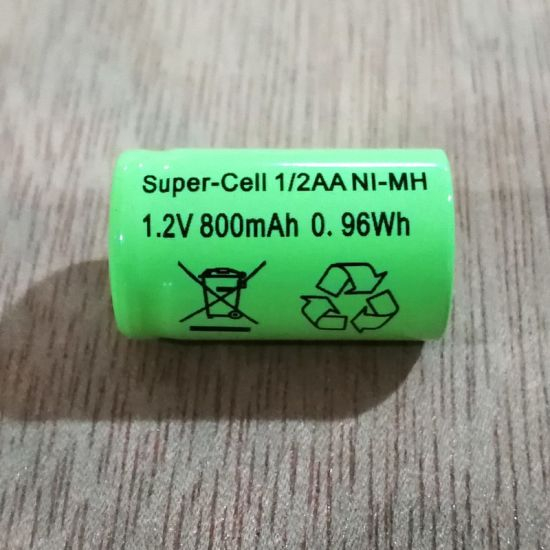

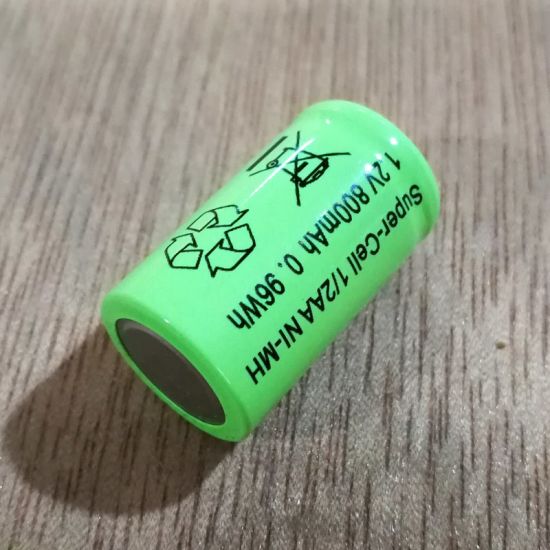

Flat Top 1.2V 1/2AA NiMH Rechargeable Battery(800mAh)

Model Number:NB012-0800-N(12AA)
Battery type:1/2AA NiMH Rechargeable Battery
Nominal Voltage:1.2V
Nominal Capacity:800mAh
Size:Φ14.5*25mm
Weight:15g

Availability:

Quantity:



Inquire Add to Basket

Model:
NB012-0800-N(12AA)
Brand:
QUAWINTEC/OEM
Code:
8507809090
Port:
Shenzhen, China
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Transport Package:
Netrual packing/custom box with less than 10KGS
Min. Order:
500PCS
production:
5000000/Month

Product Description

Quick Detail:
Brand Name:QUAWIN/OEM
Model Number:NB012-0800-N(12AA)
Type:1/2AA NiMH Rechargeable Battery
Place of Origin:Guangdong China (Mainland)
Certificate:CE/RoHS/UN38.3/MSDS
Nominal Voltage:1.2V
Nominal Capacity:800mAh
Cell:NiMH 1/2AA
Charging current:80mA
Pack:Green PVC Shrink tube
Size:Φ14.5*25mm
Weight:15g
Composed Type:Single battery
Delivery time:7-30 days
Cycle Life:500-800 Times
Warranty:12 months
Packing:Antistatic bag /white box and standard export carton/customized

Packaging & Delivery :
. Netural labels,Polybag,PVC,Color box,Customised package
. Netrual packing/Custom box with less than 10KGS
. Delivery Detail:sample within 6 work days,15~30 days for bulk order

Product Advantages:
1). Green product
2). Long standby time
3). One year warranty
4). Excellent safety performance
5). Excellent storage performance and low self-discharge rate
6). Overcharge testing passed
7). Over discharge testing passed
8). 1.2m drop testing passed

NOTE:
1.The capacities obtained at 0.1C charge&0.2C discharge at the temperature of 25ºC
2.recommends for standard charing:0ºC~45ºC and for discharge;-20ºC~+50ºC,
3.Strict controlrecommended over rapid charge.

Spotlight:
1). Provide both single cells and battery packs
2). 100% inspection before delivery
3). Inspects inner resistance,discharge platform and self-discharge
4). tablished quality control systems under ISO9001
5). customized packs, tags,labels,plugs,connectors,over current protection, temperature contol protection are available

Shipping terms:
1).Samples checking: sending by Express ( DHL/UPS/FEDEX/TNT,by air)
2).Bulk production: sending out by cargo shipping / air freight / Express(DHL/UPS/FedEx/TNT),or we can accept other shipping terms according to your requirements.
3).We are not responsible for any accidents, delays or other issues that are caused by the shipping.

Safety Precaution:
1).Do not throw battery into water or make it wet;
2).Keep the battery away from heat source(like fire or heater);
3).Do not throw the battery into fire or heat the battery;
4).Forbid to hammer to trample the battery;
5).Forbid disassembling the battery in anyway

Model	Nominal Voltage(V)	Typical Capacity(mAh)	Dimensions (mm)	Standard Charge(mA)	Weight Approx(g)
1/3AAA	1.2	180	10.5×16.0	18	5
2/3AAA	1.2	300	10.5×29.0	30	8
2/3AAA	1.2	400	10.5×29.0	40	9
AAA	1.2	600	10.5×44.5	60	10
AAA	1.2	700	10.5×44.5	70	11
AAA	1.2	800	10.5×44.5	80	12
AAA	1.2	850	10.5×44.5	85	13
AAA	1.2	900	10.5×44.5	90	13
AAA	1.2	950	10.5×44.5	95	14
AAA	1.2	1000	10.5×44.5	100	14
1/2AA800	1.2	800	14.5×25.0	80	15
2/3AA800	1.2	800	14.5×28.0	80	15
4/5AA1200	1.2	1200	14.5×43.0	120	23
AA	1.2	1200	14.5×50.5	120	25
AA	1.2	1300	14.5×50.5	130	26
AA	1.2	1500	14.5×50.5	150	28
AA	1.2	1600	14.5×50.5	160	28
AA	1.2	1800	14.5×50.5	180	29
AA	1.2	2000	14.5×50.5	200	29
AA	1.2	2100	14.5×50.5	210	30
AA	1.2	2200	14.5×50.5	220	30
AA	1.2	2300	14.5×50.5	230	31
AA	1.2	2400	14.5×50.5	230	31
AA	1.2	2450	14.5×50.5	245	31
AA	1.2	2500	14.5×50.5	250	31
AA	1.2	2600	14.5×50.5	260	31
AA	1.2	2700	14.5×50.5	270	32
2/3A	1.2	1100	17.0×28.0	110	21
2/3A	1.2	1200	17.0×28.0	120	21
4/5A	1.2	2000	17.0×43.0	200	32
4/5A	1.2	2100	17.0×43.0	210	32
4/5A	1.2	2200	17.0×43.0	220	32
A2500	1.2	2500	17.0×50.0	250	40
A2700	1.2	2700	17.0×50.0	270	42
4/3A3600	1.2	3600	17.0×67.0	360	50
4/3A3800	1.2	3800	17.0×67.0	380	52
SC2500	1.2	2500	23.0×43.0	250	58
SC3000	1.2	3000	23.0×43.0	300	60
SC3300	1.2	3300	23.0×43.0	330	62
C3500	1.2	3500	25.8×51.0	350	70
C4000	1.2	4000	25.8×51.0	400	77
C4500	1.2	4500	25.8×51.0	450	78
C5000	1.2	5500	25.8×51.0	500	88
D8000	1.2	8000	33.0×61.8	800	145
D9000	1.2	9000	33.0×61.8	900	155
D10000	1.2	10000	33.0×61.8	1000	165
F13000	1.2	13000	33.0×90.5	1300	240
F14000	1.2	14000	33.0×90.5	1400	245
F15000	1.2	15000	33.0×90.5	1500	255
9V	9.0	160	17.5×26.5×48.5	16	42
9V	9.0	250	17.5×26.5×48.5	25	48
