QW768-130-F
QUAWINTEC/OEM
8504401990
Shenzhen, China
L/C, T/T, D/P, Western Union, Paypal, Money Gram
white box/polybags/at your request outer package:carton
200PCS
50000 Pieces

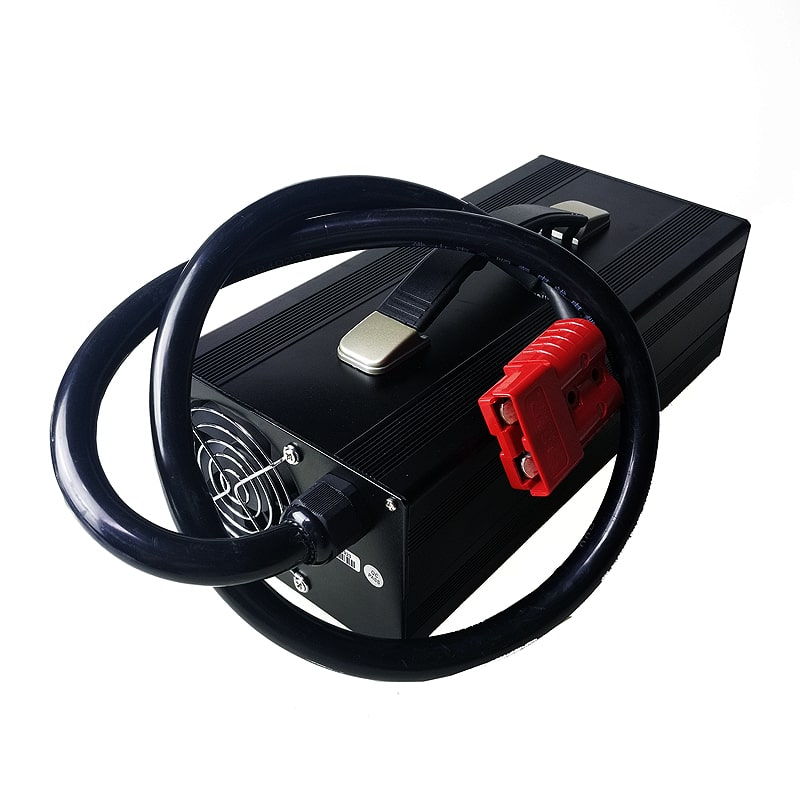

Brand Name:QUAWIN
Model Number:QW768-130-F
Use:24S 72V/76.8V Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 87.6V
Color:Black
Shell Material:Aluminium alloy
Additional functionality:LED display
Input voltage:100-240VAC 50/60Hz with PFC
Output voltage:87.6V
Output current:13a(Max)
Output power:1138.8W
Charge mode:CC—CV(Constant Current—Constant Voltage)
Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,Anderson connector,customization
Packaging & Delivery :
Specifications:
24S 72V/76.8V Lifepo4 battery pack
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=90%
• Operating temperature:-20ºC ~ 45ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
Specification:
• Input: 100-240VAC 50/60Hz with PFC
• Output: DC 87.6V
• Charging current: 13a(Max)
• Dimensions (mm): 312*140*90
• Weight: 3200g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
LED Indicator:
Waiting Mode:LED(GREEN) ON
Charging Mode:LED(BLUE) FLASH
Full Charged Mode:LED(GREEN) ON
Charge Error Mode:LED(RED) FLASH
Call us to know more details datasheet.
| (A Typical Model) | |||||
| Model | Input Voltage(V) | Battery Voltage(V) | Charging Voltage(V) | Charging Current(A) | |
| QW128-600-F | (LiFePO4) | AC 100~264V | 12.8(4S) | 14.6 | 60 |
| QW256-400-F | 25.6(8S) | 29.2 | 40 | ||
| QW384-250-F | 38.4(12S) | 43.8 | 25 | ||
| QW512-200-F | 51.2(16S) | 58.4 | 20 | ||
| QW640-150-F | 64(20S) | 73 | 15 | ||
| QW768-130-F | 76.8(24S) | 87.6 | 13 | ||
| QW148-600-L | (Lithium) | 14.8(4S) | 16.8 | 60 | |
| QW259-400-L | 25.9(7S) | 29.4 | 40 | ||
| QW370-250-L | 37(10S) | 42 | 25 | ||
| QW481-200-L | 48.1(13S) | 54.6 | 20 | ||
| QW629-150-L | 62.9(17S) | 71.4 | 15 | ||
| QW740-130-L | 74(20S) | 84 | 13 | ||
| QW120-600-S | (Lead Acid) | 12(1S) | 14.7 | 60 | |
| QW240-400-S | 24(2S) | 29.4 | 40 | ||
| QW360-250-S | 36(3S) | 44.1 | 25 | ||
| QW480-200-S | 48(4S) | 58.8 | 20 | ||
| QW600-150-S | 60(5S) | 73.5 | 15 | ||
| QW720-130-S | 72(6S) | 88.2 | 13 | ||
