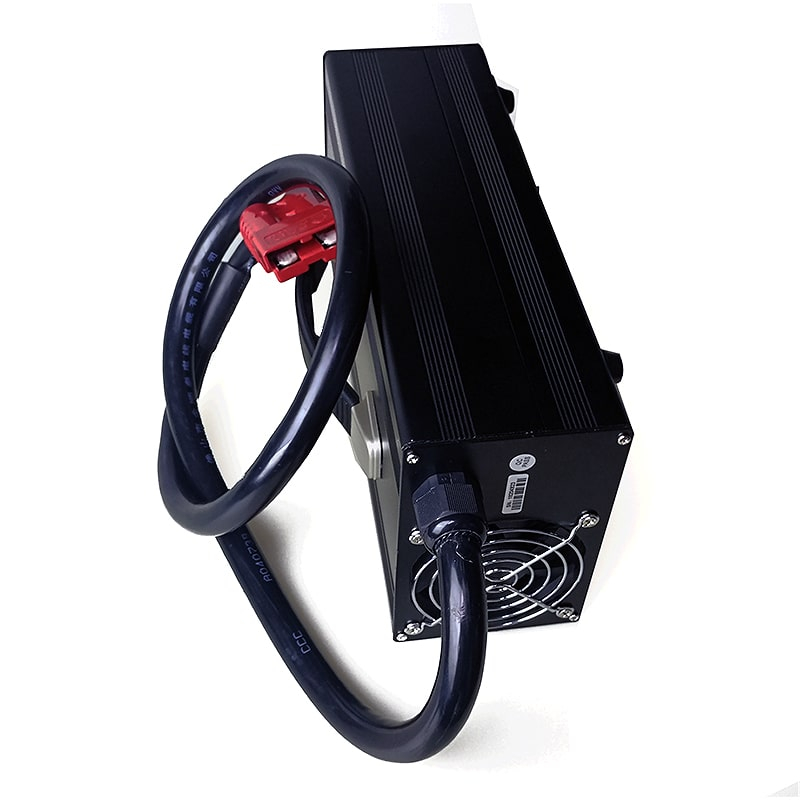

Factory Direct Sale DC 28.8V 29.2V 40a 1200W charger for 8S 24V 25.6V LiFePO4 battery pack with PFC

Model:QW256-400-F
Input voltage:100-240VAC 50/60Hz
Output voltage:29.2V
Output current:40a(Max)
Dimensions (mm): 312*140*90
Availability:
Quantity:
  • QW256-400-F
  • QUAWINTEC/OEM
  • 8504401990
  • Shenzhen, China
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • white box/polybags/at your request outer package:carton
  • 200PCS
  • 50000 Pieces
Quick Detail:

Brand Name:QUAWIN

Model Number:QW256-400-F

Use:8S 24V/25.6V Lifepo4 battery pack

Type:Electric

Place of Origin:Guangdong China (Mainland)

Battery charger:automatic battery charger 29.2V

Color:Black

Shell Material:Aluminium alloy

Additional functionality:LED display

Input voltage:100-240VAC 50/60Hz with PFC

Output voltage:29.2V

Output current:40a(Max)

Output power:1168W

Charge mode:CC—CV(Constant Current—Constant Voltage)

Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,Anderson connector,customization


Packaging & Delivery :

 4pcs/Carton
 Carton size: 475*422*375mm

 Delivery Detail:sample within 7 work days,15~25 days for bulk order


Specifications:
 8S 24V/25.6V Lifepo4 battery pack

Features:
 • Charging mode:CC-CV(Constant Current-Constant Voltage)
 • High efficiency and low power consumption
 • Stabilized output and low noice
 • Efficiency(at 100% load): >=90%
 • Operating temperature:-20ºC ~ 45ºC
 • Storage temperature:-40ºC ~ 85ºC
 • Operating humidity:5%~90%RH


Specification:
 • Input: 100-240VAC 50/60Hz with PFC
 • Output: DC 29.2V
 • Charging current: 40a(Max)
 • Dimensions (mm): 312*140*90
 • Weight: 3200g(only body)


Safety protections:
 • Over Voltage protection
 • Short Circuit protection
 • Polarity error protection
 • Over power protection


LED Indicator:
 Waiting Mode:LED(GREEN)  ON
 Charging Mode:LED(BLUE)   FLASH
 Full Charged Mode:LED(GREEN)  ON
 Charge Error Mode:LED(RED)   FLASH


Call us to know more details datasheet.

(A Typical Model)
Model Input Voltage(V) Battery Voltage(V) Charging Voltage(V) Charging Current(A)
QW128-600-F (LiFePO4) AC 100~264V 12.8(4S) 14.6 60
QW256-400-F 25.6(8S) 29.2 40
QW384-250-F 38.4(12S) 43.8 25
QW512-200-F 51.2(16S) 58.4 20
QW640-150-F 64(20S) 73 15
QW768-130-F 76.8(24S) 87.6 13
QW148-600-L (Lithium) 14.8(4S) 16.8 60
QW259-400-L 25.9(7S) 29.4 40
QW370-250-L 37(10S) 42 25
QW481-200-L 48.1(13S) 54.6 20
QW629-150-L 62.9(17S) 71.4 15
QW740-130-L 74(20S) 84 13
QW120-600-S (Lead Acid) 12(1S) 14.7 60
QW240-400-S 24(2S) 29.4 40
QW360-250-S 36(3S) 44.1 25
QW480-200-S 48(4S) 58.8 20
QW600-150-S 60(5S) 73.5 15
QW720-130-S 72(6S) 88.2 13
