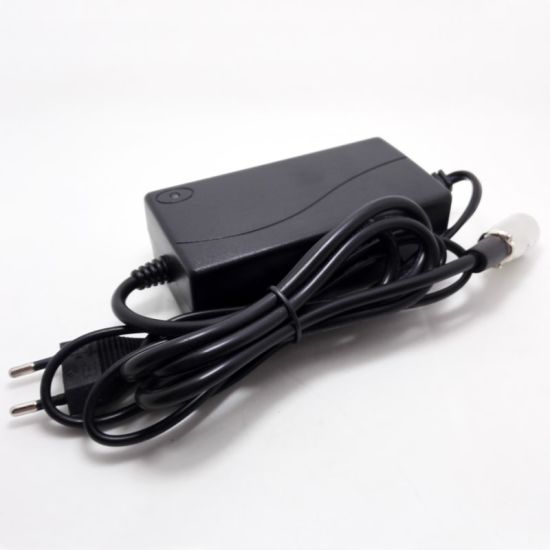

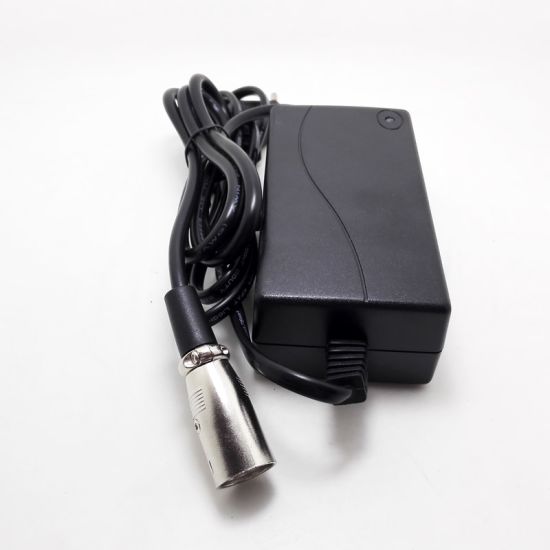

Factory Direct Sale 54.6V 1A 60W Charger for 13s 48V 46.8V Li-ion/Lithium Polymer Battery

Model:QW481-010-L
Input voltage:100-240VAC 50/60Hz
Output voltage:54.6V
Output current:1a(Max)
Dimensions (mm): 119*60.3*37.3
Availability:
Quantity:
  • QW481-010-L

  • QUAWINTEC/OEM

  • 8504401990

  • Shenzhen, China

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • white box/polybags/at your request outer package:carton

  • 500PCS

  • 50000 Pieces

Quick Detail:
Brand Name:QUAWIN
Model Number:QW481-010-L
Use:13S 48V 46.8V Li-ion or Li-polymer battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 54.6V
Color:Black
Shell Material:Plastic Shell(ABS+PC)
Input voltage:100-240VAC 50/60Hz

Output voltage:54.6V
Output current:1a(Max)
Output power:54.6W
Charge mode:CC-CV(Constant Current-Constant Voltage)
Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,Anderson connector,customization


Packaging & Delivery :

50pcs/Carton
Carton size:595*362*295mm

Delivery Detail:sample within 7 work days,15~25 days for bulk order


Specifications:
 13S 48V 46.8V Li-ion or Lithium Polymer battery PACK

Features:
 • Charging mode:CC-CV(Constant Current-Constant Voltage)
 • High efficiency and low power consumption
 • Stabilized output and low noice
 • Efficiency(at 100% load): >=85%
 • Operating temperature:-20ºC ~ 45ºC
 • Storage temperature:-40ºC ~ 85ºC
 • Operating humidity:5%~90%RH


Specification:
 • Input: 100-240VAC 50/60Hz
 • Output: DC 54.6V
 • Charging current: 1a(Max)
 • Dimensions (mm): 119*60.3*37.3mm
 • Weight: 300g(only body)


Safety protections:
 • Over Voltage protection
 • Short Circuit protection
 • Polarity error protection
 • Over power protection


LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
 • Charging:Red LED
 • Battery Full:Green LED


Call us to know more details datasheet.

(A Typical Model)
Model Input Voltage(V) Battery Voltage(V) Charging Voltage(V) Charging Current(A)
QW064-050-F (LiFePO4) AC 100~264V 6.4(2S) 7.3 5
QW128-040-F 12.8(4S) 14.6 4
QW256-020-F 25.6(8S) 29.2 2
QW384-015-F 38.4(12S) 43.8 1.5
QW512-010-F 51.2(16S) 58.4 1
QW074-050-L (Lithium) 7.4(2S) 8.4 5
QW148-030-L 14.8(4S) 16.8 3
QW259-020-L 25.9(7S) 29.4 2
QW370-015-L 37(10S) 42 1.5
QW481-010-L 48.1(13S) 54.6 1
QW060-050-S (Lead Acid) 6(0.5S) 7.35 5
QW120-040-S 12(1S) 14.7 4
QW240-020-S 24(2S) 29.4 2
QW360-015-S 36(3S) 44.1 1.5
QW480-010-S 48(4S) 58.8 1
QW6-12-030-S 6~12 7.35~14.7 3
QW12-24-020-S 12~24 14.7~29.4 2
