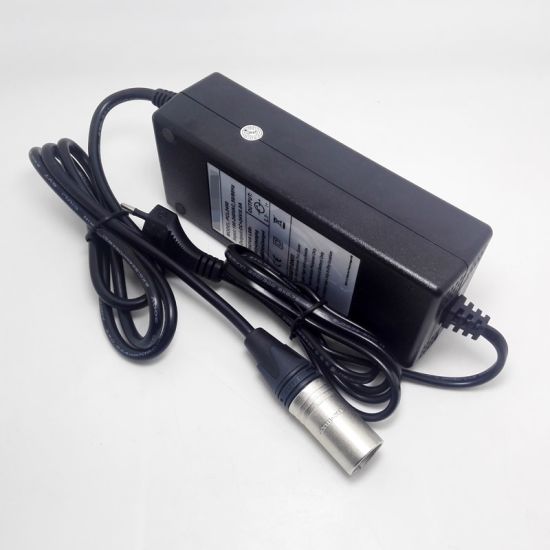

Factory Direct Sale 42V 3A 150W Charger for 10s 36V 37V Li-ion/Lithium Polymer Battery

Model:QW370-030-L
Input voltage:100-240VAC 50/60Hz
Output voltage:42V
Output current:3a(Max)
Dimensions (mm): 152.5*63*45
Availability:
Quantity:
  • QW370-030-L

  • QUAWINTEC/OEM

  • 8504401990

  • Shenzhen, China

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • white box/polybags/at your request outer package:carton

  • 500PCS

  • 50000 Pieces

Quick Detail:
Brand Name:QUAWIN
Model Number:QW370-030-L
Use:10S 36V 37V Li-ion or Li-polymer battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 42V
Color:Black
Shell Material:Plastic Shell(ABS+PC)
Input voltage:100-240VAC 50/60Hz

Output voltage:42V
Output current:3a(Max)
Output power:126W
Charge mode:CC-CV(Constant Current-Constant Voltage)
Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,Anderson connector,customization


Packaging & Delivery :

30pcs/Carton
Carton size: 415*380*270mm

Delivery Detail:sample within 7 work days,15~25 days for bulk order


Specifications:
10S 36V 37V Li-ion or Lithium Polymer battery PACK

Features:
 • Charging mode:CC-CV(Constant Current-Constant Voltage)
 • High efficiency and low power consumption
 • Stabilized output and low noice
 • Efficiency(at 100% load): >=85%
 • Operating temperature:-20ºC ~ 45ºC
 • Storage temperature:-40ºC ~ 85ºC
 • Operating humidity:5%~90%RH


Specification:
 • Input: 100-240VAC 50/60Hz
 • Output: DC 42V
 • Charging current:3a(Max)
 • Dimensions (mm): 152.5*63*45mm
 • Weight: 500g(only body)


Safety protections:
 • Over Voltage protection
 • Short Circuit protection
 • Polarity error protection
 • Over power protection


LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
 • Charging:Red LED
 • Battery Full:Green LED


Call us to know more details datasheet.

(A Typical Model)
Model Input Voltage(V) Battery Voltage(V) Charging Voltage(V) Charging Current(A)
QW128-100-F (LiFePO4) AC 100~264V 12.8(4S) 14.6 10
QW256-050-F 25.6(8S) 29.2 5
QW384-030-F 38.4(12S) 43.8 3
QW512-025-F 51.2(16S) 58.4 2.5
QW640-020-F 64(20S) 73 2
QW148-090-L (Lithium) 14.8(4S) 16.8 9
QW259-050-L 25.9(7S) 29.4 5
QW370-030-L 37(10S) 42 3
QW481-025-L 48.1(13S) 54.6 2.5
QW629-020-L 62.9(17S) 71.4 2
QW120-100-S (Lead Acid) 12(1S) 14.7 10
QW240-050-S 24(2S) 29.4 5
QW360-030-S 36(3S) 44.1 3
QW480-025-S 48(4S) 58.8 2.5
QW600-020-S 60(5S) 73.5 2
