| Quantity: | |
|---|---|
QW148-030-L
QUAWINTEC/OEM
8504401990
Shenzhen, China
L/C, T/T, D/P, Western Union, Paypal, Money Gram
white box/polybags/at your request outer package:carton
500PCS
50000 Pieces
Quick Detail:

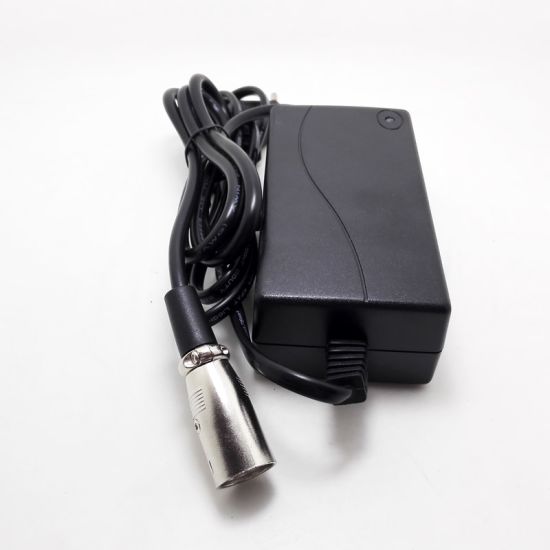

Brand Name:QUAWIN
Model Number:QW148-030-L
Use:4S 12V 14.8V Li-ion or Li-polymer battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 16.8V
Color:Black
Shell Material:Plastic Shell(ABS+PC)
Input voltage:100-240VAC 50/60Hz
Output voltage:16.8V
Output current:3a(Max)
Output power:50.4W
Charge mode:CC-CV(Constant Current-Constant Voltage)
Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,Anderson connector,customization
Packaging & Delivery :
Specifications:
4S 12V 14.8V Li-ion or Lithium Polymer battery PACK
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=85%
• Operating temperature:-20ºC ~ 45ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
Specification:
• Input: 100-240VAC 50/60Hz
• Output: DC 16.8V
• Charging current: 3a(Max)
• Dimensions (mm): 119*60.3*37.3mm
• Weight: 300g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:Red LED
• Battery Full:Green LED
Call us to know more details datasheet.
| (A Typical Model) | |||||
| Model | Input Voltage(V) | Battery Voltage(V) | Charging Voltage(V) | Charging Current(A) | |
| QW064-050-F | (LiFePO4) | AC 100~264V | 6.4(2S) | 7.3 | 5 |
| QW128-040-F | 12.8(4S) | 14.6 | 4 | ||
| QW256-020-F | 25.6(8S) | 29.2 | 2 | ||
| QW384-015-F | 38.4(12S) | 43.8 | 1.5 | ||
| QW512-010-F | 51.2(16S) | 58.4 | 1 | ||
| QW074-050-L | (Lithium) | 7.4(2S) | 8.4 | 5 | |
| QW148-030-L | 14.8(4S) | 16.8 | 3 | ||
| QW259-020-L | 25.9(7S) | 29.4 | 2 | ||
| QW370-015-L | 37(10S) | 42 | 1.5 | ||
| QW481-010-L | 48.1(13S) | 54.6 | 1 | ||
| QW060-050-S | (Lead Acid) | 6(0.5S) | 7.35 | 5 | |
| QW120-040-S | 12(1S) | 14.7 | 4 | ||
| QW240-020-S | 24(2S) | 29.4 | 2 | ||
| QW360-015-S | 36(3S) | 44.1 | 1.5 | ||
| QW480-010-S | 48(4S) | 58.8 | 1 | ||
| QW6-12-030-S | 6~12 | 7.35~14.7 | 3 | ||
| QW12-24-020-S | 12~24 | 14.7~29.4 | 2 | ||
