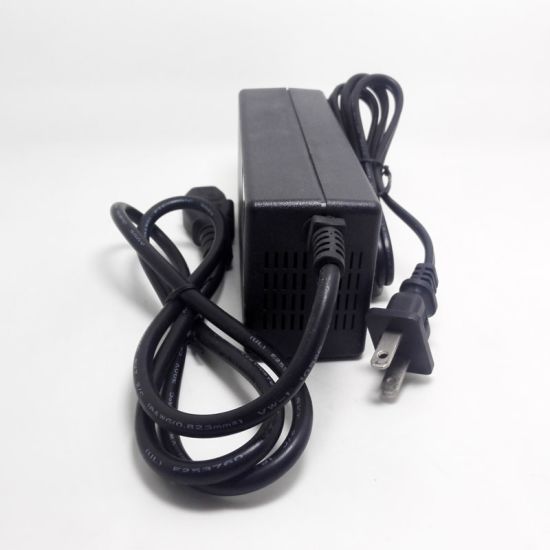

Chargers 4S 12V 12.8V 8a 9a 10a 150W Chargers Adapters DC 14.4V/14.6V 10a for LFP LiFePO4 LiFePO 4 Battery Pack

Model:QW128-100-F
Input voltage:100-240VAC 50/60Hz
Output voltage:14.6V
Output current:10a(Max)
Dimensions (mm): 152.5*63*45
Availability:
Quantity:
  • QW128-100-F

  • QUAWINTEC/OEM

  • 8504401990

  • Shenzhen, China

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • white box/polybags/at your request outer package:carton

  • 200PCS

  • 50000 Pieces/month

Quick Detail:

  Brand Name:QUAWIN

  Model Number:QW128-100-F

  Use:4S 12V/12.8V Lifepo4 battery pack

  Type:Electric

  Place of Origin:Guangdong China (Mainland)

  Battery charger:automatic battery charger 14.6V

  Color:Black

  Shell Material:Plastic Shell(ABS+PC)

  Input voltage:100-240VAC 50/60Hz

  Output voltage:14.6V

  Output current:10a(Max)

  Output power:146W

  Charge mode:CC—CV(Constant Current—Constant Voltage)

  Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized


Packaging & Delivery:

  30pcs/Carton
  Carton size: 415*380*270mm

  Delivery Detail:sample within 7 work days,15~25 days for bulk order


Specifications:
  4S 12V/12.8V Lifepo4 battery pack

Features:

  • Charging mode:CC—CV(Constant Current—Constant Voltage)

  • High efficiency and low power consumption

  • Plastic housing with Fan Cooling

  • Stabilized output and low noice

  • Efficiency(at 100% load): ≧85%

  • Operating temperature:-20℃ ~ 45℃

  • Storage temperature:-40℃ ~ 85℃

  • Operating humidity:5%~90%RH


Specification:
 • Input: 100-240VAC 50/60Hz
 • Output: DC 14.6V
 • Charging current: 10a(Max)
 • Dimensions (mm): 152.5*63*45mm
 • Weight: 500±5g(only body)

Safety protections:
 • Over Voltage protection
 • Short Circuit protection
 • Polarity error protection
 • Over power protection


LED Indicator:

  The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:

  • Charging:Red LED

  • Battery Full:Green LED

  • Error: RED Light Flashing


Call us to know more details datasheet.

Typical Product Model
Model

Input Voltage

(V)

Battery Voltage

(V)

Charging Voltage

(V)

Charging Current

(A)

QW064-100-F

LiFePO4 AC 100~264V 6.4(2S) 7.3 10

QW128-100-F

12.8(4S) 14.6 10

QW256-050-F

25.6(8S)

29.2

5

QW384-030-F

38.4(12S)

 43.8 3

QW512-025-F

 51.2(16S)  58.4 2.5

QW640-020-F

64(20S)

 73  2

QW768-015-F

 76.8(24S)

87.6

1.5

QW074-100-L

Lithium 7.4(2S) 8.4 10

QW111-100-L

11.1(3S) 12.6 10

QW148-090-L

14.8(4S) 16.8 9

QW185-070-L

18.5(5S) 21 7

QW222-060-L

22.2(6S) 25.2 6

QW259-050-L

25.9(7S)

29.4

5

QW296-040-L

29.6(8S)

33.6

4

QW333-040-L

33.3(9S)

37.8

4

QW370-035-L

 37(10S)  42 3.5

QW407-030-L

40.7(11S) 46.2 3

QW444-030-L

44.4(12S) 50.4 3
 QW481-025-L  48.1(13S)  54.6 2.5
QW518-025-L 51.8(14S) 58.8 2.5
QW555-020-L 55.5(15S) 63 2
QW592-020-L 59.2(16S) 67.2 2
QW629-020-L 62.9(17S) 71.4 2
QW666-020-L 66.6(18S) 75.6 2
QW703-015-L 70.3(19S) 79.8 1.5
QW740-015-L 74(20S) 84 1.5

QW060-100-S

Lead Acid 6(0.5S) 7.35 10
QW120-100-S 12(1S) 14.7 10

QW240-050-S

24(2S)

29.4 5

QW360-030-S

36(3S)

44.1

3

QW480-025-S

48(4S)

58.8

2.5

QW600-020-S

60(5S)

73.5

 2

QW720-015-S

72(6S)

88.2

1.5

150W details-1150W details-2150W details-3AC INPUT PLUGSmall connectorFactory Direct Sale 14.4V 14.6V 10A 150W Charger for 4s 12V 12.8V LiFePO4 Battery PackAgeing150W PACK-3production processFactory Direct Sale 14.4V 14.6V 10A 150W Charger for 4s 12V 12.8V LiFePO4 Battery PackFactory Direct Sale 14.4V 14.6V 10A 150W Charger for 4s 12V 12.8V LiFePO4 Battery PackFactory Direct Sale 14.4V 14.6V 10A 150W Charger for 4s 12V 12.8V LiFePO4 Battery PackFactory Direct Sale 14.4V 14.6V 10A 150W Charger for 4s 12V 12.8V LiFePO4 Battery Pack
