| Quantity: | |
|---|---|
Quick Detail:
Brand Name:QUAWIN/OEM

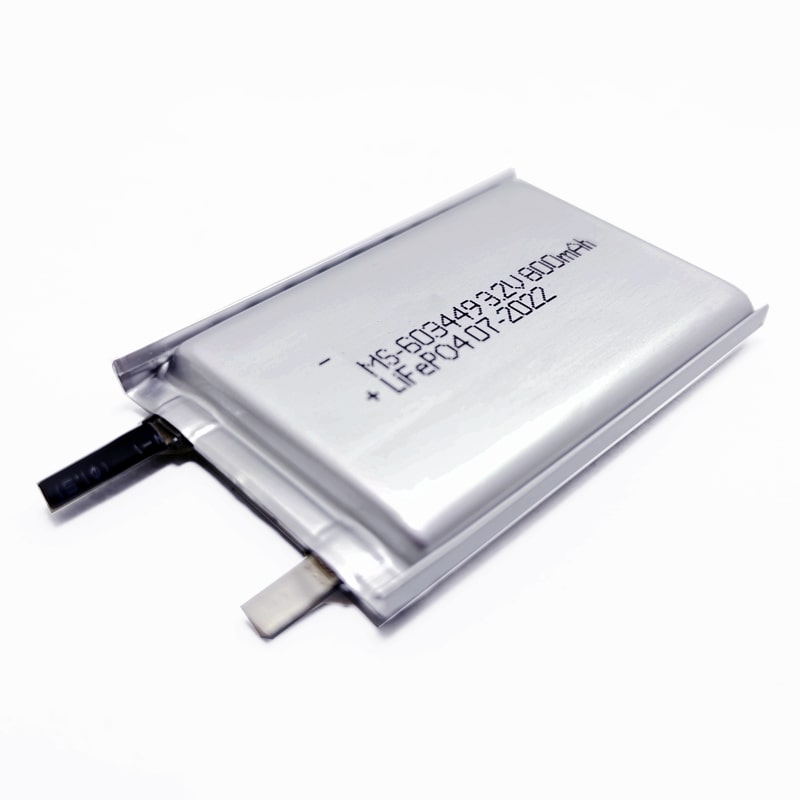

Model Number:LB032-0800-FP(603450)
Type:lifepo4,lifepo4 batterie,lifepo4 battery
Place of Origin:Guangdong China (Mainland)
Composed Type:Single Cell
Nominal Voltage:3.2V
Nominal Capacity:800mAh
Maximal Charging Current:0.8A(Adjust)
Constant Discharge Current:0.8A(Adjust)
Over Charger Protection Voltage(V):3.65V±0.03V
Over Discharge Protection Voltage(V):2.0V
Cell:Domestic 603449 603450 603550 soft pack Cell
Certificate:CE,ROHS,UN38.3 REACH
Size:T6*W34*L49mm
Weight:18±1g
Charging temperature(℃):0℃～45℃；32oF～113oF
Discharging temperature(℃):-20℃～60℃；-4oF～149oF
Storage temperature(℃):-20℃～45℃；-4oF～113oF
Protection Temperature(℃):70℃±5℃
Cycle life:2000~3000 times
Warranty:12 months
Packing:Blister packaging / standard export carton/customized
Packaging & Delivery :
. Netural labels,Polybag,PVC,Color box,Customised package
. Netrual packing/Custom box with less than 10kg
. Delivery Detail:sample within 7 work days,15~35 days for bulk order
| Recommended Charger: | QW032-005-F |
| Charger input: | 100V~240VAC 50-60H |
| Charging mode: | Constant voltage constant current (CC/CV) |
| Charging voltage: | 3.65V |
| Charging current: | 0.5±0.1A |
| Charging time: | 2-3 hrs(standard) |
| Charger working instruction: | Be in charging the red light,be full of charging the green light； |
Product Advantages:
1). Green product
2). Long standby time
3). One year warranty
4). Excellent safety performance
5). Excellent storage performance and low self-discharge rate
6). Short circuit testing passed
7). Overcharge testing passed
8). Over discharge testing passed
9). 150ºC thermal shock test passed
10).1.2m drop testing passed
Spotlight:
1). Provide both single cells and battery packs
2). 100% inspection before delivery
3). Inspects inner resistance,discharge platform and self-discharge
4). manufacturer of 603449 603450 603550 lifepo4 battery etc.
5). tablished quality control systems under ISO9001
Shipping terms:
1).Samples checking: sending by Express ( DHL/UPS/FEDEX/TNT,by air)
2).Bulk production: sending out by cargo shipping / air freight / Express(DHL/UPS/FedEx/TNT),or we can accept other shipping terms according to your requirements.
3).We are not responsible for any accidents, delays or other issues that are caused by the shipping.
Safety Precaution:
1).Do not throw battery into water or make it wet;
2).Keep the battery away from heat source(like fire or heater);
3).Do not throw the battery into fire or heat the battery;
4).Forbid to hammer to trample the battery;
5).Forbid disassembling the battery in anyway
Call us to know more details datasheet.
