Availability: | |
---|---|
Quantity: | |
QW032-020-F
QUAWINTEC/OEM
8504401990
Shenzhen, China
L/C, T/T, D/P, Western Union, Paypal, Money Gram
white box/polybags/at your request outer package:carton
500PCS
50000 Pieces

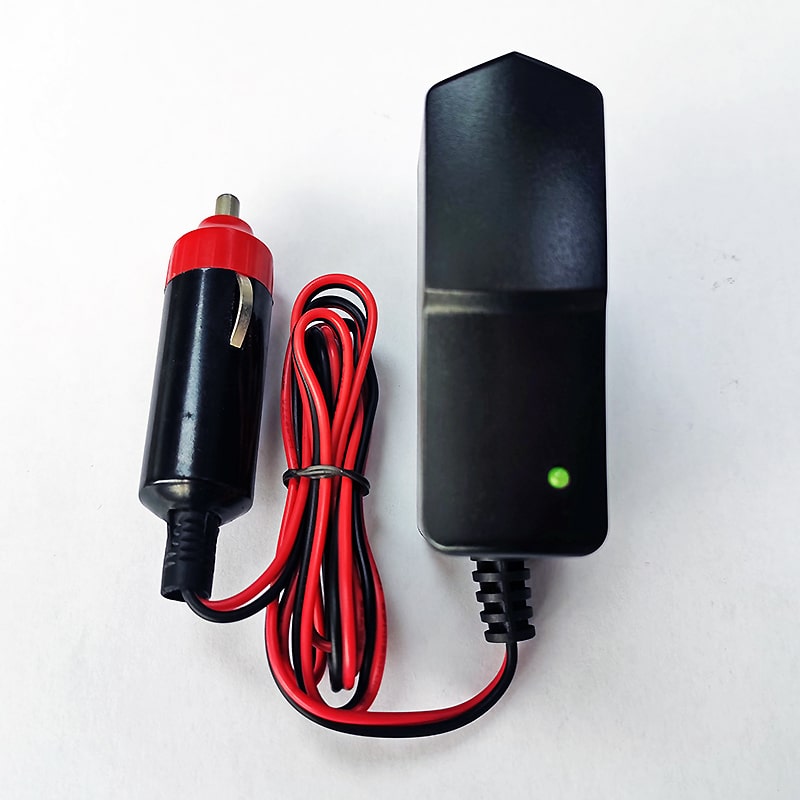

Brand Name:QUAWIN
Model Number:QW032-020-F
Use:1S 3V/3.2V Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 3.65V
Color:Black
Shell Material:Plastic Shell(ABS+PC)
Input voltage:100-240VAC 50/60Hz
Output voltage:3.65V
Output current:2a(Max)
Output power:7.3W
Charge mode:CC-CV(Constant Current-Constant Voltage)
Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,Anderson connector,customization
Packaging & Delivery:
Specifications:
1S 3V/3.2V Lifepo4 battery pack
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=85%
• Operating temperature:-20ºC ~ 45ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
Specification:
• Input: 100-240VAC 50/60Hz
• Output: DC 3.65V
• Charging current: 2a(Max)
• Dimensions (mm): 74.5*41.5*28.2mm
• Weight: 80±5g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:Red LED
• Battery Full:Green LED
Call us to know more details datasheet.
Typical Product Model | |||||
Model | Input Voltage (V) | Battery Voltage | Charging Voltage | Charging Current | |
QW032-020-F | LiFePO4 | AC 100~264V | 3.2(1S) | 3.65 | 2 |
QW064-020-F | 6.4(2S) | 7.3 | 2 | ||
QW128-010-F | 12.8(4S) | 14.6 | 1 | ||
QW256-005-F | 25.6(8S) | 29.2 | 0.5 | ||
QW037-020-L | Lithium | 3.7(1S) | 4.2 | 2 | |
QW074-010-L | 7.4(2S) | 8.4 | 1 | ||
QW148-005-L | 14.8(4S) | 16.8 | 0.5 | ||
QW259-005-L | 25.9(7S) | 29.4 | 0.5 | ||
QW060-020-S | Lead Acid | 6(0.5S) | 7.35 | 2 | |
QW120-010-S | 12(1S) | 14.7 | 1 | ||
QW240-005-S | 24(2S) | 29.4 | 0.5 | ||
QW2.4-4.8-010-N | NiMh/NiCD | 2.4-4.8(2-4S) | 3-6 | 1 | |
QW3.6-7.2-006-N | 3.6-7.2(3-6S) | 4.5-9 | 0.6 | ||
QW4.8-9.6-005-N | 4.8-9.6(4-8S) | 6-12 | 0.5 | ||
QW6-12-003-N | 6-12(5-10S) | 7.5-15 | 0.3 | ||
QW7.2-14.4-003-N | 7.2-14.4(6-12S) | 9-18 | 0.3 | ||
QW9.6-19.2-002-N | 9.6-19.2(8-16S) | 12-24 | 0.2 |
