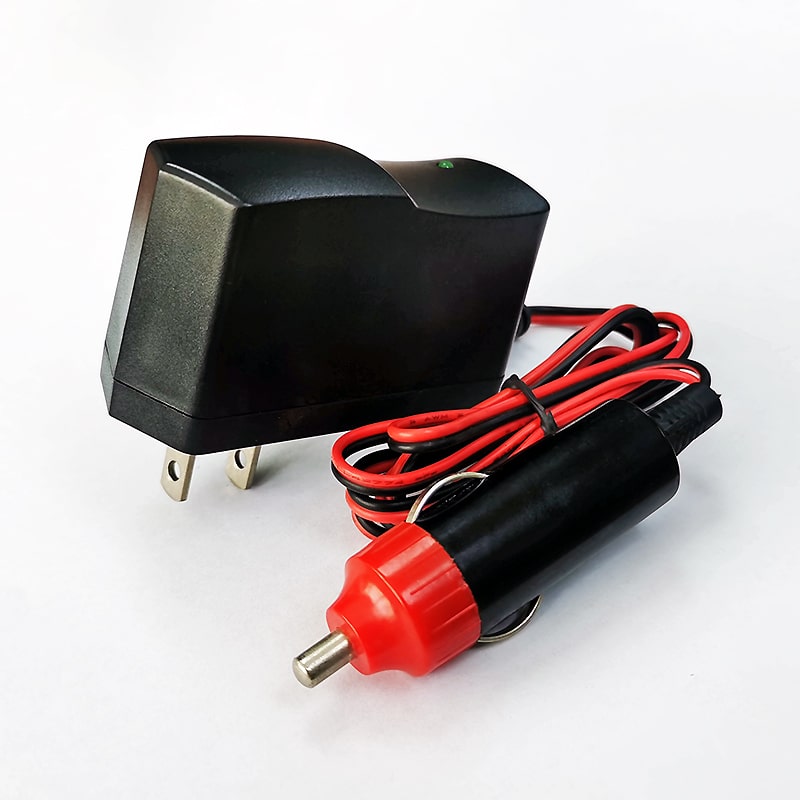

AU EU UK US 15W Wall Charger 16.8V 0.5a Charger Adapter for 4S 12V 14.4V 14.8V Led headlights lithium ion batteries battery Pack

Model:QW148-005-L
Input voltage:100-240VAC 50/60Hz
Output voltage:16.8V
Output current:0.5a(Max)
Dimensions (mm): 74.5*41.5*28.2

Availability:

Quantity:



Inquire Add to Basket

Model:
QW148-005-L
Brand:
QUAWINTEC/OEM
Code:
8504401990
Port:
Shenzhen, China
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Transport Package:
white box/polybags/at your request outer package:carton
Min. Order:
500PCS
production:
500000 Pieces/month

Product Description

Quick Detail:
Brand Name:QUAWIN
Model Number:QW148-005-L
Use:4S 12V 14.4V 14.8V Li-ion or Li-polymer battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 16.8V
Color:Black
Shell Material:Plastic Shell(ABS+PC)
Input voltage:100-240VAC 50/60Hz
Output voltage:16.8V
Output current:0.5a(Max)
Output power:8.4W
Charge mode:CC-CV(Constant Current-Constant Voltage)
Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,Anderson connector,customization

Packaging & Delivery:

150pcs/Carton
Carton size:618*378*273mm
Delivery Detail:sample within 7 work days,15~25 days for bulk order

Specifications:
4S 12V 14.4V 14.8V Li-ion or Lithium Polymer battery PACK

Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=85%
• Operating temperature:-20ºC ~ 45ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH

Specification:
• Input: 100-240VAC 50/60Hz
• Output: DC 16.8V
• Charging current: 0.5a(Max)
• Dimensions (mm): 74.5*41.5*28.2mm
• Weight: 80g(only body)

Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection

LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:Red LED
• Battery Full:Green LED

Typical Product Model
Model		Input Voltage(V)	Battery Voltage(V)	Charging Voltage(V)	Charging Current(A)
QW032-020-F	LiFePO4	AC 100～264V	3.2(1S)	3.65	2
QW064-020-F			6.4(2S)	7.3	2
QW128-010-F			12.8(4S)	14.6	1
QW256-005-F			25.6(8S)	29.2	0.5
QW037-020-L	Lithium ion		3.7(1S)	4.2	2
QW074-010-L			7.4(2S)	8.4	1
QW148-005-L			14.8(4S)	16.8	0.5
QW259-005-L			25.9(7S)	29.4	0.5
QW060-020-S	Lead Acid		6(0.5S)	7.35	2
QW120-010-S			12(1S)	14.7	1
QW240-005-S			24(2S)	29.4	0.5
QW2.4-4.8-010-N	NiMh/NiCD		2.4-4.8(2-4S)	3-6	1
QW3.6-7.2-006-N			3.6-7.2(3-6S)	4.5-9	0.6
QW4.8-9.6-005-N			4.8-9.6(4-8S)	6-12	0.5
QW6-12-003-N			6-12(5-10S)	7.5-15	0.3
QW7.2-14.4-003-N			7.2-14.4(6-12S)	9-18	0.3
QW9.6-19.2-002-N			9.6-19.2(8-16S)	12-24	0.2
