| Quantity: | |
|---|---|
QW640-300-FM
QUAWINTEC/OEM
8504401990
Shenzhen, China
L/C, T/T, D/P, Western Union, Paypal, Money Gram
white box/polybags/at your request outer package:carton
100PCS
50000 Pieces

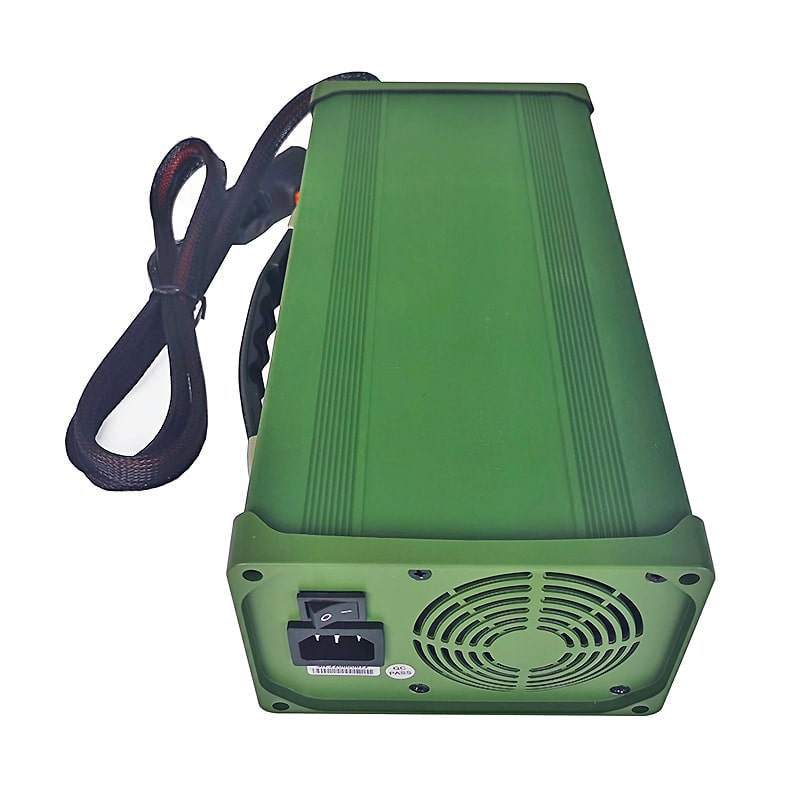

Brand Name:QUAWIN
Model Number:QW640-300-FM
Use:20S 60V/64V Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 73V
Color:Black/Army green
Shell Material:Aluminium alloy
Additional functionality:LED display
Input voltage:AC 180～264V 50/60Hz
Output voltage:73V
Output current:30a(Max)
Output power:2190W
Electromagnetic compatibility: meets the requirements of GJB
Reliability: MTBF≧3000H
Charge mode:CC—CV(Constant Current—Constant Voltage)
Optional features:The battery pack with super capacitor can be charged from 0V,
Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,PP75A Plug,customization
Packaging & Delivery :
Specifications:
20S 60V/64V Lifepo4 battery pack
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=90%
• Operating temperature:-40ºC ~ 70ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
Specification:
• Input: AC 180～264V 50/60Hz With PFC
• Output: DC 73V
• Charging current: 30a(Max)
• Dimensions (mm): 312*140*90
• Weight: 4000g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
LED Indicator:
Waiting Mode:LED(GREEN) ON
Charging Mode:LED(BLUE) FLASH
Full Charged Mode:LED(GREEN) ON
Charge Error Mode:LED(RED) FLASH
Call us to know more details datasheet.
| (A Typical Model) | |||||
| Model | Input Voltage(V) | Battery Voltage(V) | Charging Voltage(V) | Charging Current(A) | |
| QW128-700-FM | (LiFePO4) | AC 100~264V | 12.8(4S) | 14.6 | 70 |
| QW256-700-FM | 25.6(8S) | 29.2 | 70 | ||
| QW384-500-FM | 38.4(12S) | 43.8 | 50 | ||
| QW512-350-FM | 51.2(16S) | 58.4 | 35 | ||
| QW640-300-FM | 64(20S) | 73 | 30 | ||
| QW768-250-FM | 76.8(24S) | 87.6 | 25 | ||
| QW148-700-LM | (Lithium) | 14.8(4S) | 16.8 | 70 | |
| QW259-700-LM | 25.9(7S) | 29.4 | 70 | ||
| QW370-500-LM | 37(10S) | 42 | 50 | ||
| QW481-400-LM | 48.1(13S) | 54.6 | 40 | ||
| QW629-300-LM | 62.9(17S) | 71.4 | 30 | ||
| QW740-250-LM | 74(20S) | 84 | 25 | ||
| QW120-700-SM | (Lead Acid) | 12(1S) | 14.7 | 70 | |
| QW240-700-SM | 24(2S) | 29.4 | 70 | ||
| QW360-500-SM | 36(3S) | 44.1 | 50 | ||
| QW480-350-SM | 48(4S) | 58.8 | 35 | ||
| QW600-300-SM | 60(5S) | 73.5 | 30 | ||
| QW720-250-SM | 72(6S) | 88.2 | 25 | ||
Brand Name:QUAWIN
Model Number:QW640-300-FM
Use:20S 60V/64V Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 73V
Color:Black/Army green
Shell Material:Aluminium alloy
Additional functionality:LED display
Input voltage:AC 180～264V 50/60Hz
Output voltage:73V
Output current:30a(Max)
Output power:2190W
Electromagnetic compatibility: meets the requirements of GJB
Reliability: MTBF≧3000H
Charge mode:CC—CV(Constant Current—Constant Voltage)
Optional features:The battery pack with super capacitor can be charged from 0V,
Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,PP75A Plug,customization
Packaging & Delivery :
Specifications:
20S 60V/64V Lifepo4 battery pack
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=90%
• Operating temperature:-40ºC ~ 70ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
Specification:
• Input: AC 180～264V 50/60Hz With PFC
• Output: DC 73V
• Charging current: 30a(Max)
• Dimensions (mm): 312*140*90
• Weight: 4000g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
LED Indicator:
Waiting Mode:LED(GREEN) ON
Charging Mode:LED(BLUE) FLASH
Full Charged Mode:LED(GREEN) ON
Charge Error Mode:LED(RED) FLASH
Call us to know more details datasheet.
