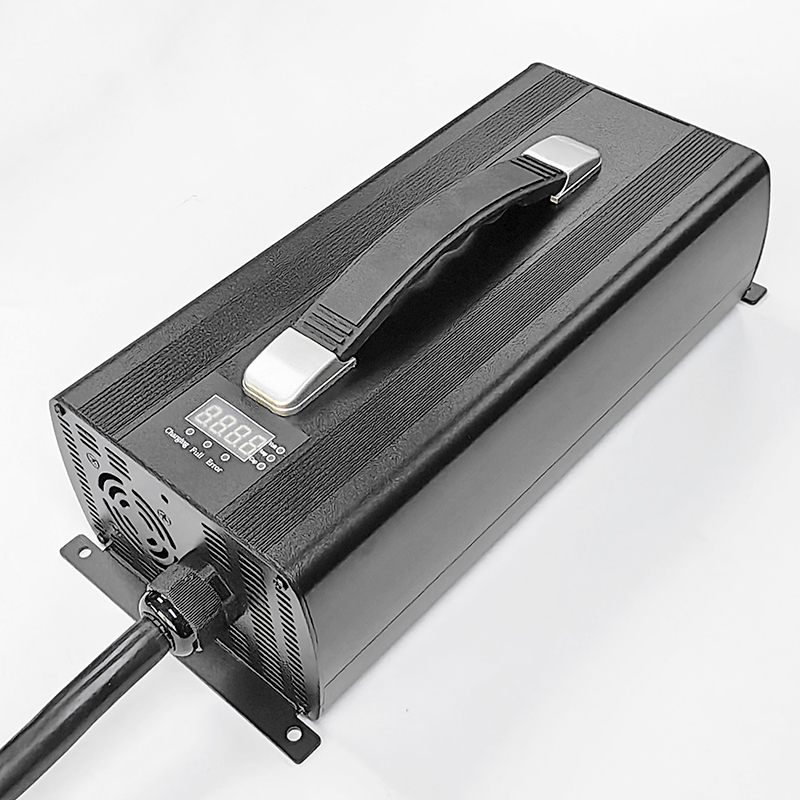

AC 220V 2200W Smart Charger 61.2V 62.05V 30a 35a LiFePO4 Charger For 17S 51V 54.4V Electric Tricycles Electric Cars Battery Pack

Share to:

AC 220V 2200W Smart Charger 61.2V 62.05V 30a 35a LiFePO4 Charger For 17S 51V 54.4V Electric Tricycles Electric Cars Battery Pack

Model:QW544-350-F
Input voltage:AC 180～264V 50/60Hz
Output voltage:62.05V
Output current:35a(Max)
Dimensions (mm): 314*138*86

Availability:

Quantity:



Inquire Add to Basket

Model:
QW544-350-F
Brand:
QUAWINTEC/OEM
Code:
8504401990
Port:
Shenzhen, China
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Transport Package:
Corrugated box,EPE pearl cotton/according to your requirements
Min. Order:
100PCS
production:
50000 Pieces

Product Description

Quick Detail:

Brand Name:QUAWIN

Model Number:QW544-350-F

Use:17S 51V/54.4V Lifepo4 battery pack

Type:Electric

Place of Origin:Guangdong China (Mainland)

Battery charger:automatic battery charger 62.05V

Color:Black

Shell Material:Aluminium alloy

Additional functionality:LED display

Input voltage:AC 180～264V 50/60Hz

Output voltage:62.05V

Output current:35a(Max)

Output power:2,171.75W

Charge mode:CC—CV(Constant Current—Constant Voltage)

Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

4pcs/Carton
Carton size: 620*490*400mm
Delivery Detail:sample within 10 work days,15~25 days for bulk order

Specifications:
17S 51V/54.4V Lifepo4 battery pack

Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=90%
• Operating temperature:-20ºC ~ 45ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH

Specification:
• Input: AC180～264V 50/60Hz
• Output: DC 62.05V
• Charging current: 35a(Max)
• Dimensions (mm): 314*138*86
• Weight: 3800±50g(only body)

Safety protections:

• Over current protection

• Over voltage protection

• Short circuit protection

• Reverse polarity protection

• Anti-revert current protection

• Anti-spark protection

LED Indicator:
Waiting Mode:LED(GREEN) ON
Charging Mode:LED(BLUE) FLASH
Full Charged Mode:LED(GREEN) ON
Charge Error Mode:LED(RED) FLASH

Typical Product Model
Model		Input Voltage(V)	Battery Voltage(V)	Charging Voltage(V)	Charging Current(A)
QW128-700-F	LiFePO4	AC 180~264V	12.8(4S)	14.6	70
QW256-700-F			25.6(8S)	29.2	70
QW384-500-F			38.4(12S)	43.8	50
QW512-350-F			51.2(16S)	58.4	35
QW640-300-F			64(20S)	73	30
QW768-250-F			76.8(24S)	87.6	25
QW148-700-L	Lithium ion		14.8(4S)	16.8	70
QW259-700-L			25.9(7S)	29.4	70
QW370-500-L			37(10S)	42	50
QW481-400-L			48.1(13S)	54.6	40
QW629-300-L			62.9(17S)	71.4	30
QW740-250-L			74(20S)	84	25
QW120-700-S	Lead Acid		12(1S)	14.7	70
QW240-700-S			24(2S)	29.4	70
QW360-500-S			36(3S)	44.1	50
QW480-350-S			48(4S)	58.8	35
QW600-300-S			60(5S)	73.5	30
QW720-150-S			72(6S)	88.2	25
