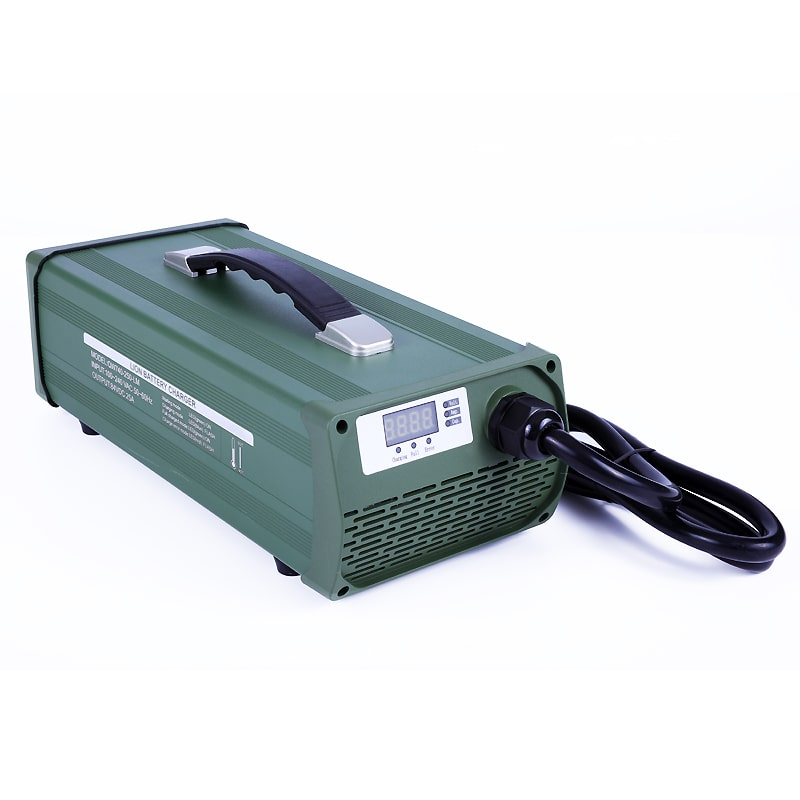

AC 220V 1500W Super Charger 24V 25.2V 25.55V 40a 45a 50a 55a 59a Battery Charger For 7S 21V 22.4V Robots Drones LiFePO4 Batteries Pack

Brand Name:QUAWIN

Model Number:QW224-590-FM

Use:7S 21V/22.4V Lifepo4 battery pack

Type:Electric

Place of Origin:Guangdong China (Mainland)

Battery charger:automatic battery charger 25.55V

Color:Black/Army green

Shell Material:Aluminium alloy

Additional functionality:LED display

Input voltage:AC 180～264V 50/60Hz With PFC

Output voltage:25.55V

Output current:59a(Max)

Output power:1,507.45W

Electromagnetic compatibility: meets the requirements of GJB

Reliability: MTBF≧3000H

Charge mode:CC—CV(Constant Current—Constant Voltage)

Optional features:The battery pack with super capacitor can be charged from 0V,

Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

Specifications:
 7S 21V/22.4V Lifepo4 battery pack

Features:
 • Charging mode:CC-CV(Constant Current-Constant Voltage)
 • High efficiency and low power consumption
 • Stabilized output and low noice
 • Efficiency(at 100% load): >=90%
 • Operating temperature:-40ºC ~ 70ºC
 • Storage temperature:-40ºC ~ 85ºC
 • Operating humidity:5%~90%RH

Specification:
 • Input: AC 180～264V 50/60Hz With PFC
 • Output: DC 25.55V
 • Charging current: 59a(Max)
 • Dimensions (mm): 314*138*86
 • Weight: 3700±50g(only body)

Safety protections:

• Over current protection

• Over voltage protection

• Short circuit protection

• Reverse polarity protection

• Anti-revert current protection

• Anti-spark protection

LED Indicator:

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:

Waiting Mode:LED(GREEN)  ON

Charging Mode:LED(BLUE)   FLASH

Full Charged Mode:LED(GREEN)  ON

Charge Error Mode:LED(RED)   FLASH
