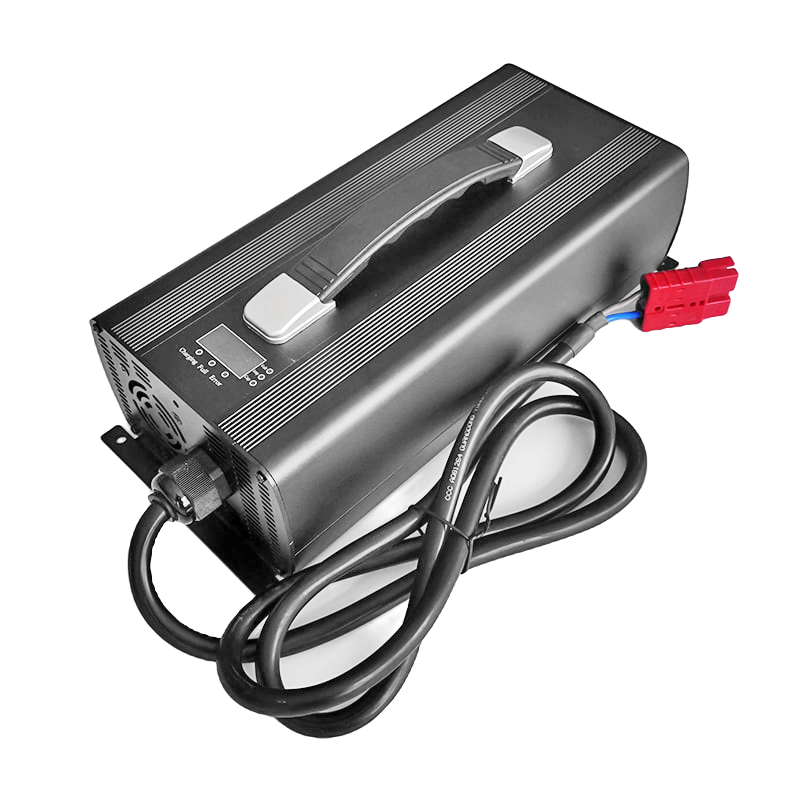

AC 220V 1500W Smart Charger 79.2V 80.3V 15a 18a CANBus Chargers for 22S 66V 70.4V LiFePO4 Energy Storage Battery Pack

Quick Detail:

  Brand Name:QUAWIN

  Model Number:QW704-180-FC

  Use:22S 66V 70.4V Lifepo4 battery pack

  Type:Electric

  Place of Origin:Guangdong China (Mainland)

  Battery charger:automatic battery charger 80.3V

  Color:Black

  Shell Material:Aluminium alloy

  Additional functionality:LED display

  Additional features:CANBUS communication protocol

  Input voltage:AC 180～264V 50/60Hz With PFC

  Output voltage:80.3V

  Output current:18a(Max)

  Output power:1,445.4W

  Charge mode:CC—CV(Constant Current—Constant Voltage)

  Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

  Inner package:Corrugated box,EPE pearl cotton/according to your requirements

  Outer packing: export carton

  Delivery Detail:sample within 7 work days,25-35 days for bulk order

Specifications:

  22S 66V 70.4V Lifepo4 battery pack

Features:

  • Charging mode:CC—CV(Constant Current—Constant Voltage)
  • High efficiency and low power consumption
  • Glue pouring process and metal shell cooling design
  • Efficiency(at 100% load): >=90%
  • Operating temperature:-20℃ ~ 45℃
  • Storage temperature:-40℃ ~ 85℃
  • Operating humidity:5%~90%RH

Specification:

  • Input: AC 180～264V 50/60Hz With PFC
  • Output: DC 80.3V
  • Charging current: 18a(Max)
  • Dimensions (mm):314*138*86
  • Weight: 3700±50g(only body)

Safety protections:

  • Over Voltage protection
  • Short Circuit protection
  • Polarity error protection
  • Over power protection
  • Overheating protection

LED Indicator:

  Waiting Mode:LED(GREEN)  ON
  Charging Mode:LED(BLUE)   FLASH
  Full Charged Mode:LED(GREEN)  ON
  Charge Error Mode:LED(RED)   FLASH
