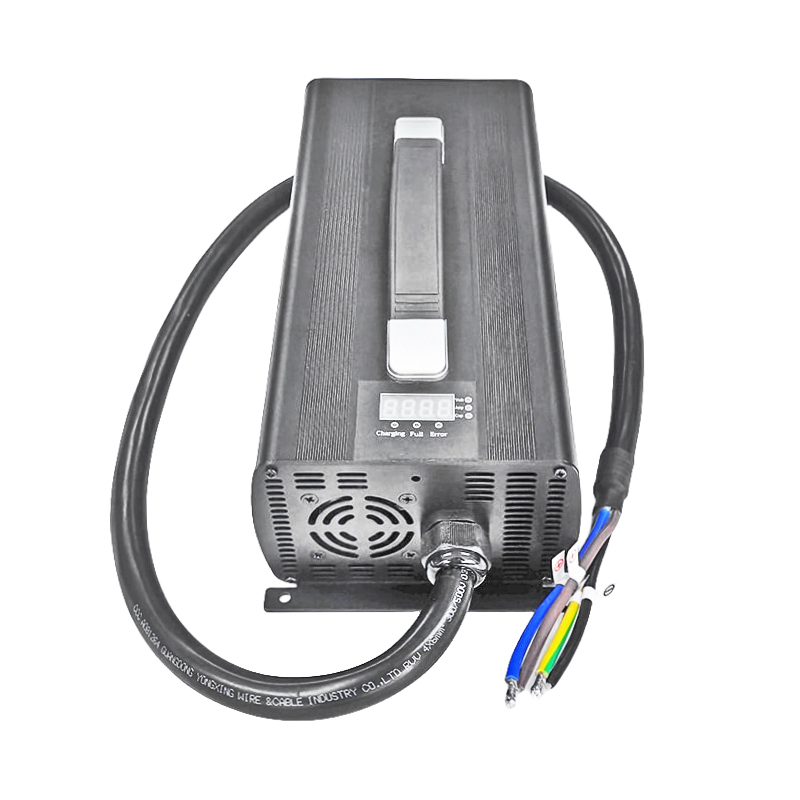

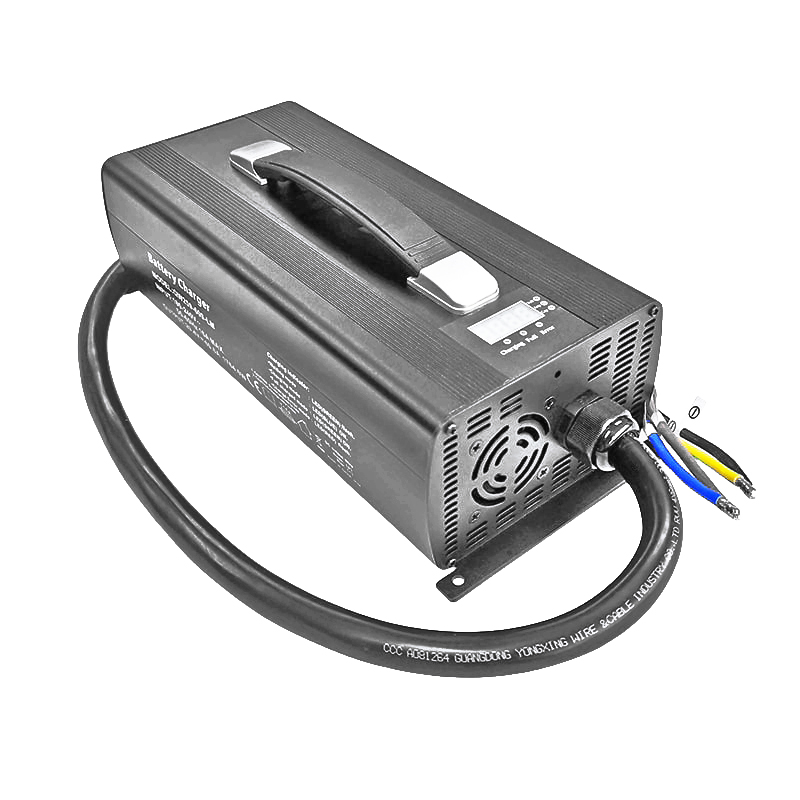

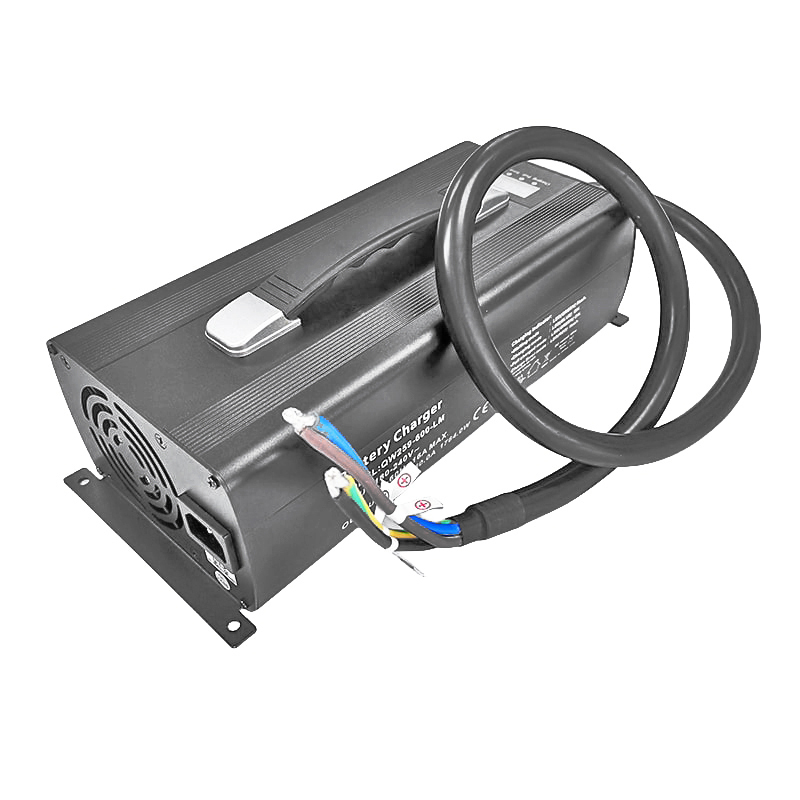

AC 220V 1500W LiFePO4 Battery Charger 28.8V 29.2V 35a 40a 45a 50a Fast Charger For 8S 24V 25.6V Electric Forklift Lawn Mowers Battery Pack

Brand Name:QUAWIN

Model Number:QW256-500-F

Use:8S 24V/25.6V Lifepo4 battery pack

Type:Electric

Place of Origin:Guangdong China (Mainland)

Battery charger:automatic battery charger 29.2V

Color:Black/Army green

Shell Material:Aluminium alloy

Additional functionality:LED display

Input voltage:AC 180～264V 50/60Hz With PFC

Output voltage:29.2V

Output current:50a(Max)

Output power:1,460W

Charge mode:CC—CV(Constant Current—Constant Voltage)

Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,Anderson connector,customization

Packaging & Delivery:

Specifications:

8S 24V/25.6V Lifepo4 battery pack

Features:
 • Charging mode:CC-CV(Constant Current-Constant Voltage)
 • High efficiency and low power consumption
 • Stabilized output and low noice
 • Efficiency(at 100% load): >=90%
 • Operating temperature:-20ºC ~ 45ºC
 • Storage temperature:-40ºC ~ 85ºC
 • Operating humidity:5%~90%RH

Specification:
 • Input: AC180～264V 50/60Hz
 • Output: DC 29.2V
 • Charging current: 50a(Max)
 • Dimensions (mm): 314*138*86
 • Weight:3600±50g(only body)

Safety protections:
 • Over Voltage protection
 • Short Circuit protection
 • Polarity error protection
 • Over power protection

LED Indicator:
 Waiting Mode:LED(GREEN)  ON
 Charging Mode:LED(BLUE)   FLASH
 Full Charged Mode:LED(GREEN)  ON
 Charge Error Mode:LED(RED)   FLASH

Typical Product Model
Model		Input Voltage(V)	Battery Voltage(V)	Charging Voltage(V)	Charging Current(A)
QW128-600-F	LiFePO4	AC 180~264V	12.8(4S)	14.6	60
QW256-500-F			25.6(8S)	29.2	50
QW384-300-F			38.4(12S)	43.8	30
QW512-250-F			51.2(16S)	58.4	25
QW640-200-F			64(20S)	73	20
QW768-150-F			76.8(24S)	87.6	15
QW148-600-L	Lithium		14.8(4S)	16.8	60
QW259-500-L			25.9(7S)	29.4	50
QW370-300-L			37(10S)	42	30
QW481-250-L			48.1(13S)	54.6	25
QW629-200-L			62.9(17S)	71.4	20
QW740-150-L			74(20S)	84	15
QW120-600-S	Lead Acid		12(1S)	14.7	60
QW240-500-S			24(2S)	29.4	50
QW360-300-S			36(3S)	44.1	30
QW480-250-S			48(4S)	58.8	25
QW600-200-S			60(5S)	73.5	20
QW720-150-S			72(6S)	88.2	15
