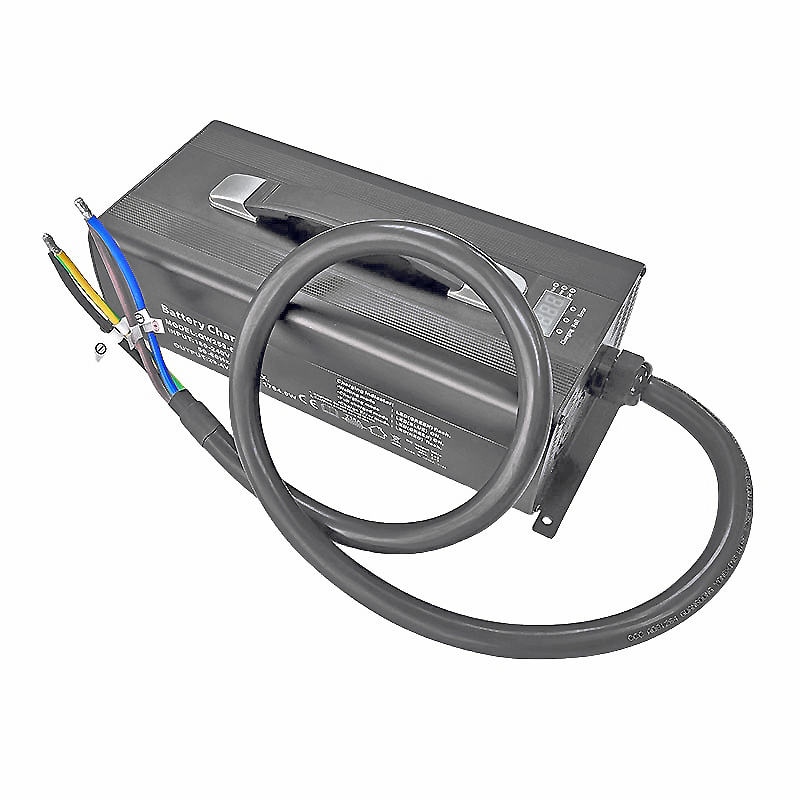

AC 220V 12V 50a 55a 60a 1500W Car Charger for AGM VRLA GEL Lead Acid Batteries Electric Cars Solar Energy System Battery Charger

Quick Detail:

  Brand Name:QUAWIN

  Model Number:QW120-600-S

  Use:12V Lead-Acid Battery

  Type:Electric

  Place of Origin:Guangdong China (Mainland)

  Battery charger:automatic battery charger 14.7V

  Color:Black/Army green

  Shell Material:Aluminium alloy

  Additional functionality:LED display

  Input voltage:AC 180～264V 50/60Hz With PFC

  Output voltage:14.7V

  Output current:60a

  Output power:882W

  Efficiency:≧90%

  Shock & Vibration:SAEJ1378 Standard

  Charge mode:CC---CV---Float Charge

  Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

Specifications:
  Portable fast SLA /AGM /VRLA /GEL charger 12V Lead-acid Battery charger

Features:
 • Fully auto CC +CV(H)+CV(L) charging process,with MCU controller
 • Constant big charging current for faster charging;
 • Automatically charging ending with Cut-Off output;
 • Metal case with Fan Cooling
 • It can charge any 12V SLA/VRLA/GEL/AGM battery with capacity 240-480Ah

Specification:

  • Input: AC 180～264V 50/60Hz
  • Output: DC 14.7V
  • Charging current: 60a(Max)
  • Dimensions (mm): 314*138*86
  • Weight: 3600±50g(only body)

Safety protections:

  • Over current protection

  • Over voltage protection

  • Short circuit protection

  • Reverse polarity protection

  • Anti-revert current protection

  • Anti-spark protection

LED Indicator:

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:

  Waiting Mode:LED(GREEN)  ON

  Charging Mode:LED(BLUE)   FLASH

  Full Charged Mode:LED(GREEN)  ON

  Charge Error Mode:LED(RED)   FLASH

Typical Product Model
Model		Input Voltage(V)	Battery Voltage(V)	Charging Voltage(V)	Charging Current(A)
QW128-600-F	LiFePO4	AC 180~264V	12.8(4S)	14.6	60
QW256-500-F			25.6(8S)	29.2	50
QW384-300-F			38.4(12S)	43.8	30
QW512-250-F			51.2(16S)	58.4	25
QW640-200-F			64(20S)	73	20
QW768-150-F			76.8(24S)	87.6	15
QW111-600-L	Lithium		11.1(3S)	12.6	60
QW148-600-L			14.8(4S)	16.8	60
QW259-500-L			25.9(7S)	29.4	50
QW370-300-L			37(10S)	42	30
QW481-250-L			48.1(13S)	54.6	25
QW629-200-L			62.9(17S)	71.4	20
QW740-150-L			74(20S)	84	15
QW120-600-S	Lead Acid		12(1S)	14.7	60
QW240-500-S			24(2S)	29.4	50
QW360-300-S			36(3S)	44.1	30
QW480-250-S			48(4S)	58.8	25
QW600-200-S			60(5S)	73.5	20
QW720-150-S			72(6S)	88.2	15
