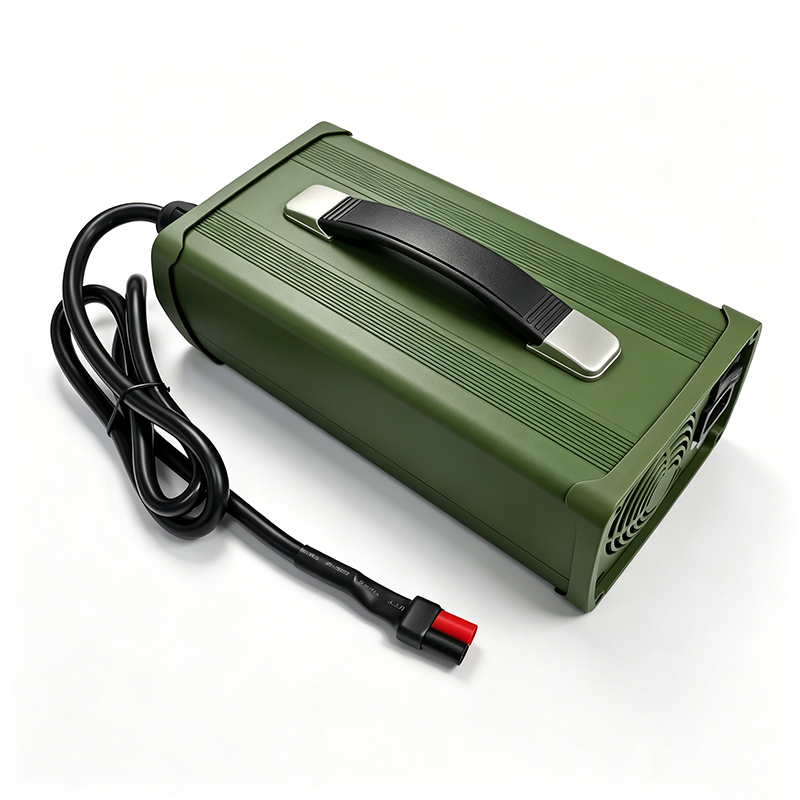

900W Super charger 21V 30a 35a 40a 43a Battery Charger for 5S 18V 18.5V energy storage battery Lithium ion batteries Pack

Quick Detail:
  Brand Name:QUAWIN
  Model Number:QW185-430-LM
  Use:5S 18V 18.5V ithium ion batteries or Lithium polymer battery pack
  Type:Electric
  Place of Origin:Guangdong China (Mainland)
  Battery charger:automatic battery charger 21V
  Color:Black/Army green
  Shell Material:Aluminium alloy
  Additional functionality:LED display
  Output voltage:21V
  Output current:43a(Max)
  Output power:903W
  Special Process: Spray Three Proof Paint
  Electromagnetic compatibility: meets the requirements of GJB
  Reliability: MTBF≧3000H
  Charge mode:CC—CV(Constant Current—Constant Voltage)
  Optional features:The battery pack with super capacitor can be charged from 0V,
  Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

Specifications:
  5S 18V 18.5V Li-ion or Lithium Polymer battery PACK

Features:
  • Charging mode:CC—CV(Constant Current—Constant Voltage)
  • High efficiency and low power consumption
  • Stabilized output and low noice
  • Efficiency(at 100% load): ≧90%
  • Operating temperature:-40℃ ~ 65℃
  • Storage temperature:-40℃ ~ 85℃
  • Operating humidity:5%~90%RH
  • It can be used in harsh environmental conditions, with electromagnetic capacitance, high precision of voltage regulation, rain proof, low temperature resistance and corrosion resistance.

Specification:
  • Input: 100-240VAC 50/60Hz with PFC
  • Output: DC 21V
  • Charging current: 43a(Max)
  • Dimensions (mm): 285*140*90
  • Weight: 2900±50g(only body)

Safety protections:
  • Over current protection
  • Over voltage protection
  • Short circuit protection
  • Reverse polarity protection
  • Anti-revert current protection
  • Anti-spark protection

LED Indicator:
  Waiting Mode:LED(GREEN)  ON
  Charging Mode:LED(BLUE)   FLASH
  Full Charged Mode:LED(GREEN)  ON
  Charge Error Mode:LED(RED)   FLASH

Typical Product Model
Model		Input Voltage(V)	Battery Voltage(V)	Charging Voltage(V)	Charging Current(A)
QW128-500-FM	LiFePO4	AC 100~264V	12.8(4S)	14.6	50
QW256-300-FM			25.6(8S)	29.2	30
QW384-200-FM			38.4(12S)	43.8	20
QW512-150-FM			51.2(16S)	58.4	15
QW640-120-FM			64(20S)	73	12
QW768-100-FM			76.8(24S)	87.6	10
QW148-500-LM	Lithium ion		14.8(4S)	16.8	50
QW259-300-LM			25.9(7S)	29.4	30
QW370-200-LM			37(10S)	42	20
QW481-150-LM			48.1(13S)	54.6	15
QW629-120-LM			62.9(17S)	71.4	12
QW740-100-LM			74(20S)	84	10
QW120-500-SM	Lead Acid		12(1S)	14.7	50
QW240-300-SM			24(2S)	29.4	30
QW360-200-SM			36(3S)	44.1	20
QW480-150-SM			48(4S)	58.8	15
QW600-120-SM			60(5S)	73.5	12
QW720-100-SM			72(6S)	88.2	10
