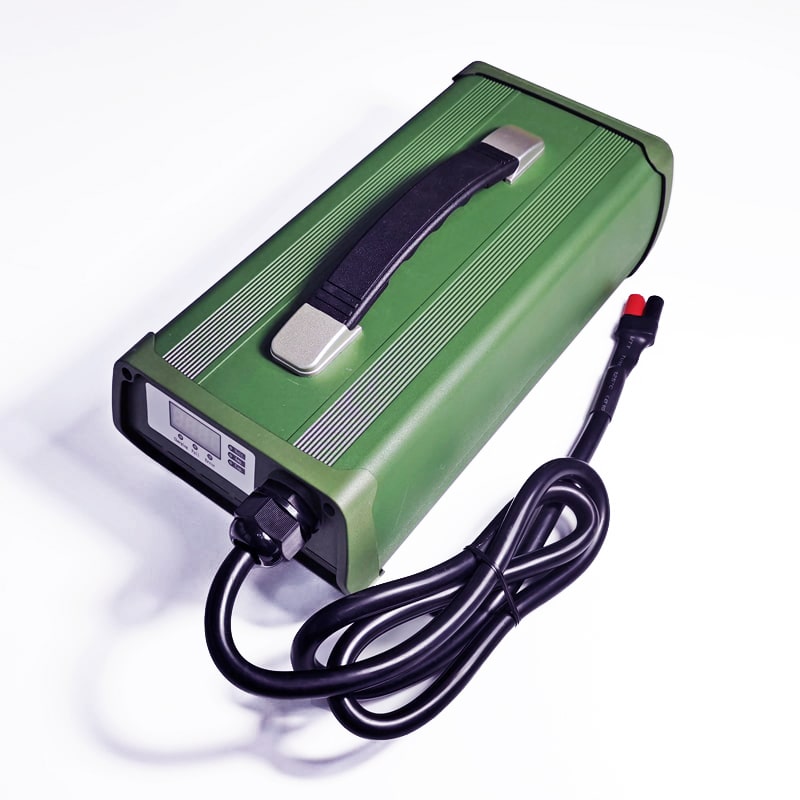

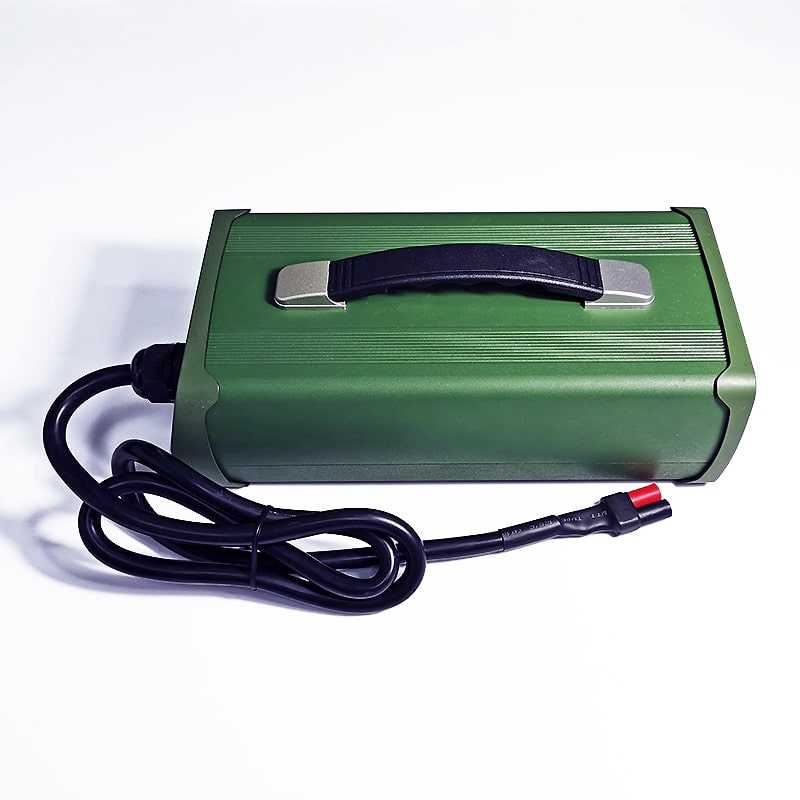

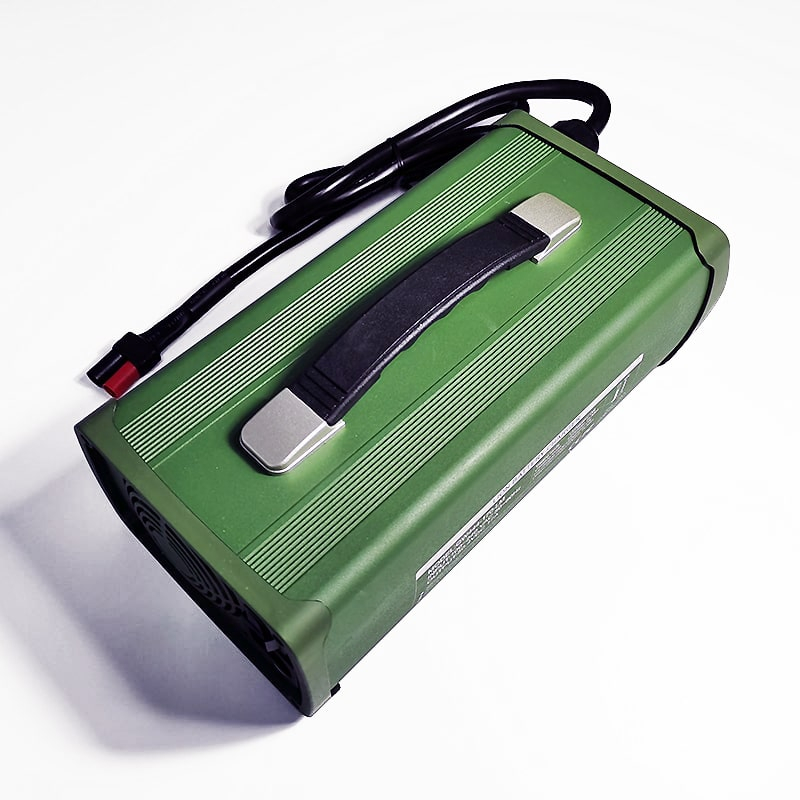

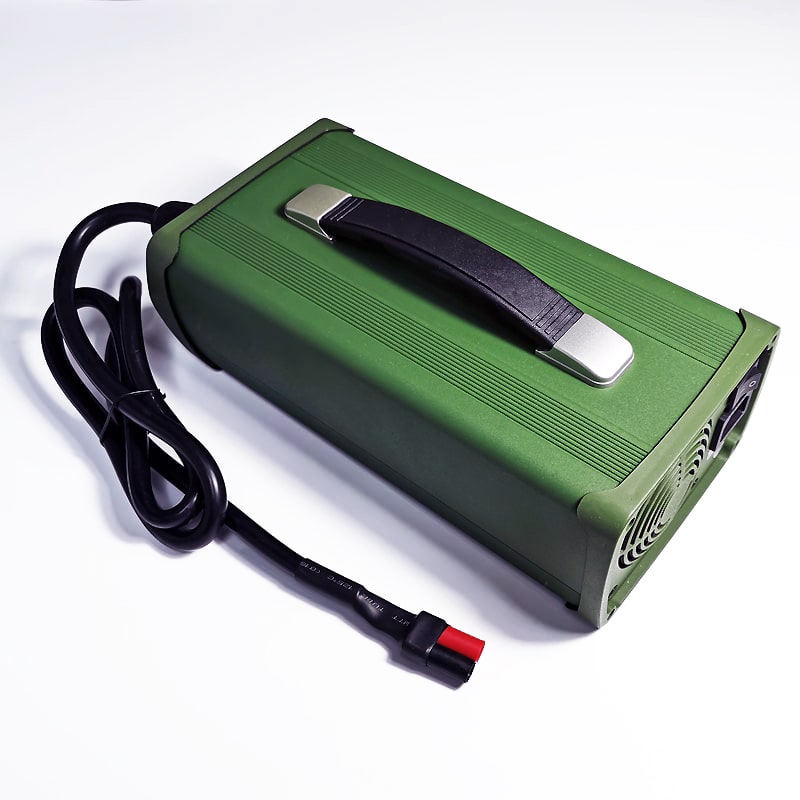

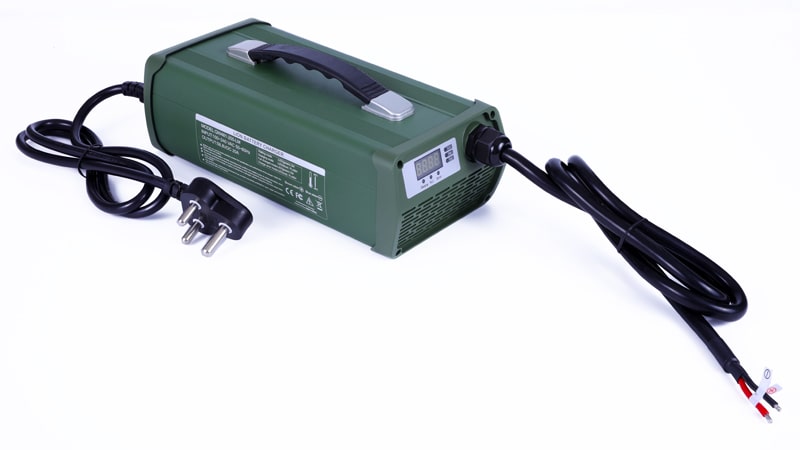

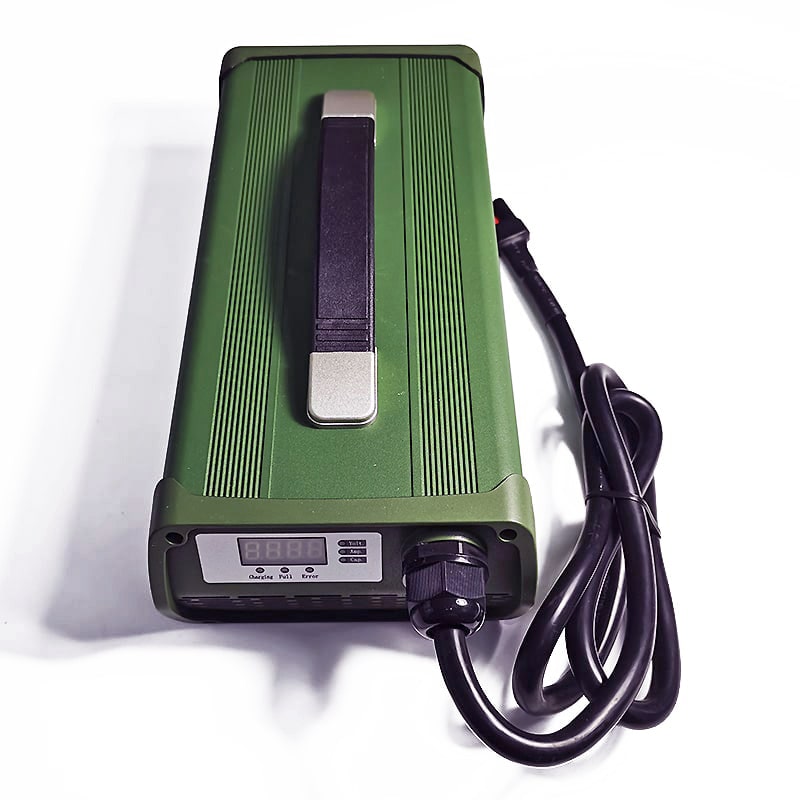

900W Special Charger 36V 15a 20a for AGM /VRLA /GEL Lead Acid Batteries RVS Other Motorcycles Solar Energy System

Quick Detail:

Brand Name:QUAWIN

Model Number:QW360-200-SM

Use:36V Lead-Acid Battery

Type:Electric

Place of Origin:Guangdong China (Mainland)

Battery charger:automatic battery charger 44.1V

Color:Black/Army green
Shell Material:Aluminium alloy
Output voltage:44.1V

Output current:20a

Output power:882W
Efficiency:≧92%
Special Process: Spray Three Proof Paint
Electromagnetic compatibility: meets the requirements of GJB
Operating temperature:-40℃ ~ 65℃
Reliability: MTBF≧3000H

Charge mode:CC---CV---Float Charge

Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

Specifications:
  Portable fast SLA /AGM /VRLA /GEL charger 36V Lead-acid Battery charger

Features:

  • Fully auto CC +CV(H)+CV(L) charging process,with MCU controller

  • Constant big charging current for faster charging;

  • Automatically charging ending with Cut-Off output;

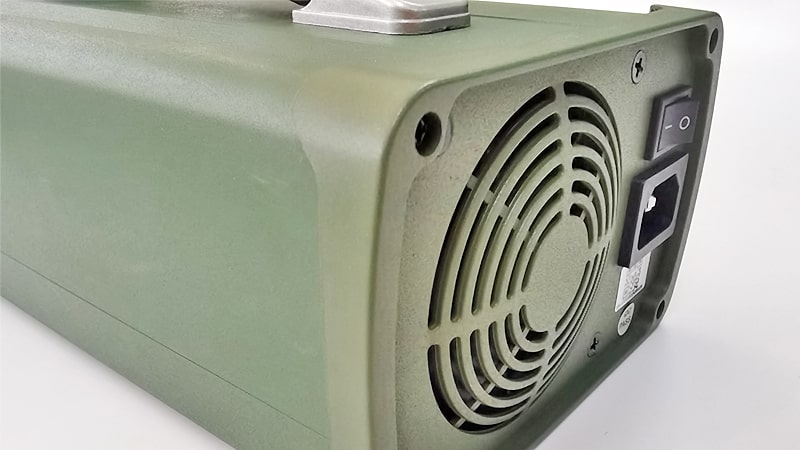

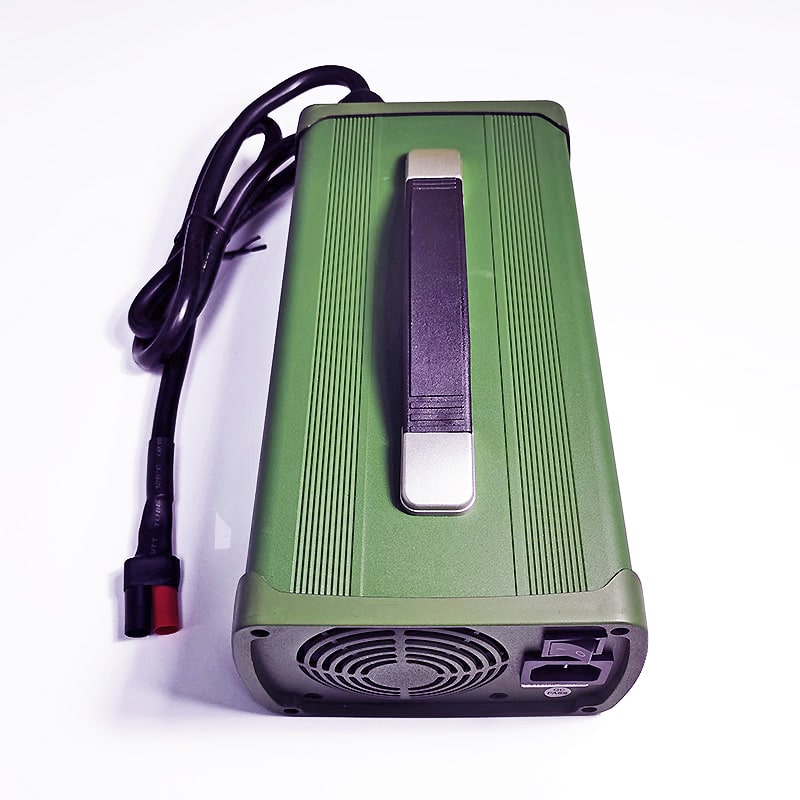

  • Metal case with Fan Cooling

  • It can be used in harsh environmental conditions, with electromagnetic capacitance, high precision of voltage regulation, rain proof, low temperature resistance and corrosion resistance.

  • It can charge any 36V SLA/VRLA/GEL/AGM battery with capacity 80-160Ah

Specification:

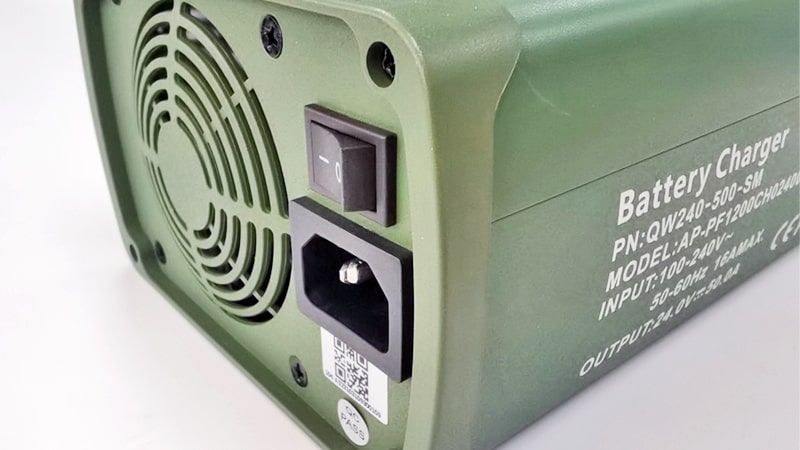

  • Input: 100-240VAC 50/60Hz with PFC

  • Output: DC 44.1V

  • Charging current: 20a(Max)

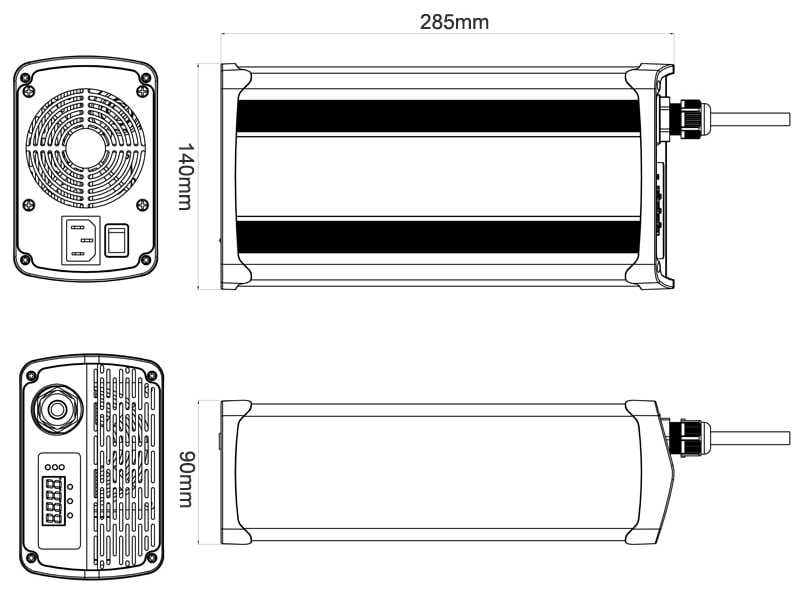

  • Dimensions (mm): 285*140*90

  • Weight: 2900±50g(only body)

Safety protections:

  • Over current protection

  • Over voltage protection

  • Short circuit protection

  • Reverse polarity protection

  • Anti-revert current protection

  • Anti-spark protection

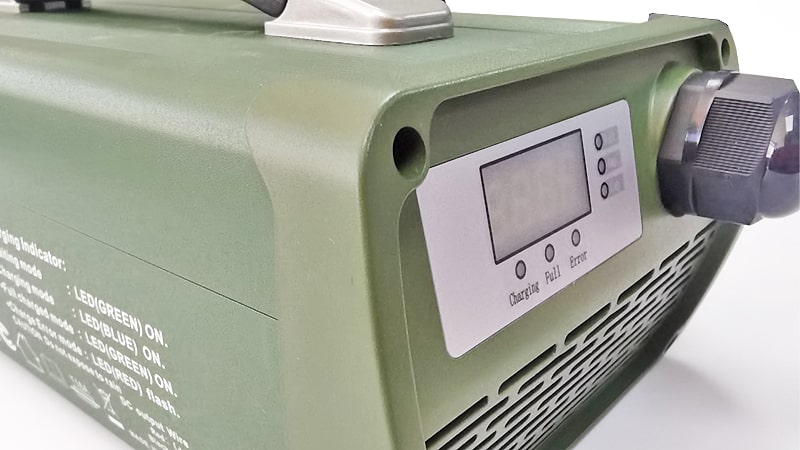

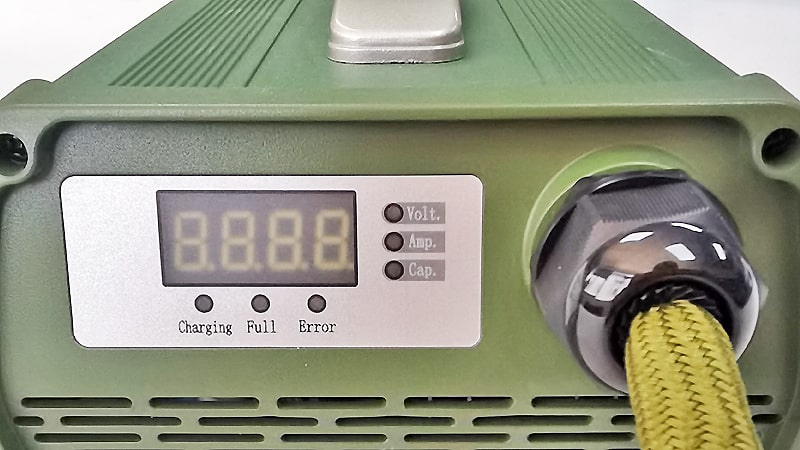

LED Indicator:

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:

  Waiting Mode:LED(GREEN)  ON

  Charging Mode:LED(BLUE)   FLASH

  Full Charged Mode:LED(GREEN)  ON

  Charge Error Mode:LED(RED)   FLASH
