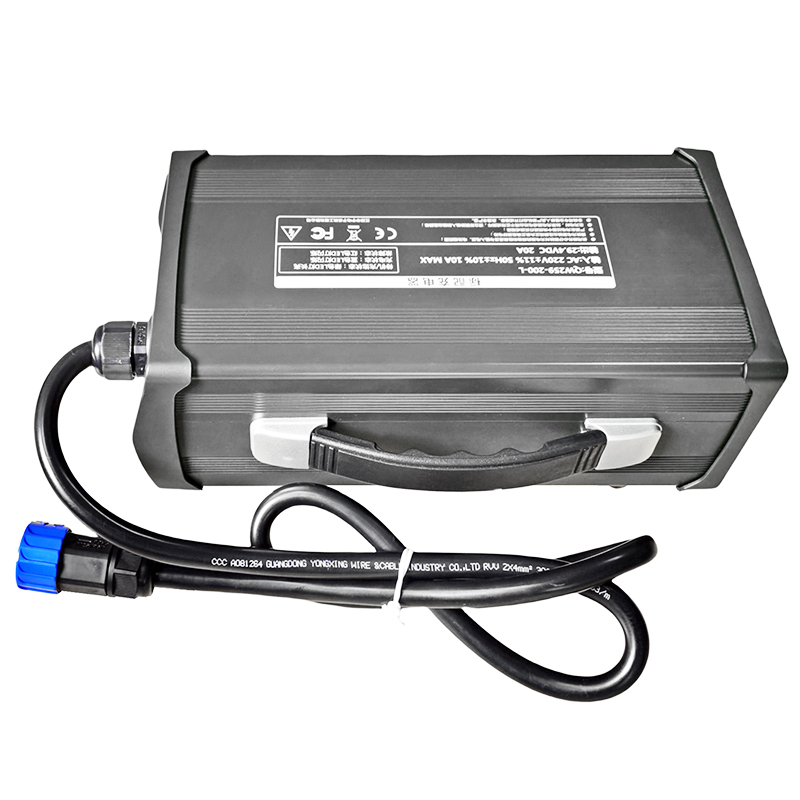

900W CANBus Chargers 79.8V 8a 9a 10a 11a Car Charger for 19S 68.4V 70.3V Electric Forklifts RVS Campers Lithium ion Batteries Pack

Quick Detail:
  Brand Name:QUAWIN
  Model Number:QW703-110-LC
  Use:19S 68.4V 70.3V lithium ion batteries or Lithium polymer battery pack
  Type:Electric
  Place of Origin:Guangdong China (Mainland)
  Battery charger:automatic battery charger 79.8V
  Color:Black/Army green
  Shell Material:Aluminium alloy
  Additional functionality:LED display
  Additional features:CANBUS communication protocol
  Input voltage:100-240VAC 50/60Hz with PFC
  Output voltage:79.8V
  Output current:11a(Max)
  Output power:877.8W
  Charge mode:CC—CV(Constant Current—Constant Voltage)
  Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:
  Inner package:Corrugated box,EPE pearl cotton/according to your requirements
  Outer packing: export carton
  Delivery Detail:sample within 10 work days,25-35 days for bulk order

Specifications:
  19S 68.4V 70.3V lithium ion batteries or Lithium Polymer battery PACK

Features:
  • Charging mode:CC—CV(Constant Current—Constant Voltage)
  • High efficiency and low power consumption
  • Stabilized output and low noice
  • Efficiency(at 100% load): ≧90%
  • Operating temperature:-20℃ ~ 45℃
  • Storage temperature:-40℃ ~ 85℃
  • Operating humidity:5%~90%RH

Specification:
  • Input: 100-240VAC 50/60Hz with PFC
  • Output: DC 79.8V
  • Charging current: 11a(Max)
  • Dimensions (mm): 285*140*90
  • Weight: 2900±50g(only body)

Safety protections:
  • Over Voltage protection
  • Short Circuit protection
  • Polarity error protection
  • Over power protection
  • Overheating protection

LED Indicator:

  Waiting Mode:LED(GREEN)  ON
  Charging Mode:LED(BLUE)   FLASH
  Full Charged Mode:LED(GREEN)  ON
  Charge Error Mode:LED(RED)   FLASH
