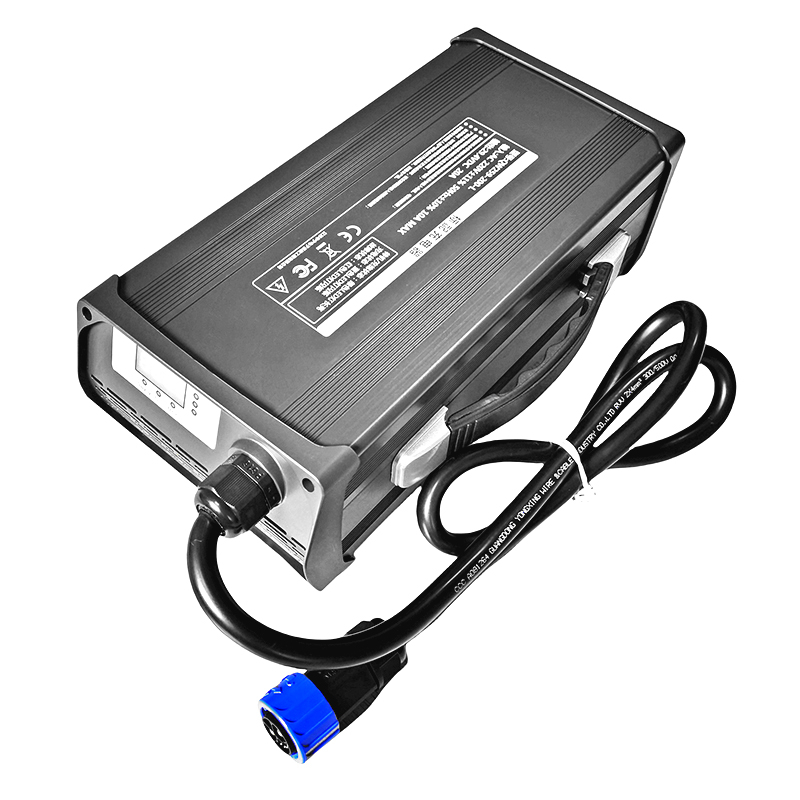

900W CANBus Charger 75.6V 76.65V 10a 11a Lifepo4 Charger For 21S 63V 67.2V RVS Campers Food Trailer Battery Pack

Quick Detail:

  Model Number:QW672-115-FC

  Use:21S 63V/67.2V Lifepo4 battery pack

  Type:Electric

  Place of Origin:Guangdong China (Mainland)

  Battery charger:automatic battery charger 76.65V

  Color:Black/Army green

  Shell Material:Aluminium alloy

  Additional functionality:LED display

  Additional features:CANBUS communication protocol

  Input voltage:100-240VAC 50/60Hz with PFC

  Output voltage:76.65V

  Output current:11.5a(Max)

  Output power:881.475W

  Charge mode:CC—CV(Constant Current—Constant Voltage)

  Certification:CB CE FCC PSE SAA RCM

  Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

  Inner package:Corrugated box,EPE pearl cotton/according to your requirements

  Outer packing: export carton

  Delivery Detail:sample within 7 work days,25-35 days for bulk order

Specifications:

  21S 63V/67.2V Lifepo4 battery pack

Features:

  • Charging mode:CC—CV(Constant Current—Constant Voltage)

  • High efficiency and low power consumption

  • Stabilized output and low noice

  • Efficiency(at 100% load): ≧90%

  • Operating temperature:-20℃ ~ 45℃

  • Storage temperature:-40℃ ~ 85℃

  • Operating humidity:5%~90%RH

Specification:

  • Input: 100-240VAC 50/60Hz with PFC

  • Output: DC 76.65V

  • Charging current: 11.5a(Max)

  • Dimensions (mm): 285*140*90

  • Weight: 2900±50g(only body)

Safety protections:

  • Over Voltage protection
  • Short Circuit protection
  • Polarity error protection
  • Over power protection
  • Overheating protection

LED Indicator:

  Waiting Mode:LED(GREEN)  ON
  Charging Mode:LED(BLUE)   FLASH
  Full Charged Mode:LED(GREEN)  ON
  Charge Error Mode:LED(RED)   FLASH
