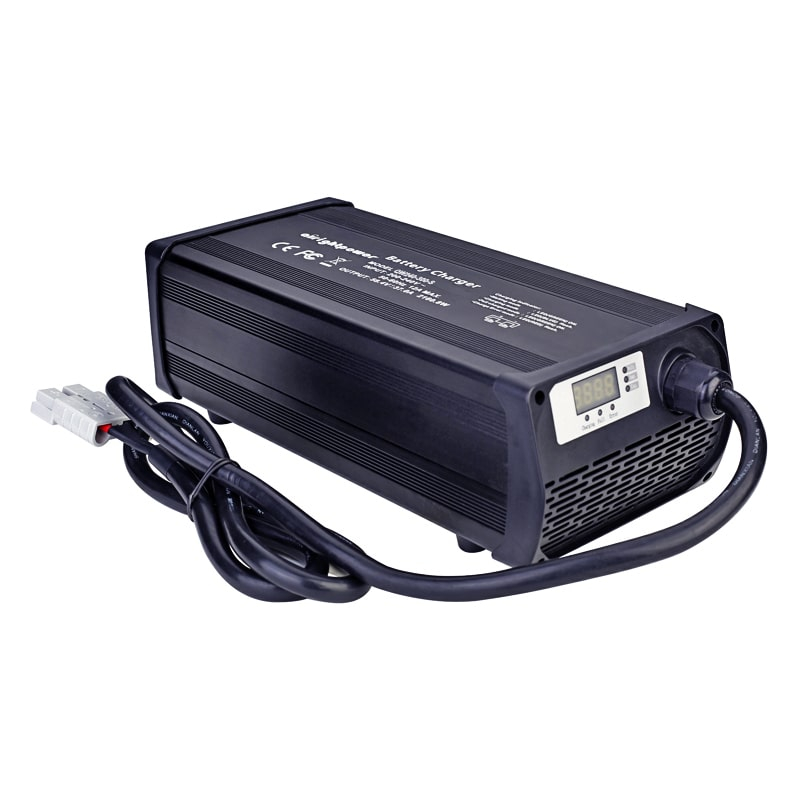

900W Battery Charger 7S 21V 22.4V Lifepo4 batteries Chargers DC 25.2V/25.55V 25a 30a 35a For Electric Forklifts

Share to:

900W Battery Charger 7S 21V 22.4V Lifepo4 batteries Chargers DC 25.2V/25.55V 25a 30a 35a For Electric Forklifts

Model:QW224-350-F
Input voltage:100-240VAC 50/60Hz
Output voltage:25.55V
Output current:35a(Max)
Dimensions (mm): 285*140*90

Availability:

Quantity:



Inquire Add to Basket

Model:
QW224-350-F
Brand:
QUAWINTEC/OEM
Code:
8504401990
Port:
Shenzhen, China
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Transport Package:
Corrugated box,EPE pearl cotton/according to your requirements
Min. Order:
200PCS
production:
50000 Pieces

Product Description

Quick Detail:

Brand Name:QUAWIN

Model Number:QW224-350-F

Use:7S 21V/22.4V Lifepo4 battery pack

Type:Electric

Place of Origin:Guangdong China (Mainland)

Battery charger:automatic battery charger 25.55V

Color:Black/Army green

Shell Material:Aluminium alloy

Additional functionality:LED display

Input voltage:100-240VAC 50/60Hz with PFC

Output voltage:25.55V

Output current:35a(Max)

Output power:894.25W

Charge mode:CC--CV--Float Charge

Certification：CB CE FCC PSE SAA RCM

Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

4pcs/Carton
Carton size: 475*422*375mm
Delivery Detail:sample within 7 work days,15~25 days for bulk order

Specifications:
7S 21V/22.4V Lifepo4 battery pack

Features:

• Charging mode:CC—CV(Constant Current—Constant Voltage)

• High efficiency and low power consumption

• Stabilized output and low noice

• Efficiency(at 100% load): ≧90%

• Operating temperature:-20℃ ~ 45℃

• Storage temperature:-40℃ ~ 85℃

• Operating humidity:5%~90%RH

Specification:

• Input: 100-240VAC 50/60Hz with PFC

• Output: DC 25.55V

• Charging current: 35a(Max)

• Dimensions (mm): 285*140*90

• Weight: 2800±50g(only body)

Safety protections:

• Over Voltage protection

• Short Circuit protection

• Polarity error protection

• Over power protection

• Overheating protection

LED Indicator:
Waiting Mode:LED(GREEN) ON
Charging Mode:LED(BLUE) FLASH
Full Charged Mode:LED(GREEN) ON
Charge Error Mode:LED(RED) FLASH

Call us to know more details datasheet.

Typical Product Model
Model		Input Voltage(V)	Battery Voltage(V)	Charging Voltage(V)	Charging Current(A)
QW128-500-F	LiFePO4	AC 100~264V	12.8(4S)	14.6	50
QW256-300-F			25.6(8S)	29.2	30
QW384-200-F			38.4(12S)	43.8	20
QW512-150-F			51.2(16S)	58.4	15
QW640-120-F			64(20S)	73	12
QW768-100-F			76.8(24S)	87.6	10
QW148-500-L	Lithium		14.8(4S)	16.8	50
QW259-300-L			25.9(7S)	29.4	30
QW370-200-L			37(10S)	42	20
QW481-150-L			48.1(13S)	54.6	15
QW629-120-L			62.9(17S)	71.4	12
QW740-100-L			74(20S)	84	10
QW120-500-S	Lead Acid		12(1S)	14.7	50
QW240-300-S			24(2S)	29.4	30
QW360-200-S			36(3S)	44.1	20
QW480-150-S			48(4S)	58.8	15
QW600-120-S			60(5S)	73.5	12
QW720-100-S			72(6S)	88.2	10
