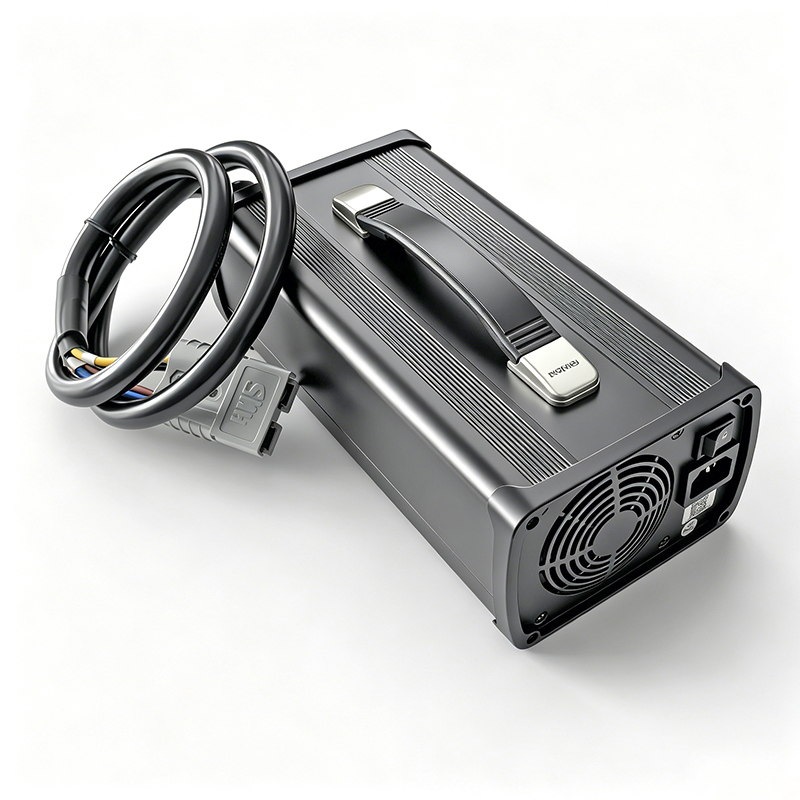

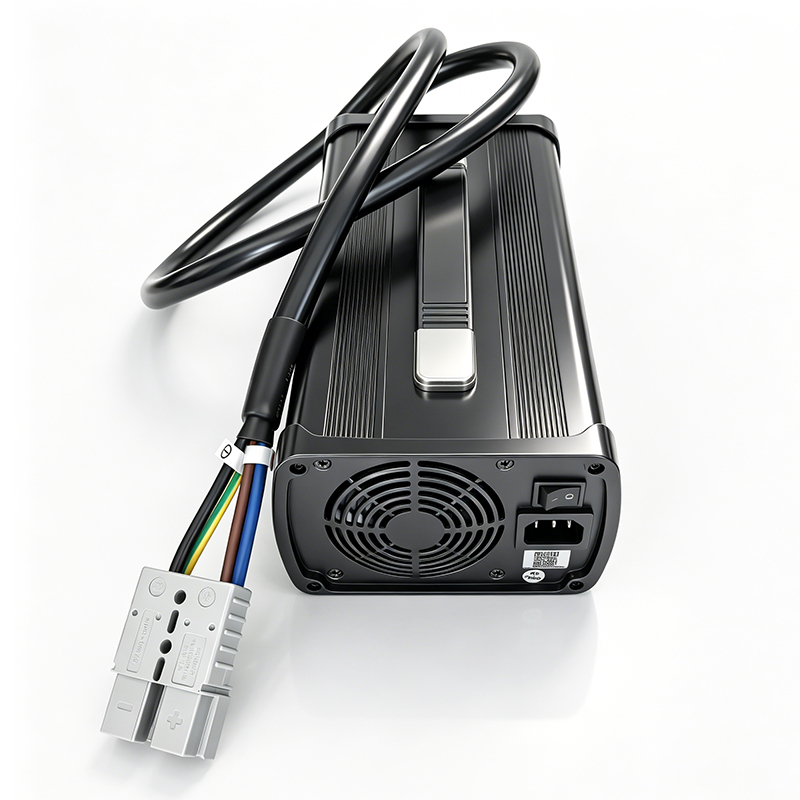

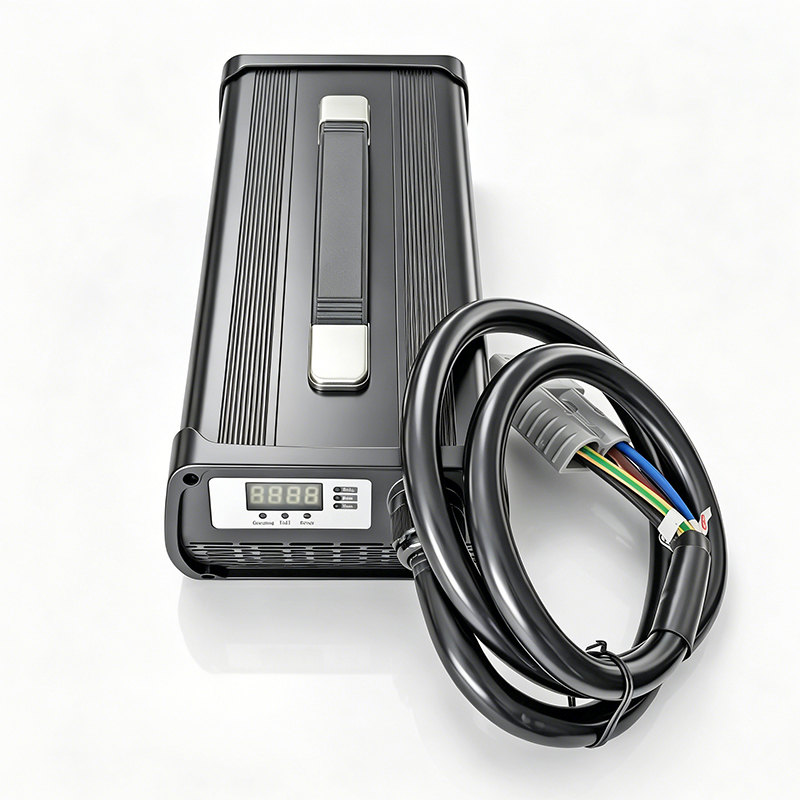

900W Battery Charger 29.4V 25a 30a for 7S 24V 25.2V 25.9V AGV Electric Forklift Truck Electric Tricycles Lithium ion batteries Pack

Quick Detail:
  Brand Name:QUAWIN
  Model Number:QW259-300-L
  Use:7S 24V 25.2V 25.9V Li-ion or Li-polymer battery pack
  Type:Electric
  Place of Origin:Guangdong China (Mainland)
  Battery charger:automatic battery charger 29.4V
  Color:Black/Silver
  Shell Material:Aluminium alloy
  Input voltage:100-240VAC 50/60Hz with PFC
  Output voltage:29.4V
  Output current:30a(Max)
  Output power:882W
  Charge mode:CC—CV(Constant Current—Constant Voltage)
  Certification：CB CE FCC PSE SAA RCM
  Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

Specifications:
  7S 24V 25.2V 25.9V Li-ion or Lithium Polymer battery PACK

Features:
  • Charging mode:CC-CV(Constant Current-Constant Voltage)
  • High efficiency and low power consumption
  • Stabilized output and low noice
  • Efficiency(at 100% load): >=90%
  • Operating temperature:-20ºC ~ 45ºC
  • Storage temperature:-40ºC ~ 85ºC
  • Operating humidity:5%~90%RH

Specification:
  • Input: 100-240VAC 50/60Hz with PFC
  • Output: DC 29.4V
  • Charging current: 30a(Max)
  • Dimensions (mm): 285*140*90
  • Weight: 2800±50g(only body)

Safety protections:
  • Over current protection
  • Over voltage protection
  • Short circuit protection
  • Reverse polarity protection
  • Anti-revert current protection
  • Anti-spark protection

LED Indicator:
  Waiting Mode:LED(GREEN)  ON
  Charging Mode:LED(BLUE)   FLASH
  Full Charged Mode:LED(GREEN)  ON
  Charge Error Mode:LED(RED)   FLASH

Typical Product Model
Model		Input Voltage(V)	Battery Voltage(V)	Charging Voltage(V)	Charging Current(A)
QW128-500-F	LiFePO4	AC 100~264V	12.8(4S)	14.6	50
QW256-300-F			25.6(8S)	29.2	30
QW384-200-F			38.4(12S)	43.8	20
QW512-150-F			51.2(16S)	58.4	15
QW640-120-F			64(20S)	73	12
QW768-100-F			76.8(24S)	87.6	10
QW148-500-L	Lithium ion		14.8(4S)	16.8	50
QW259-300-L			25.9(7S)	29.4	30
QW370-200-L			37(10S)	42	20
QW481-150-L			48.1(13S)	54.6	15
QW629-120-L			62.9(17S)	71.4	12
QW740-100-L			74(20S)	84	10
QW120-500-S	Lead Acid		12(1S)	14.7	50
QW240-300-S			24(2S)	29.4	30
QW360-200-S			36(3S)	44.1	20
QW480-150-S			48(4S)	58.8	15
QW600-120-S			60(5S)	73.5	12
QW720-100-S			72(6S)	88.2	10
