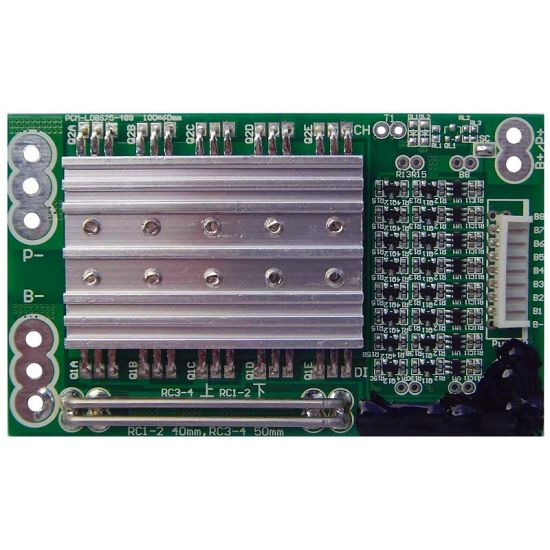

Product name:Protection Circuit Module
Model No:PCM-L08S25-489
For 8S/16S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs
Product Feature:
1. Suitable for 8/16 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Maximum continuous working current 30A, same interface for charging/discharging;
3. Overcharge, overdischarge, short circuit, overcurrent, temperature protection, etc.;
4. Temperature switch detects battery temperature and controls discharge MOSFE;
Items | Specifications | ||
Lithium-ion/Lithium Polymer | LiFePO4 | ||
Charge | Charging voltage(CC/CV)-8S | CC/CV:33.6V | CC/CV:28.8V |
Charging voltage(CC/CV)-16S | CC/CV:67.2V | CC/CV:57.6V | |
Maximal continuous charging current | 30A | ||
Discharge | Maximal continuous discharging current | 30A | |
Low current consumption | Current consumption on operation | <20μA | |
Current consumption at power down | <0.1μA | ||
Cell-balance | Cell-balance detection voltage | / | / |
Cell-balance release voltage | / | / | |
Cell-balance current | / | / | |
Over-charge | Overcharge detection voltage | 4.25±0.025V | 3.900 ± 0.025V |
Overcharge release voltage | 4.15±0.05V | 3.800 ± 0.050V | |
Overcharge delay time | 0.5~2S | ||
Over-discharge | Overdischarge detection voltage | 2.50±0.062V | 2.00±0.080V |
Overdischarge release voltage | 3.0±0.075V | 2.30±0.100V | |
Overdischarge delay time | 100~300mS | ||
Discharge overcurrent | Discharge overcurrent detection voltage | 0.2±0.015V | 0.10±0.015V |
Discharge overcurrent delay time | 15~35ms | ||
Discharge overcurrent protection | 80±10A(adjustable) | ||
Release condition | Cut-off-load | ||
Short-circuiting protection | Load short-circuiting detection voltage | / | / |
Detection condition | Exterior short circuit | ||
Load short-circuiting detection delay time | 200~800μs | ||
Release condition | Cut-off-load | ||
Internal resistance | Static Drain-Source On-Resistance | <20mΩ(B- to P-) | |
Temperature | Wide range of operation temperature | 40 ~ + 85ºC | |
Storage Temperature Range | -40 ~ +125ºC | ||
Dimension | L100*W60*T18mm |
