Quick Detail:

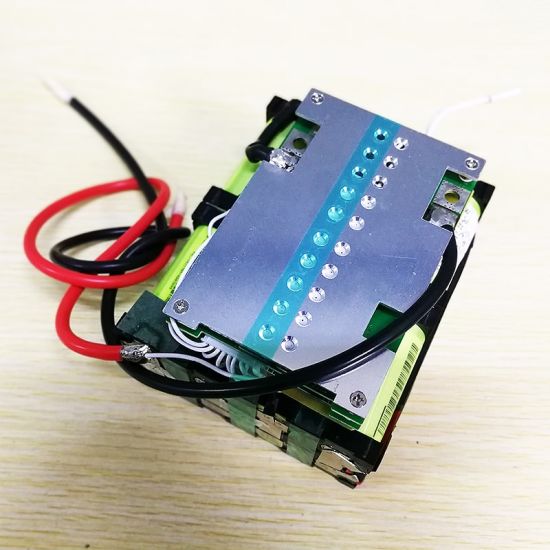

Brand Name:QUAWIN/OEM
Model Number:LP256-5000-F(26650)
Type:LiFePO4 Battery
Place of Origin:Guangdong China (Mainland)
Composed Type:8S2P
Nominal Voltage:25.6V
Nominal Capacity:5000mAh/5Ah
Cell:A123 ANR26650M1B 2500mAh Battery
Certificate:CE,ROHS,UN38.3 REACH
Pack:Fiberboard and PVC package
Maximal charging curren:60a
Maximal continuous Discharging current:60a
Discharge overcurrent protection:150±30A(adjustable)
Over charge detection voltage:31.2±0.025V
Over charge release voltage:30.4±0.025V
Over discharge detection voltage:16.0±0.05V
Over discharge release voltage:20±0.05V
Blanse current for single cell:58mA±3mA
BMS Models:PCM-L16S60-562(BMS specifications can be obtained separately)
Size:115(T) x 75(W) x 140(H) mm
Weight:1600g
Cycle life:2000 times
Warranty:12 months
Packaging & Delivery :
. Netural labels,Polybag,PVC,Color box,Customised package
. Netrual packing/custom box with less than 10KGS
. Delivery Detail:sample within 7 work days,15~35 days for bulk order
Product Advantages:
1). Green product
2). Long standby time
3). One year warranty
4). Excellent safety performance
5). Excellent storage performance and low self-discharge rate
6). Short circuit testing passed
7). Overcharge testing passed
8). Over discharge testing passed
9). 150C thermal shock test passed
10).1.2m drop testing passed
Spotlight:
1).Provide both single cells and battery packs
2).100% inspection before delivery
3).Inspects inner resistance,discharge platform and self-discharge
4). manufacturer of 26650 Lifepo4 LFP battery,lithium polymer battery etc.
5).tablished quality control systems under ISO9001
6).Customized packs, tags,labels,plugs,connectors,over current protection,temperature contol protection are available
Shipping terms:
1).Samples checking: sending by Express ( DHL/UPS/FEDEX/TNT,by air)
2).Bulk production: sending out by cargo shipping / air freight / Express(DHL/UPS/FedEx/TNT),or we can accept other shipping terms according to your requirements.
3).We are not responsible for any accidents, delays or other issues that are caused by the shipping.
Safety Precaution:
1).Do not throw battery into water or make it wet;
2).Keep the battery away from heat source(like fire or heater);
3).Do not throw the battery into fire or heat the battery;
4).Forbid to hammer to trample the battery;
5).Forbid disassembling the battery in anyway
Call us to know more details datasheet.
