Availability: | |
---|---|
Quantity: | |
PCM-L16S25-591
QUAWINTEC/OEM
8507909000
Shenzhen, China
L/C, T/T, D/P, Western Union, Paypal, Money Gram
white box/polybags/at your request outer package:carton
500PCS
500000/Month

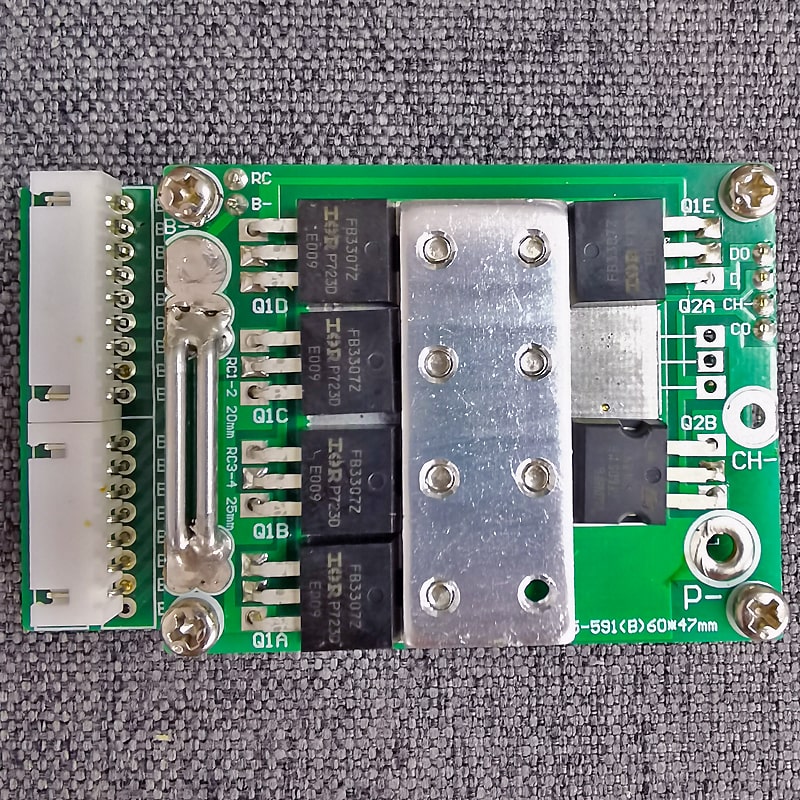

Product name:Protection Circuit Module
Model No:PCM-L16S25-591
For 6~16S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs
Product Feature:
1. Suitable for 6-16 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Overcharge, overdischarge, short circuit, overcurrent, temperature protection, etc.;
PCM-L16S25-591
. Separate charging/discharge interfaces, charge 10A and discharge 30A;
. Double row socket, balanced charging
. Size: L81*W47*T18mm
PCM-L16S25-591(A-2)
. With the same charging/discharging port, the maximum continuous working current is 20A;
. Single row socket for balanced charging;
. Size: L81*W47*T17mm
PCM-L16S25-591(A-6)
. With the same charging/discharging port, the maximum continuous working current is 20A;
. Single row socket for balanced charging;
. Size: L77*W55*T18mm
PCM-L16S25-591(A-7)
. Separate charging/discharge interfaces, charge 10A and discharge 25A;
. Single row socket for balanced charging;
. With temperature control switch;
. Size: L81*W47*T20mm
PCM-L16S25-591(A-8)
. Separate charging/discharge interfaces, charge 10A and discharge 25A;
. Single row socket for balanced charging;
. Size: L78*W47*T18mm
Items | Specifications | ||
Lithium-ion/Lithium Polymer | LiFePO4 | ||
Charge | Charging voltage(CC/CV)-16S | CC/CV:67.2V | CC/CV:57.6V |
Maximal continuous charging current | 10A | ||
Discharge | Maximal continuous discharging current | 30A | |
Low current consumption | Current consumption on operation | <20μA | |
Current consumption at power down | <0.1μA | ||
Cell-balance | Cell-balance detection voltage | 4.20 ± 0.03 V | 3.60 ± 0.03 V |
Cell-balance release voltage | 4.20 ± 0.03 V | 3.60 ± 0.03 V | |
Cell-balance current | 68 ±3mA | 58 ±3mA | |
Over-charge | Overcharge detection voltage | 4.25±0.025V | 3.900 ± 0.025V |
Overcharge release voltage | 4.15±0.05V | 3.800 ± 0.050V | |
Overcharge delay time | 0.5~2S | ||
Over-discharge | Overdischarge detection voltage | 2.50±0.062V | 2.00±0.080V |
Overdischarge release voltage | 3.0±0.075V | 2.30±0.100V | |
Overdischarge delay time | 100~250mS | ||
Discharge overcurrent | Discharge overcurrent detection voltage | 0.2±0.015V | 0.10±0.015V |
Discharge overcurrent delay time | 15~35ms | ||
Discharge overcurrent protection | 70±20A(adjustable) | ||
Release condition | Cut-off-load | ||
Short-circuiting protection | Load short-circuiting detection voltage | / | / |
Detection condition | Exterior short circuit | ||
Load short-circuiting detection delay time | 200~800μs | ||
Release condition | Cut-off-load | ||
Internal resistance | Static Drain-Source On-Resistance | <40mΩ(B- to P-) | |
Temperature | Wide range of operation temperature | 40 ~ + 85ºC | |
Storage Temperature Range | -40 ~ +125ºC | ||
Dimension | L81*W47*T18mm |
