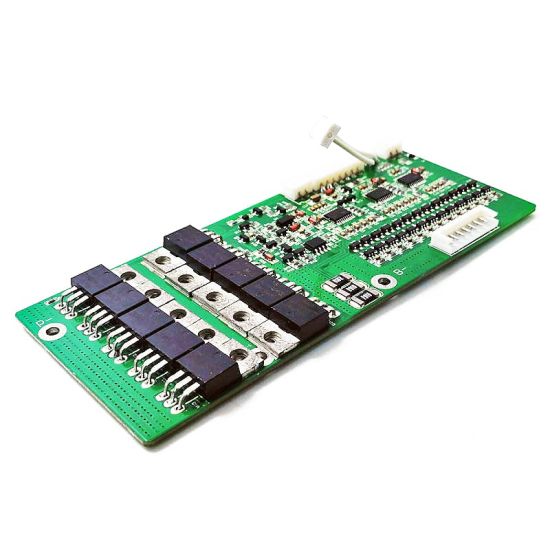

6s-13s 25A PCM BMS for 48V 48.1V Li-ion/Lithium/ Li-Polymer 41.6V 42V LiFePO4 Battery Pack Size L130*W55*T10mm (PCM-L13S25-B52)

Model No:PCM-L13S25-B52
Working current:25A
Size:L130*W55*T10mm
Balance:YES
Availability:
Quantity:
  • PCM-L13S25-B52
  • QUAWINTEC/OEM
  • 8507909000
  • Shenzhen, China
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • white box/polybags/at your request outer package:carton
  • 500PCS
  • 500000/Month
Technical parameter

Product name:Protection Circuit Module
Model No:PCM-L13S25-B52
For 6-13S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs

Product Feature:
1. Temperature switch controls the temperature of discharge detection battery;
2. Maximum continuous working current 25A, same interface for charging/discharging;
3. Weak current switch controls discharge output;
4. LED connection plug, provide switch LED indication;
5. Suitable for 6~13 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
6. Two sockets on both sides are connected and cross for easy assembly;

Items Specifications
Lithium-ion/Lithium Polymer LiFePO4
Charge Charging voltage(CC/CV)-13S CC/CV:54.6V CC/CV:46.8V
Maximal continuous charging current 25A
Discharge Maximal continuous discharging current 25A
Low current consumption Current consumption on operation <20μA
Current consumption at power down <0.1μA
Cell-balance Cell-balance detection voltage 4.20 ± 0.03 V 3.60 ± 0.03 V
Cell-balance release voltage 4.20 ± 0.03 V 3.60 ± 0.03 V
Cell-balance current 68 ±3mA 58 ±3mA
Over-charge Overcharge detection voltage 4.25±0.025V 3.900 ± 0.025V
Overcharge release voltage 4.15±0.05V 3.800 ± 0.050V
Overcharge delay time 0.5~2S
Over-discharge Overdischarge detection voltage 2.50±0.062V 2.00±0.080V
Overdischarge release voltage 3.0±0.075V 2.30±0.100V
Overdischarge delay time 100~250mS
Discharge overcurrent Discharge overcurrent detection voltage 0.2±0.015V 0.10±0.015V
Discharge overcurrent delay time 15~35ms
Discharge overcurrent protection 60±15A(can adjust)
Release condition Cut-off-load
Short-circuiting protection Load short-circuiting detection voltage / /
Detection condition Exterior short circuit
Load short-circuiting detection delay time 200~800μs
Release condition Cut-off-load
Internal resistance Static Drain-Source On-Resistance <40mΩ(B- to P-)
Temperature Wide range of operation temperature 40 ~ + 85ºC
Storage Temperature Range -40 ~ +125ºC
Dimension L130*W55*T10mm
