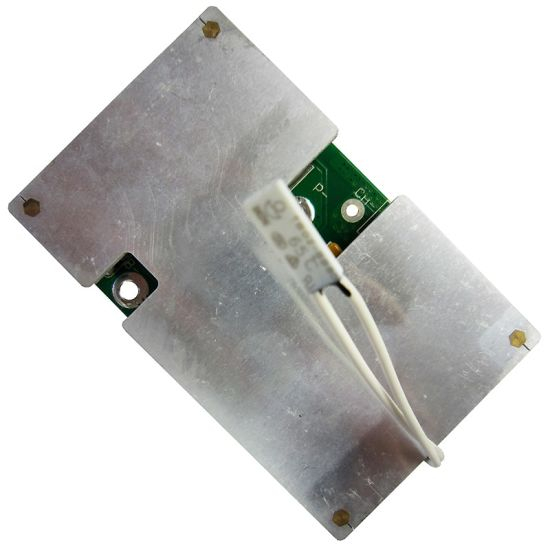

6s-10s C: 5A D: 50A PCM BMS for 36V 37V Li-ion/Lithium/ Li-Polymer 30V 32V LiFePO4 Battery Pack Size L100*W60*T15mm (PCM-L10S50-B65)

Model No:PCM-L10S50-B65
Charging Current:5A
Discharging Current:50A
Size:L100*W60*T15mm
Balance:YES
Availability:
Quantity:
  • PCM-L10S50-B65

  • QUAWINTEC/OEM

  • 8507909000

  • Shenzhen, China

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • white box/polybags/at your request outer package:carton

  • 500PCS

  • 50000/Month

Technical parameter

Product name:Protection Circuit Module
Model No:PCM-L10S50-B65
For 6S~10S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs

Product Feature:
1. Temperature switch controls discharge and detects battery temperature;
2. The maximum continuous working current is 50A, and the charging/discharging outlet;
3. Weak current switch controls discharge output;
4. The LED is connected to the plug to provide the switch LED indication;
5. Suitable for 6-10 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;

Items Specifications
Lithium-ion/Lithium Polymer LiFePO4
Charge Charging voltage(CC/CV)-10S CC/CV:42V CC/CV:36V
Maximal continuous charging current 5A
Discharge Maximal continuous discharging current 50A
Low current consumption Current consumption on operation <20μA
Current consumption at power down <0.1μA
Cell-balance Cell-balance detection voltage 4.20 ± 0.03 V 3.60 ± 0.03 V
Cell-balance release voltage 4.20 ± 0.03 V 3.60 ± 0.03 V
Cell-balance current 68 ±3mA 58 ±3mA
Over-charge Overcharge detection voltage 4.25±0.025V 3.900 ± 0.025V
Overcharge release voltage 4.15±0.05V 3.800 ± 0.050V
Overcharge delay time 0.5~2S
Over-discharge Overdischarge detection voltage 2.50±0.062V 2.00±0.080V
Overdischarge release voltage 3.0±0.075V 2.30±0.100V
Overdischarge delay time 100~250mS
Discharge overcurrent Discharge overcurrent detection voltage 0.2±0.015V 0.10±0.015V
Discharge overcurrent delay time 15~35ms
Discharge overcurrent protection 130±20A(adjustable)
Release condition Cut-off-load
Short-circuiting protection Load short-circuiting detection voltage / /
Detection condition Exterior short circuit
Load short-circuiting detection delay time 200~800μs
Release condition Cut-off-load
Internal resistance Static Drain-Source On-Resistance <40mΩ(B- to P-)
Temperature Wide range of operation temperature 40 ~ + 85ºC
Storage Temperature Range -40 ~ +125ºC
Dimension L100*W60*T15mm
