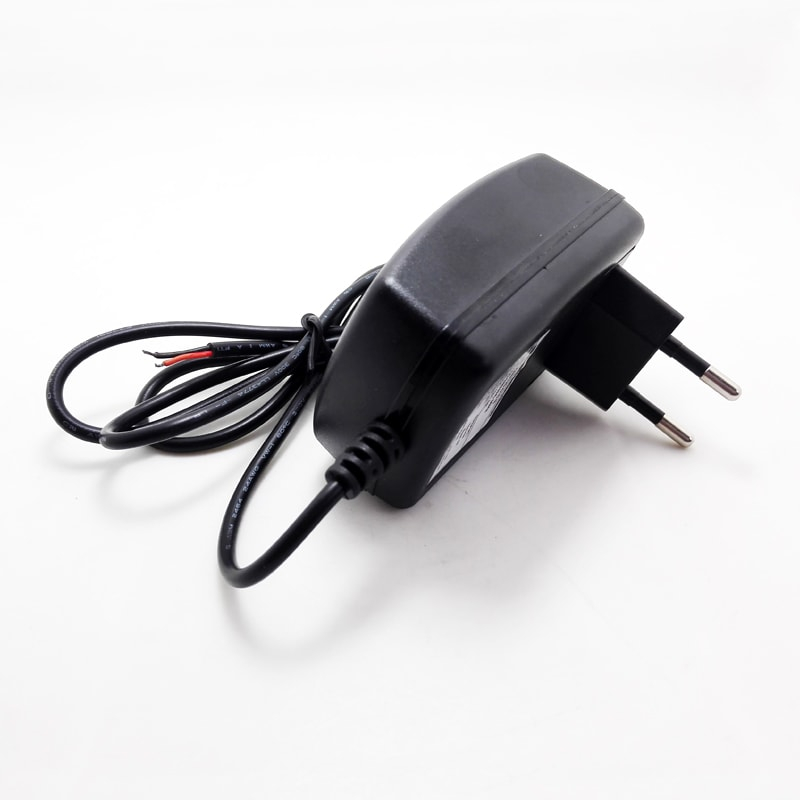

6S-10S Cells 7.2V-12V 20W NiMH NiCd Battery Pack Wall Charger (9V-15V 1A)

Model:QW7.2-12-010-N
Input voltage:100-240VAC 50/60Hz
Output voltage:9-15V
Output current:1a(Max)
Dimensions (mm): 82*52*35mm
Availability:
Quantity:
  • QW7.2-12-010-N

  • QUAWINTEC/OEM

  • 8504401990

  • Shenzhen, China

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • white box/polybags/at your request outer package:carton

  • 500PCS

  • 50000 Pieces

Quick Detail:

Brand Name:QUAWIN
Model Number:QW7.2-12-010-N
Use:6-10 Cells 7.2-12V NIMH NICD Battery Pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 9-15V
Certificate:CE
Color:Black
Shell Material:Plastic Shell(ABS+PC)
Input voltage:100-240VAC 50/60Hz

Output voltage:9-15V
Output current:1a
Output power:15W
Charge mode:MCU control charging process to avoid over charge
Output Connector:DC Jack,Small crocodile clip,Cigar lighter,XRL,Ring terminal


Packaging & Delivery :

100pcs/Carton
Carton size:503*275*385mm

Delivery Detail:sample within 7 work days,15~25 days for bulk order


Specifications:
 6-10 Cells 7.2-12V NIMH NICD Battery PACK

Features:
 • Charging mode:CC-CV(Constant Current-Constant Voltage)
  High efficiency and low power consumption
  Stabilized output and low noice
  Efficiency(at 100% load): >=80%
  Operating temperature:-10C ~ 45C
  Storage temperature:-20C ~ 70C
  Operating humidity:5%~90%RH

Specification:
 • Input: AC 100-240V 50-60Hz 1.0A
 • Output:DC 9-15V
 • Charging current:1a
 • Dimensions (mm): 82*52*35mm
 • Weight:150g(only body)


Safety protections:
 • Over Voltage protection
 • Short Circuit protection
 • Polarity error protection
 • Over power protection


LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
 • Charging:Red LED
 • Battery Full:Green LED


Call us to know more details datasheet.

(A Typical Model)
Model Input Voltage(V) Battery Voltage(V) Charging Voltage(V) Charging Current(A)
QW2.4-7.2-015-N (Nimh/Nicd) AC 100~264V 2.4-7.2(2~6S) 3-9 1.5
QW7.2-12-010-N 7.2-12(6~10S) 9~15 1
QW12-24-005-N 12-24(10~20S) 15-30 0.5

6-10 Cells 7.2-12V NiMH NiCd Battery Pack Wall Charger (9-15V 1A)6-10 Cells 7.2-12V NiMH NiCd Battery Pack Wall Charger (9-15V 1A)6-10 Cells 7.2-12V NiMH NiCd Battery Pack Wall Charger (9-15V 1A)6-10 Cells 7.2-12V NiMH NiCd Battery Pack Wall Charger (9-15V 1A)6-10 Cells 7.2-12V NiMH NiCd Battery Pack Wall Charger (9-15V 1A)6-10 Cells 7.2-12V NiMH NiCd Battery Pack Wall Charger (9-15V 1A)6-10 Cells 7.2-12V NiMH NiCd Battery Pack Wall Charger (9-15V 1A)6-10 Cells 7.2-12V NiMH NiCd Battery Pack Wall Charger (9-15V 1A)6-10 Cells 7.2-12V NiMH NiCd Battery Pack Wall Charger (9-15V 1A)6-10 Cells 7.2-12V NiMH NiCd Battery Pack Wall Charger (9-15V 1A)6-10 Cells 7.2-12V NiMH NiCd Battery Pack Wall Charger (9-15V 1A)6-10 Cells 7.2-12V NiMH NiCd Battery Pack Wall Charger (9-15V 1A)
