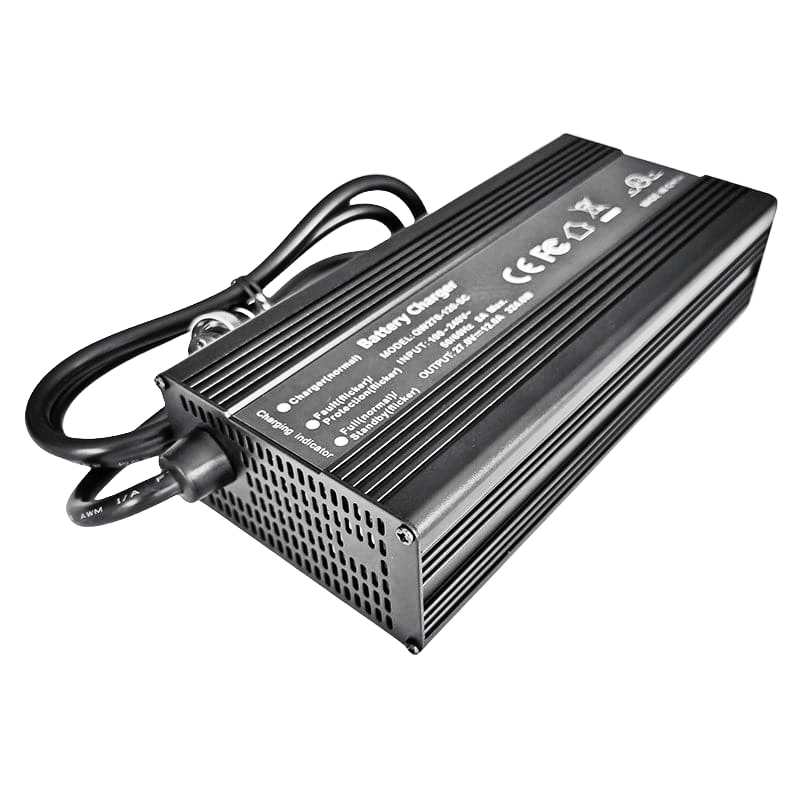

600W Battery Charger 12.6V 25a 30a Charger For 3S 10.8V 11.1V 12V Electric Bike Electric Motorcycles lithium ion batteries Pack

Quick Detail:
  Brand Name:QUAWIN
  Model Number:QW111-300-L
  Use:3S 10.8V 11.1V 12V Li-ion or Li-polymer battery pack
  Type:Electric
  Place of Origin:Guangdong China (Mainland)
  Battery charger:automatic battery charger 12.6V
  Color:Black/Silver
  Shell Material:Aluminium alloy
  Input voltage:100-240VAC 50/60Hz with PFC
  Output voltage:12.6V
  Output current:30a(Max)
  Output power:378W
  Charge mode:CC—CV(Constant Current—Constant Voltage)
  Certification：CB CCC CE ETL FCC GS KC PSE SAA RCM UKCA BSMI ICES
  Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

Specifications:
  3S 10.8V 11.1V 12V Li-ion or Lithium Polymer battery PACK

Features:
  • Charging mode:CC-CV(Constant Current-Constant Voltage)
  • High efficiency and low power consumption
  • Stabilized output and low noice
  • Efficiency(at 100% load): >=90%
  • Operating temperature:-20ºC ~ 45ºC
  • Storage temperature:-40ºC ~ 85ºC
  • Operating humidity:5%~90%RH

Specification:
  • Input: 100-240VAC 50/60Hz with PFC
  • Output: DC 12.6V
  • Charging current: 30a(Max)
  • Dimensions (mm): 215*100*55
  • Weight: 1500±10g(only body)

Safety protections:
  • Over current protection
  • Over voltage protection
  • Short circuit protection
  • Reverse polarity protection
  • Anti-revert current protection
  • Anti-spark protection

LED Indicator:

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
  Waiting Mode:LED(GREEN)  ON
  Charging Mode:LED(BLUE)   FLASH
  Full Charged Mode:LED(GREEN)  ON
  Charge Error Mode:LED(RED)   FLASH
