QW7.2-14.4-080-N
QUAWINTEC/OEM
8504401990
Shenzhen, China
L/C, T/T, D/P, Western Union, Paypal, Money Gram
white box/polybags/at your request outer package:carton
200PCS
50000 Pieces
Brand Name:QUAWIN
Model Number:QW7.2-14.4-080-N
Use:6-12 Cells 7.2-14.4V NIMH NICD Battery Pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 9-18V
Certificate:CE
Color:Silver
Input voltage:100-240VAC 50/60Hz
Output voltage:9-18V
Output current:8a
Output power:144W
Charge mode:MCU control charging process to avoid over charge
Output Connector:DC Jack,Small crocodile clip,Cigar lighter,XRL,Ring terminal
Packaging & Delivery :
Specifications:

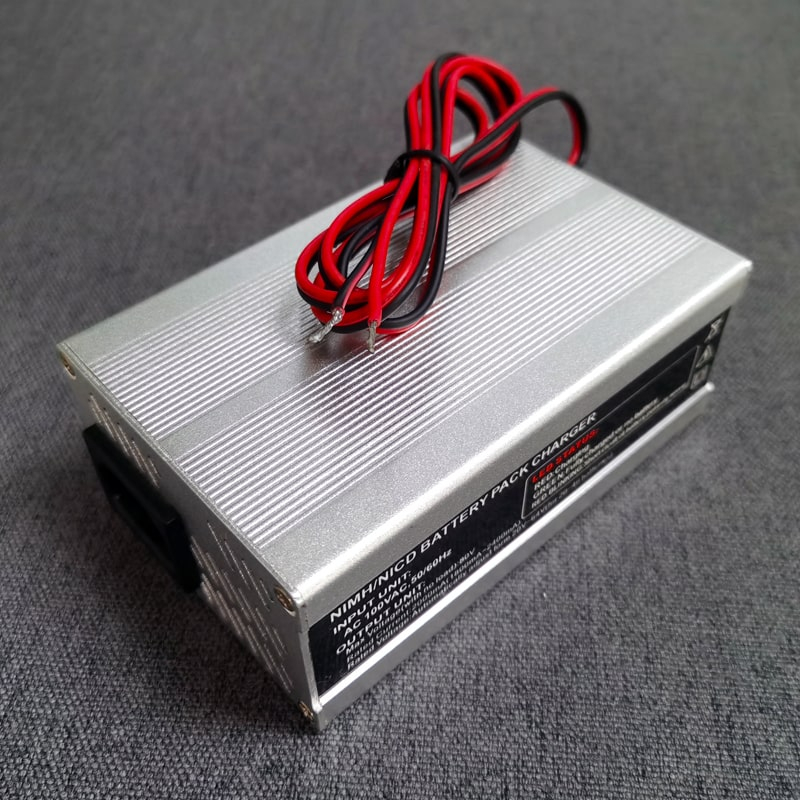

6-12 Cells 7.2-14.4V NIMH NICD Battery PACK
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=80%
• Operating temperature:-10C ~ 45C
• Storage temperature:-20C ~ 70C
• Operating humidity:5%~90%RH
Specification:
• Input: AC 100-240V 50-60Hz
• Output: DC 9-18V
• Charging current: 8a
• Dimensions (mm):118*76*46
• Weight:434g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:RED,
• Protection:RED Blinking
• No battery or Charging finished(Trickle on):GREEN
• Output short or battery poles wrong:RED Blinking
Call us to know more details datasheet.
| (A Typical Model) | |||||
| Model | Input Voltage(V) | Battery Voltage(V) | Charging Voltage(V) | Charging Current(A) | |
QW3.6-7.2-080-N | (Nimh/Nicd) | AC 100~264V | 3.6-7.2(3~6S) | 4.5~9 | 8 |
QW4.8-9.6-080-N | 4.8-9.6(4~8S) | 6-12 | 8 | ||
QW6-12-080-N | 6-12(5~10S) | 7.5-15 | 8 | ||
| QW7.2-14.4-080-N | 7.2-14.4(6~12S) | 9~18 | 8 | ||
| QW9.6-19.2-060-N | 9.6-19.2(8~16S) | 12~24 | 6 | ||
| QW12-24-050-N | 12-24(10~20S | 15-3 | 5 | ||
| QW18-36-030-N | 18-36(15~30S) | 22.5-45 | 3 | ||
QW24-48-025-N | 24-48(20~40S) | 30-6 | 2.5 | ||
