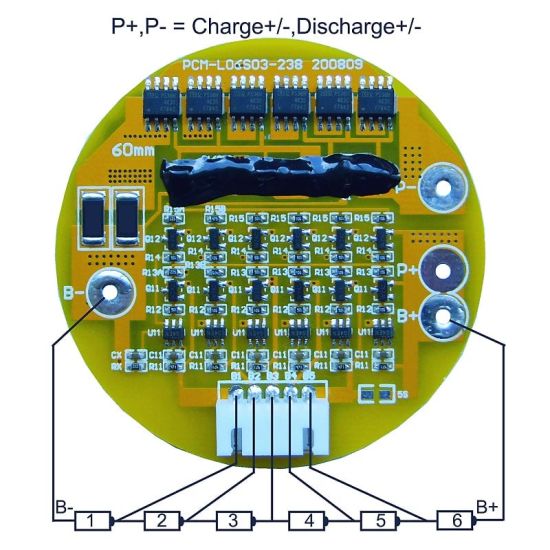

5s~6s 10A Circular PCM BMS for 21.6V 22.2V Li-ion/Lithium/ Li-Polymer 18V 19.2V LiFePO4 Battery Pack Size Φ 60mm (PCM-Li06S3-238)

Model No:PCM-Li06S3-238
Working current:10A
Size:Φ60mm
Balance:NO
Availability:
Quantity:
  • PCM-Li06S3-238

  • QUAWINTEC/OEM

  • 8507909000

  • Shenzhen, China

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • white box/polybags/at your request outer package:carton

  • 500PCS

  • 500000/Month

Technical parameter

Product name:Protection Circuit Module
Model No:PCM-Li06S3-238
For 5S-6S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs

Product Feature:
1. Suitable for 5~6 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Maximum continuous working current 10A, same interface for charging/discharging;
3. Overcharge, overdischarge, short circuit, overcurrent, temperature protection, etc.;

Items Specifications
Lithium-ion/Lithium Polymer LiFePO4
Charge Charging voltage(CC/CV)-6S CC/CV:25.2V CC/CV:21.6V
Maximal continuous charging current 10A
Discharge Maximal continuous discharging current 10A
Low current consumption Current consumption on operation <20μA
Current consumption at power down <0.1μA
Cell-balance Cell-balance detection voltage / /
Cell-balance release voltage / /
Cell-balance current / /
Over-charge Overcharge detection voltage 4.25±0.025V 3.900 ± 0.025V
Overcharge release voltage 4.15±0.05V 3.800 ± 0.050V
Overcharge delay time 0.5~2S
Over-discharge Overdischarge detection voltage 2.50±0.062V 2.00±0.080V
Overdischarge release voltage 3.0±0.075V 2.30±0.100V
Overdischarge delay time 100~300mS
Discharge overcurrent Discharge overcurrent detection voltage 0.2±0.015V 0.10±0.015V
Discharge overcurrent delay time 15~35ms
Discharge overcurrent protection 25±5A(can adjust)
Release condition Cut-off-load
Short-circuiting protection Load short-circuiting detection voltage / /
Detection condition Exterior short circuit
Load short-circuiting detection delay time 200~800μs
Release condition Cut-off-load
Internal resistance Static Drain-Source On-Resistance <20mΩ(B- to P-)
Temperature Wide range of operation temperature 40 ~ + 85ºC
Storage Temperature Range -40 ~ +125ºC
Dimension Φ60mm
