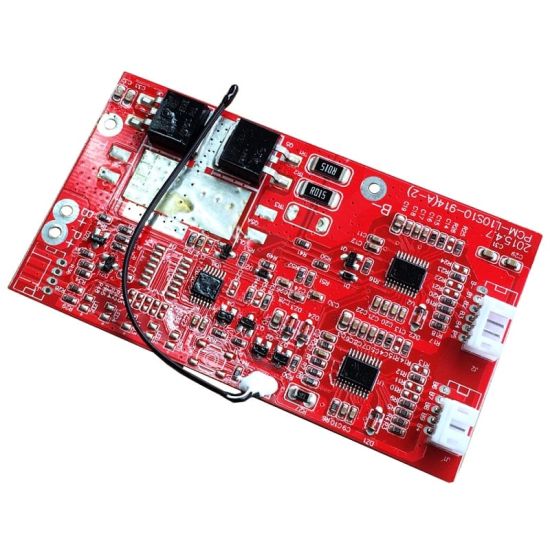

5s-10s 15A PCM BMS for 36V 37V Li-ion/Lithium/ Li-Polymer 30V 32V LiFePO4 Battery Pack with Hdq, I2c Communication Protocol PCM-L10s10-914(A-2)

Model No:PCM-L10S10-914(A-2)
Working current:15A
Size:L90*W50*T10mm
Balance:YES
Quantity:
  • PCM-L10S10-914(A-2)
  • QUAWIN/OEM
  • 8507909000
  • Shenzhen, China
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • white box/polybags/at your request outer package:carton
  • 200PCS
  • 50000/Month
Technical parameter

Product name:Protection Circuit Module
Model No:PCM-L10S10-914(A-2)
For 5~10S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs

Product Feature:
1. Suitable for 5~10 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Maximum continuous working current 15A, same charging/discharging interface;
3. Overcharge, overdischarge, short circuit, overcurrent, temperature protection, etc.;
4. The metering IC adopts BQ34Z100,which can read the total voltage, capacity, current, temperature, cycle times and other parameters;
5. The required information can be read through the display screen of modelPCM-LCD001-415;

Protection Circuit Module Specifications  For 36V Li-ion/Li-Po  Battery  Pack
No Test   item
(Test at normal temperature 25±2ºC and relative humidity≤90%)
Criterion
1 Communication Interface HDQ or I2C
2 Capacity Designing battery capacity(PCM)       15Ah
Max capacity(Battery pack)   290000mAh
Min capacity(Battery pack)   100mAh
External capacity Indication LCD,LED
Gas gauge algorithm   Impedance Track
3 Voltage Charging voltage DC: 42V CC/CV(4.2V/1cell)
Cell-balance detection voltage
(Charge balance)
4.2V±0.03V
Cell-balance release voltage   4.2V±0.025V
Cell-balance detection delay time 0.96~1.4s
4 Current Balance current for single cell 68mA±5mA
Normal operating-mode current
(Gas Gauge IC)
145 uA
SLEEP operating-mode current
(Gas Gauge IC)
84 uA
FULL SLEEP operating-mode current
(Gas Gauge IC)
30 uA
Maximal continuous charging current   15A
Maximal continuous discharging current   15A
5 Over charge Protection Over charge detection voltage 4.25±0.025V
Over charge release voltage 4.05±0.05V
Over charge detection delay time 0.5~2S(can adjust)
6 Over discharge protection Over discharge detection voltage 2.5±0.07V
Over discharge release voltage 3.0±0.1V
Over discharge detection delay time 0.5~2S(can adjust)
7 Over current protection Over current detection voltage 0.2±0.015V
Over current detection current 40±5A(can adjust)
Detection delay time   0.5~2S(can adjust)
Release condition Cut load
8 Short protection Detection condition Exterior short circuit
Detection delay time 200-800us
Release condition Cut load ,
9 Resistance Protection  circuitry  (MOSFET) ≤20mΩ
10 Temperature Operating Temperature Range   -40~+85ºC
Storage Temperature Range -40~+125ºC
Dimension L90*W50*T10mm
B+:Battery+ 5s-10s 15A PCM BMS for 36V 37V Li-ion/Lithium/ Li-Polymer 30V 32V LiFePO4 Battery Pack with Hdq, I2c Communication Protocol PCM-L10s10-914 (A-2)
B-:Battery-
SDA:I2C data line
SCL:I2C clock line
P+:Discharge+
P-:Discharge-
RT1:10K NTC
