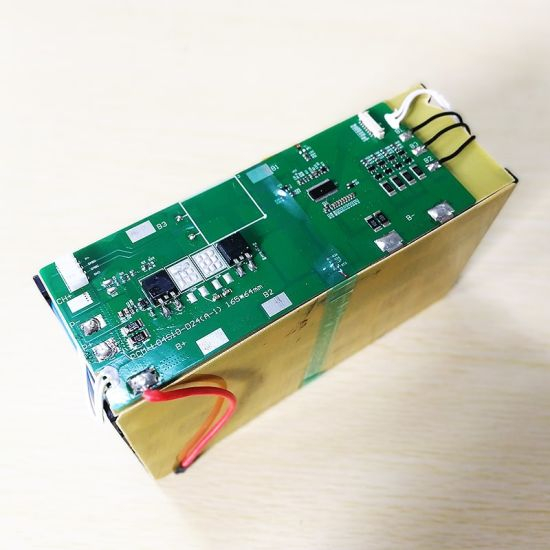

4s7p 12V 12.8V 26650 22.4ah/22400mAh Rechargeable LiFePO4 LFP Battery Pack with Bluetooth Function

Quick Detail:
 Brand Name:QUAWIN/OEM
 Model Number:LP128-224K-F(26650)
 Type:Lifepo4 LFP battery
 Place of Origin:Guangdong China (Mainland)
 Composed Type:4S7P
 Nominal Capacity:22400mAh/22.4Ah
 Cell Capacity:3.2V/3.2Ah
 Nominal Voltage:12.8V
 Charging voltage:DC:14.6V CC/CV
 Additional functionality:With Bluetooth function
 Maximal charging curren:11A
 Maximal continuous Discharging current:11A
 Discharge overcurrent protection:60±5A(adjustable)
 Over charge detection voltage:15.2±0.025V
 Over charge release voltage:14.2±0.025V
 Over discharge detection voltage:8.0±0.05V
 Over discharge release voltage:9.2±0.05V
 Blanse current for single cell:56mA±5mA
 BMS Models:PCM-L04S10-D24(BMS specifications can be obtained separately)
 Certificate:CE,ROHS,UL,UN38.3 REACH
 Pack:Fiberboard wrapping and PVC shrinkage film
 Battery Pack Dimension :125(T) x 200(W) x 75(H)mm
 Weight:3000g
 Cycle life:2000~3000 times
 Warranty:12 months
 Packing:Antistatic bag /white box and standard export carton/customized

Packaging & Delivery :
 . Netural labels,Polybag,PVC,Color box,Customised package
 . Netrual packing/Custom box with less than 10KGS
 . Delivery Detail:sample within 7 work days,15~35 days for bulk order

Product Advantages:
  1). Green product
  2). Long standby time
  3). One year warranty
  4). Excellent safety performance
  5). Excellent storage performance and low self-discharge rate
  6). Short circuit testing passed
  7). Overcharge testing passed
  8). Over discharge testing passed
  9). 150C thermal shock test passed
  10).1.2m drop testing passed

Spotlight:
  1).Provide both single cells and battery packs
  2).100% inspection before delivery
  3).Inspects inner resistance,discharge platform and self-discharge
  4). manufacturer of 26650 Lifepo4 LFP battery,lithium polymer battery etc.
  5).tablished quality control systems under ISO9001
  6).Customized packs, tags,labels,plugs,connectors,over current protection,temperature contol protection are available

Shipping terms:
  1).Samples checking: sending by Express ( DHL/UPS/FEDEX/TNT,by air)
  2).Bulk production: sending out by cargo shipping / air freight / Express(DHL/UPS/FedEx/TNT),or we can accept other shipping terms according to your requirements.
  3).We are not responsible for any accidents, delays or other issues that are caused by the shipping.

Safety Precaution:
  1).Do not throw battery into water or make it wet;
  2).Keep the battery away from heat source(like fire or heater);
  3).Do not throw the battery into fire or heat the battery;
  4).Forbid to hammer to trample the battery;
  5).Forbid disassembling the battery in anyway

Call us to know more details datasheet.
