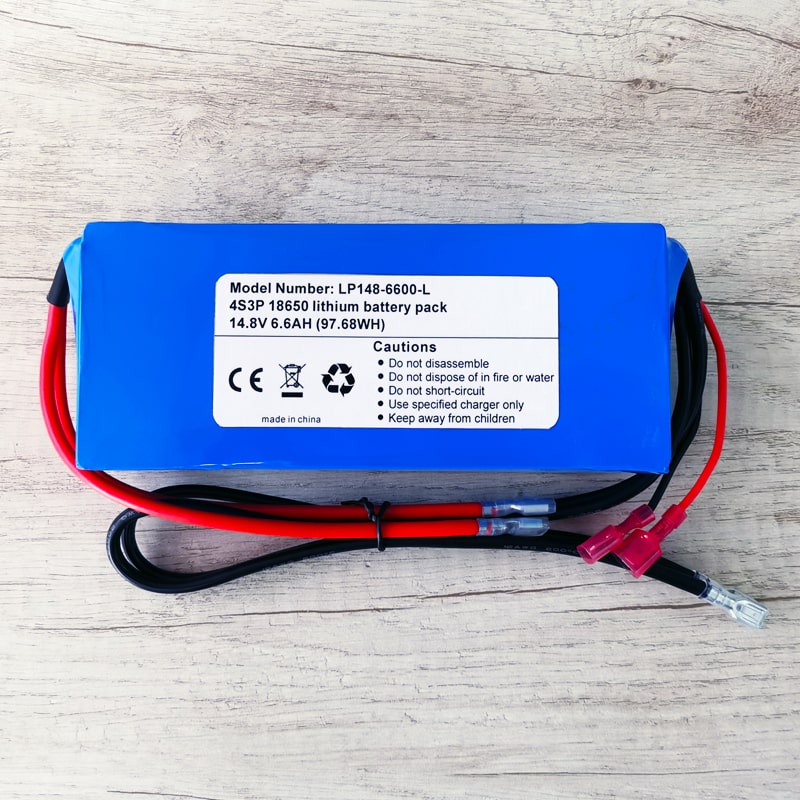

4S3P 12V 14.4V 14.8V 18650 6600mAh/6.6Ah High rate discharge rechargeable lithium ion battery pack with PCM and connectors

Model Number:LP148-6600-L(18650)
Composed Type:4S3P
Nominal Voltage:14.8V
Nominal Capacity:6600mAh/6.6Ah
Size:40(T) x 73(W) x 173(H)mm
Weight:724±5g
Availability:
Quantity:
  • LP148-6600-L(18650)

  • QUAWINTEC/OEM

  • 8506500000

  • Shenzhen, China

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • Netrual packing/Custom box with less than 10KGS

  • 200PCS

  • 10000/Month

Quick Detail:

Brand Name:QUAWIN/OEM

Model Number:LP148-6600-L(18650)

Type:Li-Ion,Li-ion battery,Lithium battery

Place of Origin:Guangdong China (Mainland)

Composed Type:4S3P

Nominal Voltage:14.4V/14.8V

Nominal Capacity:6600mAh/6.6Ah

Maximal Charging Current:6.6A(Adjust)

Constant Discharge Current:20A(Adjust)

Over Charger Protection Voltage(V):16.8V±0.05V

Over Discharge Protection Voltage(V):11V

Cell:Samsung/Sanyo/Sony/LG/Panasonic/Domestic 2200mAh Power battery

Certificate:CE,ROHS,UN38.3 REACH

Pack:Blue PVC Shrink tube

Size:40(T) x 73(W) x 173(H)mm

Weight:724±5g

Charging temperature(℃):0℃~45℃;32oF~113oF

Discharging temperature(℃):-20℃~60℃;-4oF~149oF

Storage temperature(℃):-20℃~45℃;-4oF~113oF

Protection Temperature(℃):70℃±5℃

Delivery time:5-7days

Cycle life:800 times

Warranty:12 months

Packing:Antistatic bag /white box and standard export carton/customized

Packaging & Delivery :
 . Netural labels,Polybag,PVC,Color box,Customised package
 . Netrual packing/Custom box with less than 10KGS
 . Delivery Detail:sample within 7 work days,15~35 days for bulk order


Recommended Charger: QW148-020-L
Charger input: 100V~240VAC 50-60Hz
Charging mode: constant voltage constant current (CC/CV)
Charging voltage: 16.8V±0.2V
Charging current: 2A±0.2A
Charging time: 3~4 hrs(standard)
Charger working instruction: Be in charging the red light,be full of charging the green light;


Product Advantages:
 1). Green product
 2). Long standby time
 3). One year warranty
 4). Excellent safety performance
 5). Excellent storage performance and low self-discharge rate
 6). Short circuit testing passed
 7). Overcharge testing passed
 8). Over discharge testing passed
 9). 150ºC thermal shock test passed
 10).1.2m drop testing passed


Spotlight:

 1).Provide both single cells and battery packs
 2).100% inspection before delivery
 3).Inspects inner resistance,discharge platform and self-discharge
 4). manufacturer of 18650 lithium ion battery,lithium polymer battery etc.
 5).tablished quality control systems under ISO9001
 6).Customized packs, tags,labels,plugs,connectors,over current protection,temperature contol protection are available


Shipping terms:

 1).Samples checking: sending by Express ( DHL/UPS/FEDEX/TNT,by air)
 2).Bulk production: sending out by cargo shipping / air freight / Express(DHL/UPS/FedEx/TNT),or we can accept other shipping terms according to your requirements.
 3).We are not responsible for any accidents, delays or other issues that are caused by the shipping.


Safety Precaution:
 1).Do not throw battery into water or make it wet;
 2).Keep the battery away from heat source(like fire or heater);
 3).Do not throw the battery into fire or heat the battery;
 4).Forbid to hammer to trample the battery;
 5).Forbid disassembling the battery in anyway


Call us to know more details datasheet.
