Quick Detail:

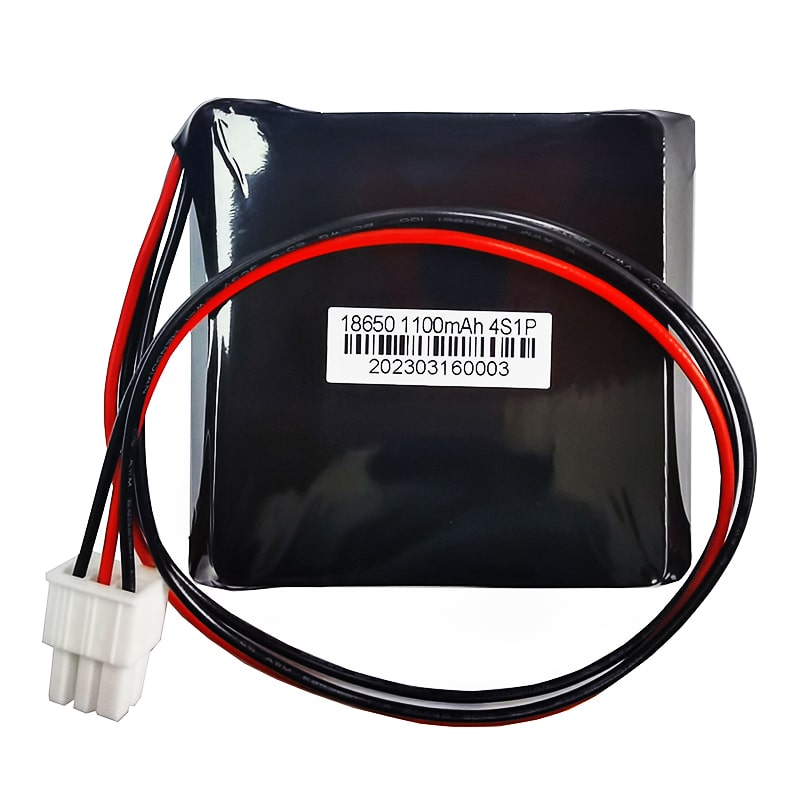

Brand Name:QUAWIN/OEM
Model Number:LP128-1100-FP(4S1P)
Type:LiFePO4 battery
Place of Origin:Guangdong China (Mainland)
Composed Type:4S1P
Nominal Voltage:12.8V
Nominal Capacity:1100mAh
BMS:PCM-L04S20-B63
Maximal Charging Current:3.3a(Adjust)
Constant Discharge Current:15a(Adjust)
Max Discharge current:30a(Adjust)
Output Wire:3PCS 18AWG Cable(330mm)
Connecting terminal:3Pin Molex 39012065
Connection mode:2=Positive Pole / 1,3=Negative Pole / 4,5,6=Null
Over Charger Protection Voltage(V):14.6±0.2V
Over Discharge Protection Voltage(V):8V
Cell:Domestic 1100mAh Battery
Certificate:CE,ROHS,UN38.3 REACH
Pack:Black PVC Shrink tube
Size:19(T) x 74(W) x 72(H)mm
Weight:205±5g
Charging temperature(℃):0℃~45℃;32oF~113oF
Discharging temperature(℃):-10℃~60℃;14oF~140oF
Storage temperature(℃):-10℃~45℃;14oF~113oF
Protection Temperature(℃):70℃±5℃
Cycle life:2000~3000 times
Warranty:12 months
Packing:Antistatic bag /white box and standard export carton/customized
Packaging & Delivery :
. Netural labels,Polybag,PVC,Color box,Customised package
. Netrual packing/Custom box with less than 10KGS
. Delivery Detail:sample within 7 work days,15~35 days for bulk order
Product Advantages:
1). Green product
2). Long standby time
3). One year warranty
4). Excellent safety performance
5). Excellent storage performance and low self-discharge rate
6). Short circuit testing passed
7). Overcharge testing passed
8). Over discharge testing passed
9). 150C thermal shock test passed
10).1.2m drop testing passed
Spotlight:
1). Provide both single cells and battery packs
2). 100% inspection before delivery
3). Inspects inner resistance,discharge platform and self-discharge
4). Manufacturer of 18650 Lifepo4 LFP battery,lithium polymer battery etc.
5). Tablished quality control systems under ISO9001
6). Customized packs, tags,labels,plugs,connectors,over current protection,temperature contol protection are available
Shipping terms:
1). Samples checking: sending by Express ( DHL/UPS/FEDEX/TNT,by air)
2). Bulk production: sending out by cargo shipping / air freight / Express(DHL/UPS/FedEx/TNT),or we can accept other shipping terms according to your requirements.
3). We are not responsible for any accidents, delays or other issues that are caused by the shipping.
Safety Precaution:
1). Do not throw battery into water or make it wet;
2). Keep the battery away from heat source(like fire or heater);
3). Do not throw the battery into fire or heat the battery;
4). Forbid to hammer to trample the battery;
5). Forbid disassembling the battery in anyway
Call us to know more details datasheet.
