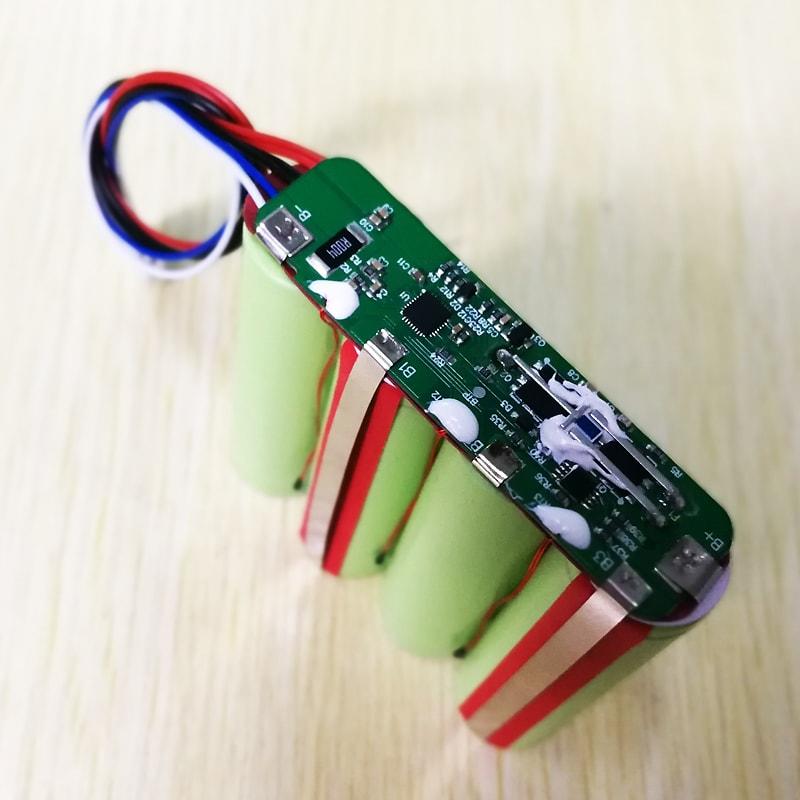

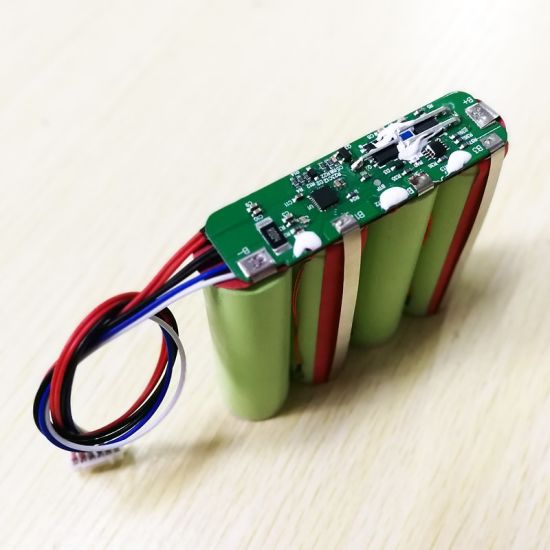

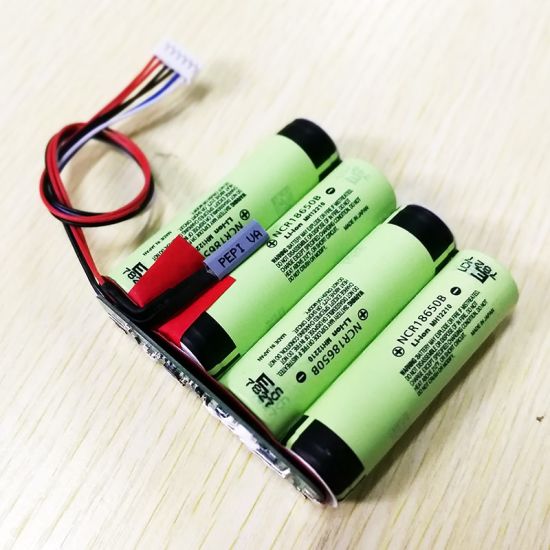

4S1P 12V 14.4V 14.8V 18650 3400mAh rechargeable lithium ion battery pack with SMBUS communication protocol

Quick Detail:
 Brand Name:QUAWIN/OEM
 Model Number:LP148-3400-LC(18650)
 Type:Li-Ion,Li-ion battery,Lithium battery
 Place of Origin:Guangdong China (Mainland)
 Composed Type:4S1P
 Nominal Voltage:14.8V
 Nominal Capacity:3400mAh
 Maximal Charging Current:1.5A(Adjust)
 Constant Discharge Current:3A(Adjust)
 Over Charger Protection Voltage(V):16.8V±0.2V
 Over Discharge Protection Voltage(V):11V
 Cell:Samsung/Sanyo/Sony/LG/Panasonic/Domestic 3400mAh Battery
 Certificate:CE,ROHS,UN38.3 REACH
 Pack:Blue PVC Shrink tube
 Size:19(T) x 70(W) x 73(H)mm
 Weight:215g
 Additional Features: SMBUS communication protocol
 Charging temperature(ºC):0ºC~45ºC;32oF~113oF
 Discharging temperature(ºC):-20ºC~60ºC;-4oF~149oF
 Storage temperature(ºC):-20ºC~45ºC;-4oF~113oF
 Protection Temperature(ºC):70ºC±5ºC
 Delivery time:5-7days
 Cycle life:800 times
 Warranty:12 months
 Packing:Antistatic bag /white box and standard export carton/customized

Packaging & Delivery :
 . Netural labels,Polybag,PVC,Color box,Customised package
 . Netrual packing/Custom box with less than 10KGS
 . Delivery Detail:sample within 7 work days,15~35 days for bulk order

Product Advantages:
 1). Green product
 2). Long standby time
 3). One year warranty
 4). Excellent safety performance
 5). Excellent storage performance and low self-discharge rate
 6). Short circuit testing passed
 7). Overcharge testing passed
 8). Over discharge testing passed
 9). 150ºC thermal shock test passed
 10).1.2m drop testing passed

Spotlight:
 1).Provide both single cells and battery packs
 2).100% inspection before delivery
 3).Inspects inner resistance,discharge platform and self-discharge
 4). manufacturer of 18650 lithium ion battery,lithium polymer battery etc.
 5).tablished quality control systems under ISO9001

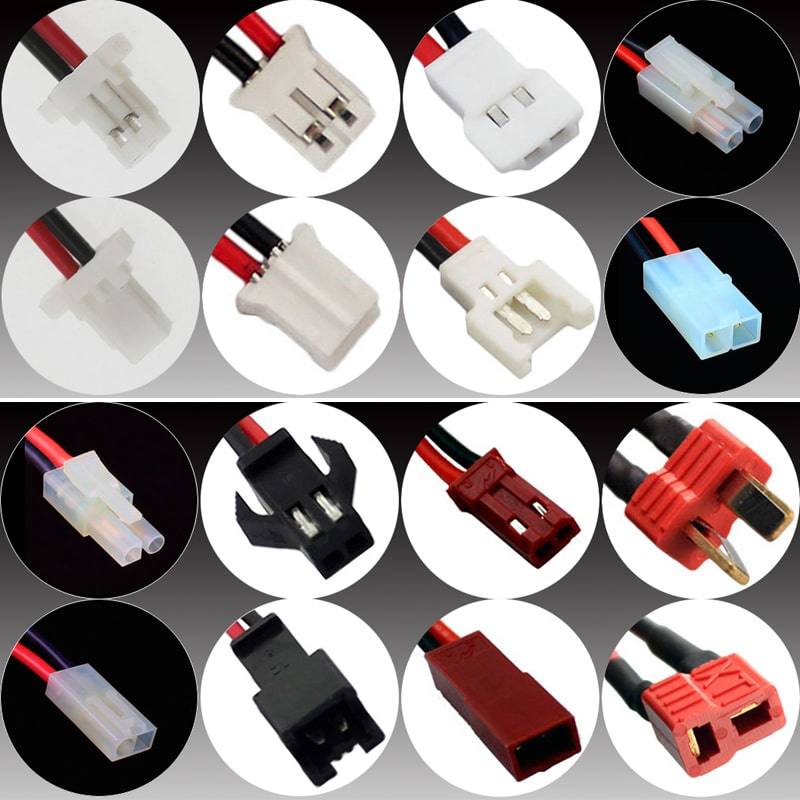

 6).Customized packs, tags,labels,plugs,connectors,over current protection,temperature contol protection are available

Shipping terms:
 1).Samples checking: sending by Express ( DHL/UPS/FEDEX/TNT,by air)
 2).Bulk production: sending out by cargo shipping / air freight / Express(DHL/UPS/FedEx/TNT),or we can accept other shipping terms according to your requirements.
 3).We are not responsible for any accidents, delays or other issues that are caused by the shipping.

Safety Precaution:
 1).Do not throw battery into water or make it wet;
 2).Keep the battery away from heat source(like fire or heater);
 3).Do not throw the battery into fire or heat the battery;
 4).Forbid to hammer to trample the battery;
 5).Forbid disassembling the battery in anyway

Call us to know more details datasheet.
