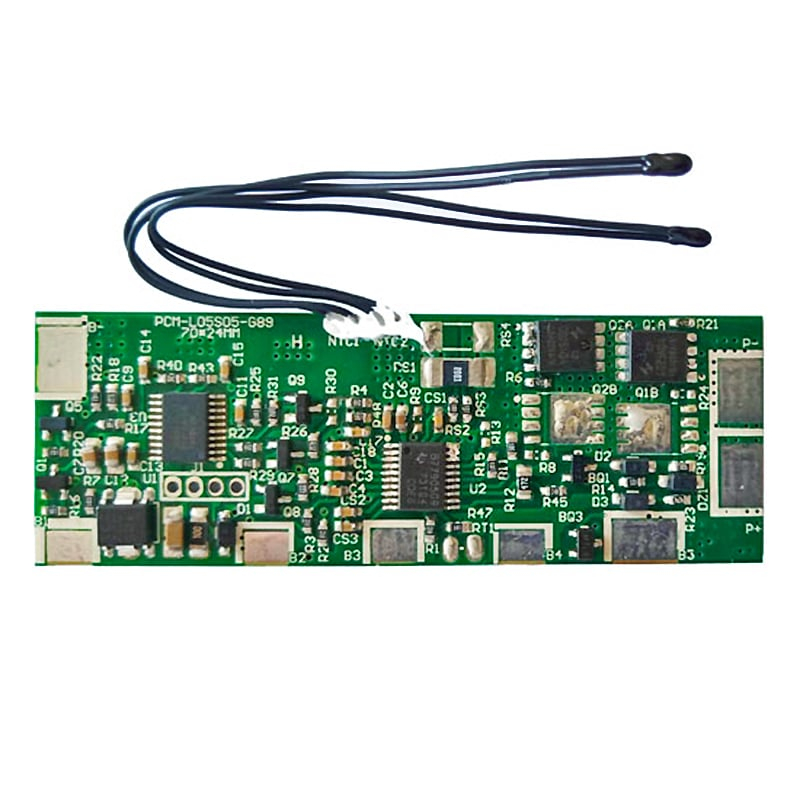

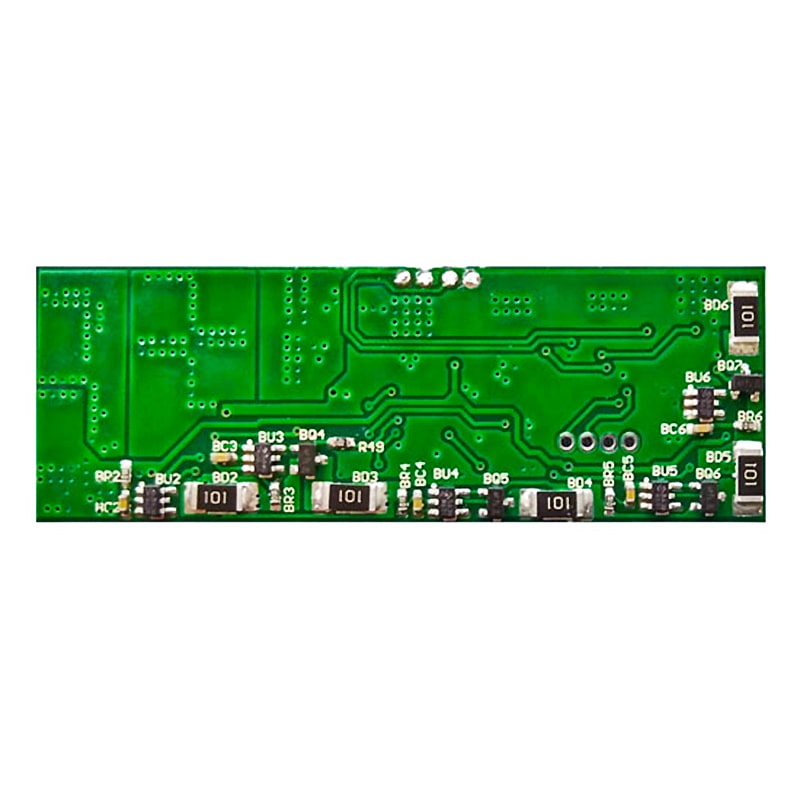

3s 4s 5s 10A PCM BMS for 18V 18.5V Li-ion/Lithium/Li-Polymer 15V 16V LiFePO4 Battery Pack Size L110*W40*T9mm (PCM-L05S05-G89)

Product name:Protection Circuit Module
Model No:PCM-L05S05-G89
For 3~5S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs
Product Feature:

1. Support 3S/4S/5S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;

2. High and low temperature protection for charging/discharging;

3. Charge/discharge the same port, the maximum continuous working current 10A;

4. With balancing function;

5. Ti BQ77905 scheme is adopted

Items		Specifications
		Lithium-ion/Lithium Polymer	LiFePO4
Charge	Charging voltage(CC/CV)-5S	CC/CV:21V	CC/CV:18V
	Maximal continuous charging current	10A(Max)
Discharge	Maximal continuous discharging current	10A(Max)
Low current consumption	Current consumption on operation	<20μA
	Current consumption at power down	<0.1μA
Cell-balance	Cell-balance detection voltage	4.20 ± 0.03 V	3.60 ± 0.03 V
	Cell-balance release voltage	4.20 ± 0.03 V	3.60 ± 0.03 V
	Cell-balance current	68 ±3mA	58 ±3mA
Over-charge	Overcharge detection voltage	4.25±0.025V	3.900 ± 0.025V
	Overcharge release voltage	4.15±0.05V	3.800 ± 0.050V
	Overcharge delay time	0.5~2S
Over-discharge	Overdischarge detection voltage	2.50±0.062V	2.00±0.080V
	Overdischarge release voltage	3.0±0.075V	2.30±0.100V
	Overdischarge delay time	100~300mS
Discharge overcurrent	Discharge overcurrent detection voltage	0.2±0.015V	0.10±0.015V
	Discharge overcurrent delay time	15~35ms
	Discharge overcurrent protection	25±5A(can adjust)
	Release condition	Cut-off-load
Short-circuiting protection	Load short-circuiting detection voltage	/	/
	Detection condition	Exterior short circuit
	Load short-circuiting detection delay time	200~800μs
	Release condition	Cut-off-load
Internal resistance	Static Drain-Source On-Resistance	<20mΩ(B- to P-)
Temperature	Wide range of operation temperature	40 ~ + 85ºC
	Storage Temperature Range	-40 ~ +125ºC
Dimension		L70*W24*T4mm
