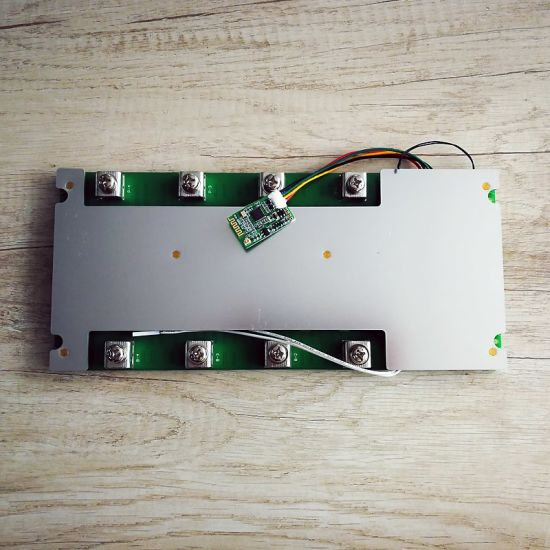

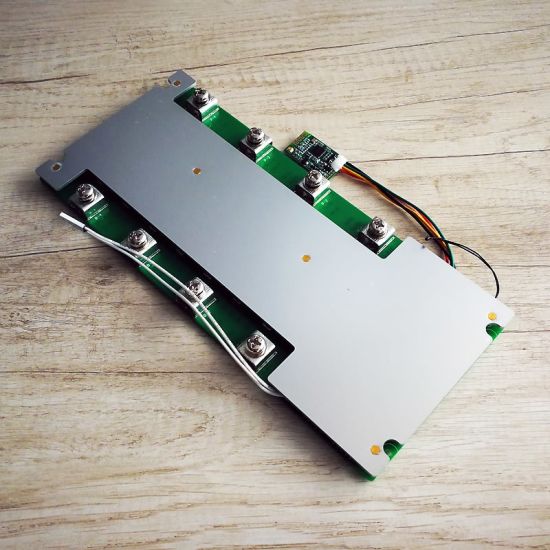

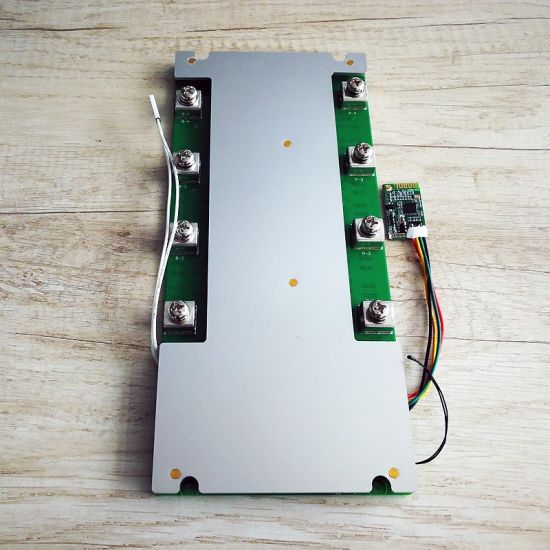

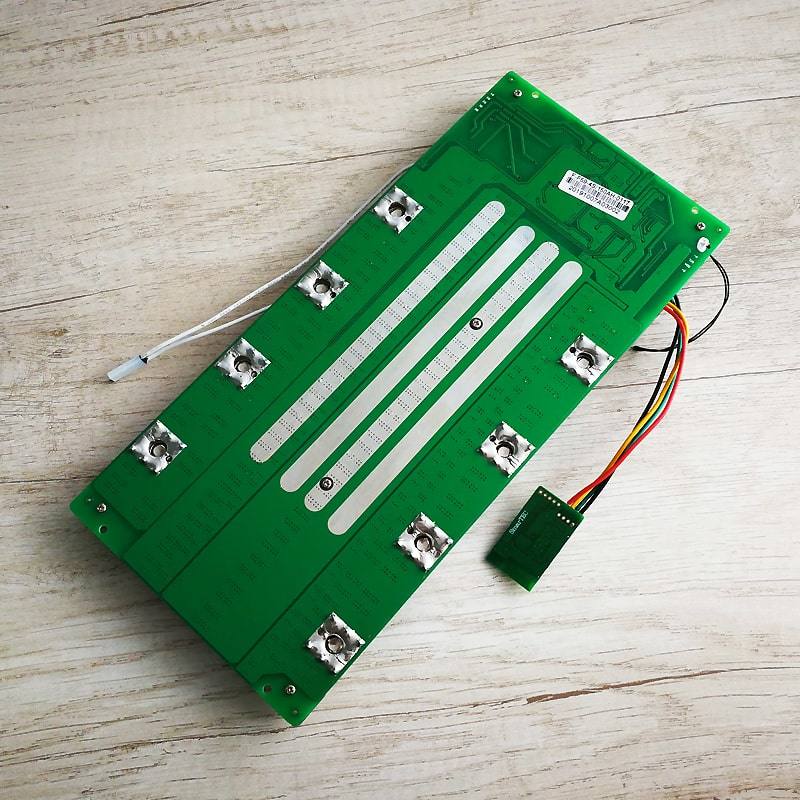

3s/4s 150A PCM BMS for 14.4V 14.8V Li-ion/Lithium/ Li-Polymer 12V 12.8V LiFePO4 Battery Pack with Hdq, I2c, RS232, RS485 Communication (PCM-L04S150-F59)

Model No:PCM-L04S150-F59
Max. continuous charging current:150A
Size:L255*W115*T15mm
Balance:YES
Quantity:
  • PCM-L04S150-F59
  • QUAWINTEC/OEM
  • 8507909000
  • Shenzhen, China
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • white box/polybags/at your request outer package:carton
  • 50PCS
  • 50000/Month
Technical parameter

Product name:Protection Circuit Module
Model No:PCM-L04S150-F59
For 3~4S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs

Product Feature:
1. Suitable for 3~4 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Maximum continuous working current 150A, same interface for charging/discharging;
3. Overcharge, overdischarge, short circuit, overcurrent, temperature protection, etc.;

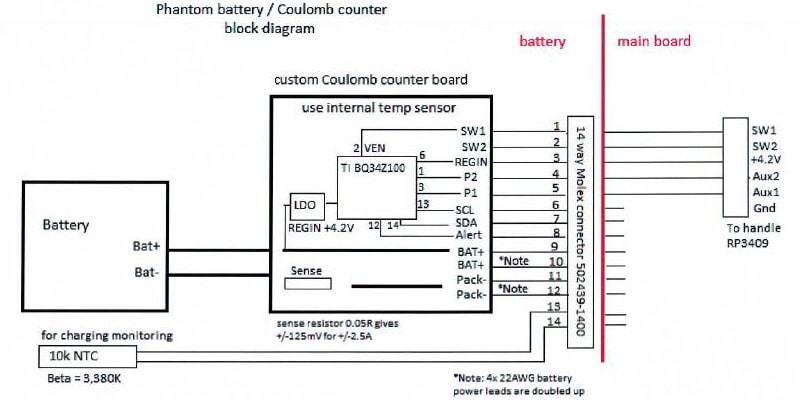

4. S-8204+BQ34Z100 is adopted;

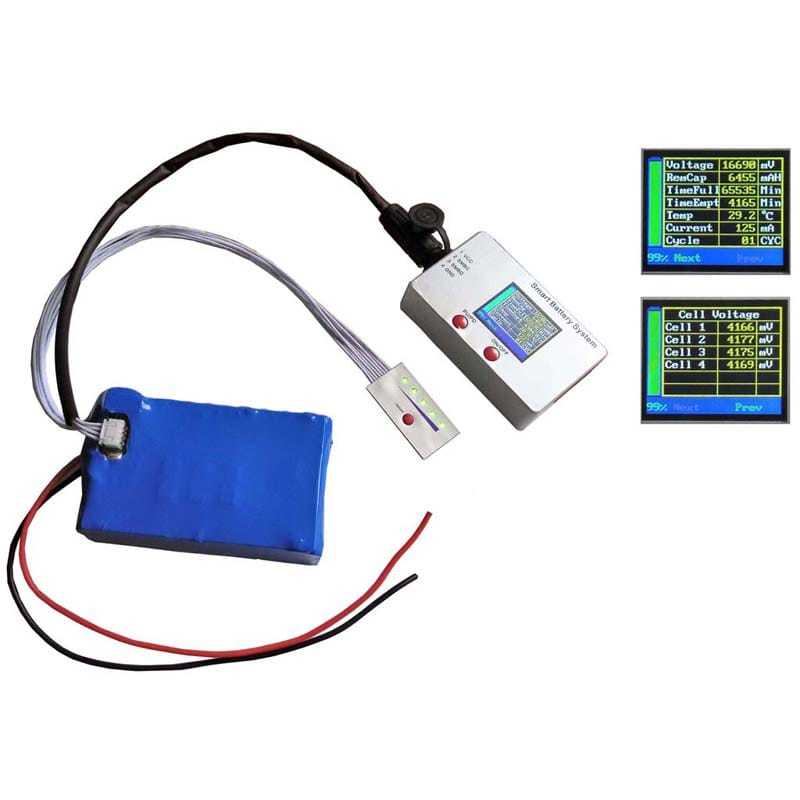

5. Through the PCM-LCD001-415 display screen, the required information can be read;

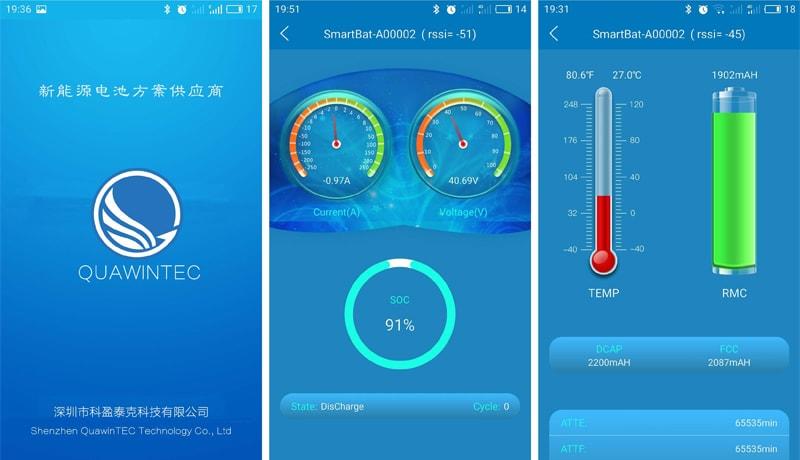

6. Connected to the special upper computer software, can display the total voltage, each battery voltage,
capacity,current, temperature, cycle times and other parameters;

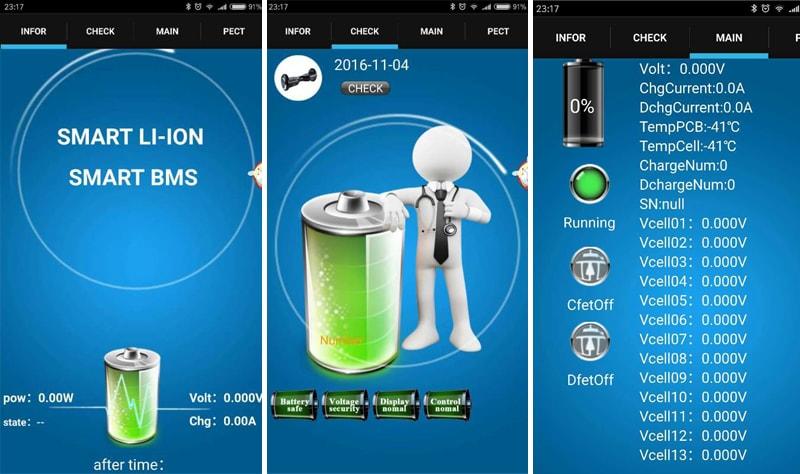

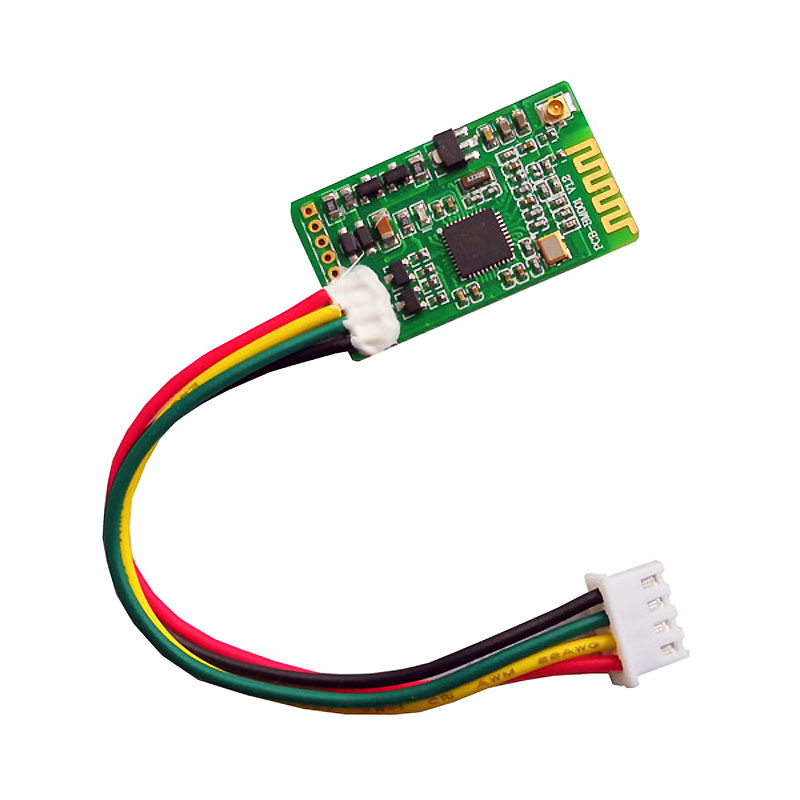

7. Meanwhile, it can connect to the special APP through bluetooth;
8. Support 4 or 5 batteries in series.


Items Specifications
Lithium-ion/Lithium Polymer
LiFePO4
Communication Interface HDQ,I2C,bluetooth
Capacity Designing battery capacity(4S2P) 100Ah(can adjust)
Max capacity(Battery pack) 290000mAh
Min capacity(Battery pack) 100mAh
External capacity Indication LED
Gas gauge algorithm Impedance Track
Charge
Charging voltage(CC/CV)-4S CC/CV:16.8V(4.2V/Cell) CC/CV:14.4V(3.6V/Cell)
Charging voltage(CC/CV)-3S CC/CV:12.6V(4.2V/Cell) CC/CV:10.8V(3.6V/Cell)
Maximal continuous charging current
150A
Discharge
Maximal continuous discharging current
150A

Low current
consumption

Current consumption on operation <50µA
Current consumption at power down
Cell-balance
Cell-balance detection voltage 4.20 ± 0.03 V 3.60 ± 0.03 V
Cell-balance release voltage 4.20 ± 0.03 V 3.60 ± 0.03 V
Cell-balance current 158 ±10mA 124 ±10mA
Over-charge
Overcharge detection voltage 4.250 ± 0.025 V 3.900 ± 0.025 V
Overcharge release voltage 4.150 ± 0.050 V 3.600 ± 0.050 V
Overcharge delay time 0.5~2.0S
Over-Discharge
Overdischarge detection voltage 2.50 ± 0.080 V 2.00 ± 0.080 V
Overdischarge release voltage 3.00 ± 0.100 V 2.30 ± 0.100 V
Overdischarge delay time 10~400mS
Short-circuiting  protection
Load short-circuiting detection voltage

Detection condition Exterior short circuit
Load short-circuiting detection delay time
200 ~ 800µs
Release condition Cut-off-load
Internal resistance Static Drain-Source On-Resistance <50mΩ(B- to P-)
Temperature
Wide range of operation temperature − 40 ~ + 85 °C
Storage Temperature Range -40~+125℃
Dimension L255*W115*T15mm
B+:Battery+ 3s-4s-150A-PCM-BMS-for-14-4V-14-8V-Li-ion-Lithium-Li-Polymer-12V-12-8V-LiFePO4-Battery-Pack-with-Hdq-I2c-RS232-RS485-Communication-PCM-L04S150-F59-5
B-:Battery-
SDA:I2C Data interface
SCL:I2C Clock interface

HDQ:Open drain HDQ Serial

 communication line (slave)

P+:Charge+/discharge+
P-:Charge-/discharge-
