3s 3A BMS for 10.8V 11.1V 12V Li-ion/Lithium/Li-Polymer 9V 9.6V LiFePO4 Battery Pack Size L30*W10*T3mm (PCM-Li03S2-103)

Model No:PCM-Li03S2-103
Working current:3A
Size:L30*W10*T3mm
Balance:NO
Availability:
Quantity:
  • PCM-Li03S2-103

  • QUAWINTEC/OEM

  • 8507909000

  • Shenzhen, China

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • white box/polybags/at your request outer package:carton

  • 500PCS

  • 500000/Month

Technical parameter


Product name:Protection Circuit Module
Model No:PCM-Li03S2-103
For 3S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs

Product Feature:
1. Suitable for 3 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Maximum continuous working current 3A, same interface for charging/discharging;
3. Overcharge, overdischarge, short circuit, overcurrent, temperature protection, etc.;
4. The scheme adopts seiko S-8254 series;

Items Specifications
Lithium-ion/Lithium Polymer LiFePO4
Charge Charging voltage(CC/CV)-3S CC/CV:12.6V CC/CV:10.8V
Maximal continuous charging current 3A(Max)
Discharge Maximal continuous discharging current 3A(Max)
Low current consumption Current consumption on operation <20μA
Current consumption at power down <0.1μA
Cell-balance Cell-balance detection voltage / /
Cell-balance release voltage / /
Cell-balance current / /
Over-charge Overcharge detection voltage 4.25±0.025V 3.900 ± 0.025V
Overcharge release voltage 4.15±0.05V 3.800 ± 0.050V
Overcharge delay time 0.5~2S
Over-discharge Overdischarge detection voltage 2.50±0.062V 2.00±0.080V
Overdischarge release voltage 3.0±0.075V 2.30±0.100V
Overdischarge delay time 100~300mS
Discharge overcurrent Discharge overcurrent detection voltage 0.2±0.015V 0.10±0.015V
Discharge overcurrent delay time 15~35ms
Discharge overcurrent protection 7±2a(adjustable)
Release condition Cut-off-load
Short-circuiting protection Load short-circuiting detection voltage / /
Detection condition Exterior short circuit
Load short-circuiting detection delay time 200~800μs
Release condition Cut-off-load
Internal resistance Static Drain-Source On-Resistance <20mΩ(B- to P-)
Temperature Wide range of operation temperature 40 ~ + 85ºC
Storage Temperature Range -40 ~ +125ºC
Dimension L30*W10*T3mm

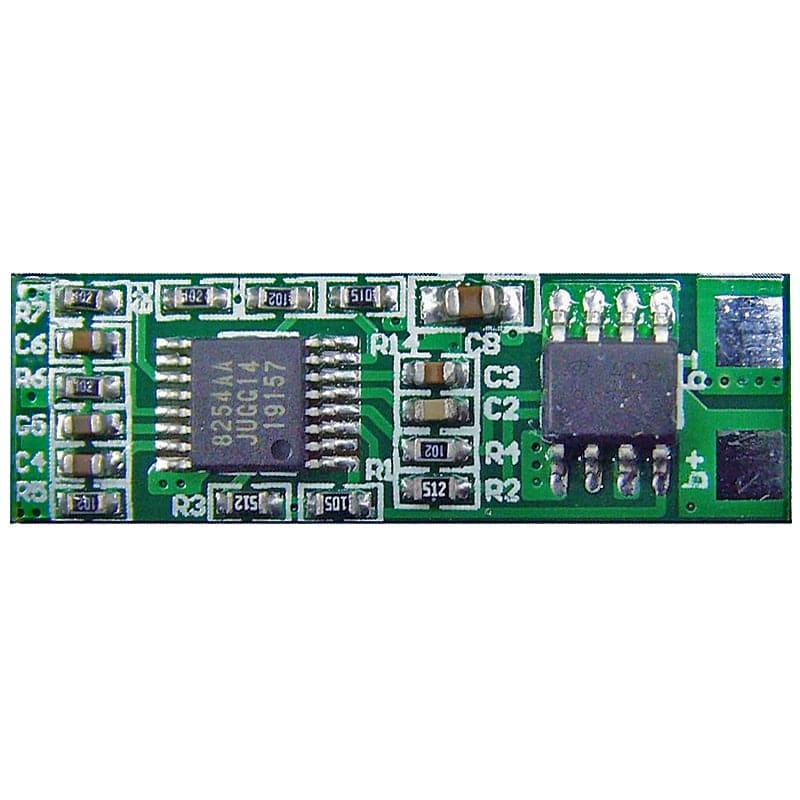

PCM-Li03S2-103FPCM-Li03S2-103BPCM-Li03S2-103 SCH3s 3A PCM BMS for 10.8V 11.1V 12V Li-ion/Lithium/ Li-Polymer 9V 9.6V LiFePO4 Battery Pack Size L30*W10*T3mm (PCM-Li03S2-103)3s 3A PCM BMS for 10.8V 11.1V 12V Li-ion/Lithium/ Li-Polymer 9V 9.6V LiFePO4 Battery Pack Size L30*W10*T3mm (PCM-Li03S2-103)
3s 3A PCM BMS for 10.8V 11.1V 12V Li-ion/Lithium/ Li-Polymer 9V 9.6V LiFePO4 Battery Pack Size L30*W10*T3mm (PCM-Li03S2-103)3s 3A PCM BMS for 10.8V 11.1V 12V Li-ion/Lithium/ Li-Polymer 9V 9.6V LiFePO4 Battery Pack Size L30*W10*T3mm (PCM-Li03S2-103)
3s 3A PCM BMS for 10.8V 11.1V 12V Li-ion/Lithium/ Li-Polymer 9V 9.6V LiFePO4 Battery Pack Size L30*W10*T3mm (PCM-Li03S2-103)
