3s 10A PCM BMS for 10.8V 11.1V 12V Li-ion/Lithium/ Li-Polymer 9V 9.6V LiFePO4 Battery Pack with Smbus Protocol Size L80*W20.5*T3.5mm (PCM-L03S10-B25)

Product name:Protection Circuit Module
Model No:PCM-L03S10-B25
For 3S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs
Product Feature:
1. Suitable for 3 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Maximum continuous working current 10A, same interface for charging/discharging;
3. Overcharge, overdischarge, short circuit, overcurrent, temperature protection, etc.;
4. Ti BQ20Z95 is adopted,Can read voltage, capacity, current, temperature, cycle times and other parameters;

11.1V(3S) Li-ion battery PCM SEPCIFICATION
NO.	Test under 25 ºC		Criterion
1	Voltage	Charging voltage(3S)	DC:12.6V CC/CV(4.2V/1Cell)
2	Voltage	Designing battery capacity	7200mAh
		Max capacity(Battery pack)	15000mAHh
3	Electric current	Current consumption (software)	<600uA
		Current consumption (Sleep Current)	<200uA
		Maximal continuous charging current	10A
		Maximal continuous discharging current	10A
4	Overcurrent protection (one pole protection)	Over charge detection current	4000mA
		Detection delay time	1s
		Over discharge detection current	5000mA
		Detection delay time	1s
5	Overcurrent protection (bipolar protection)	Over charge detection current	4500mA
		Detection delay time	2s
		Over discharge detection current	5500mA
		Detection delay time	2s
		recovery delay	8s
6	Overcharge protection of monomers	Over charge detection voltage	4.35±0.025V
		Over charge detection delay time	1S
		Over charge release voltage	4.075±0.05V
		The overcharge test recovery delay time	2s
7	Single over discharge protection	Over discharge detection voltage	2.4±0.1V
		Over discharge detection delay time	1s
		Over discharge release voltage	3.0±0.05V
8	One pole protection, battery pack overcharge protection	Over charge detection voltage	12.75V
		Over charge detection delay time	1s
		Over charge release voltage	12.225V
9	Two pole protection, battery pack overcharge protection	Over charge detection voltage	13.5V
10	Battery pack, over discharge protection	Over discharge detection voltage	8.4V
		Over discharge detection delay time	1s
		Over discharge release voltage	9V
		Over discharge detection delay time	0s
11	Short circuit protection	Detection condition	P+,P- short circuit
		Detection delay time	200-500us
		Release condition	Cut load
12	Short circuit protection	Protection  circuitry	≤100mΩ
13	First level protection, over temperature protection	charge	50ºC±5ºC
		The charge delay time	2s
		Over temperature release charging	45ºC±5ºC
		discharge	60ºC±5ºC
		discharge delay time	2s
		discharge recovery delay time	55ºC±5ºC
14	Two level protection, over temperature protection	charge	65ºC±5ºC
		charge delay time	0s
		discharge	75ºC±5ºC
		over discharge delay	0s
15	temperature	Operating Temperature Range	-20~+85ºC
		Storage Temperature Range	-20~+125ºC

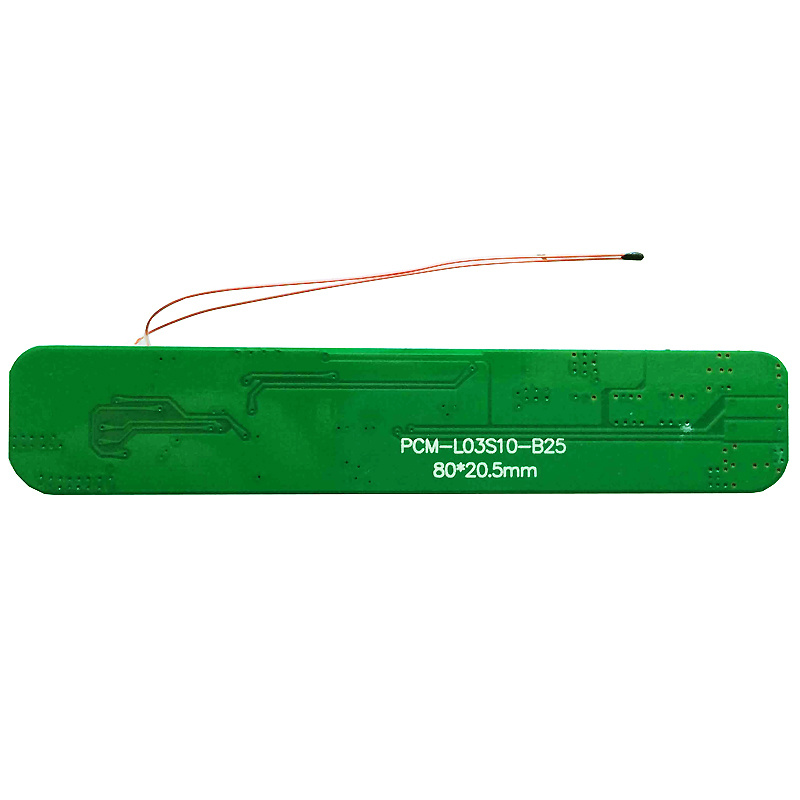

Dimension		L80*W20.5*T3.5mm

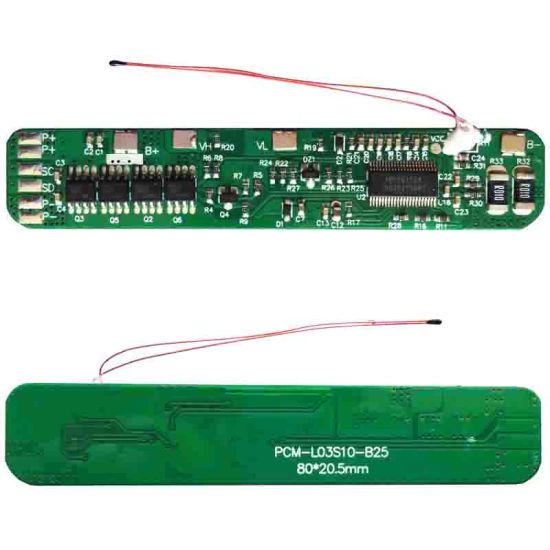

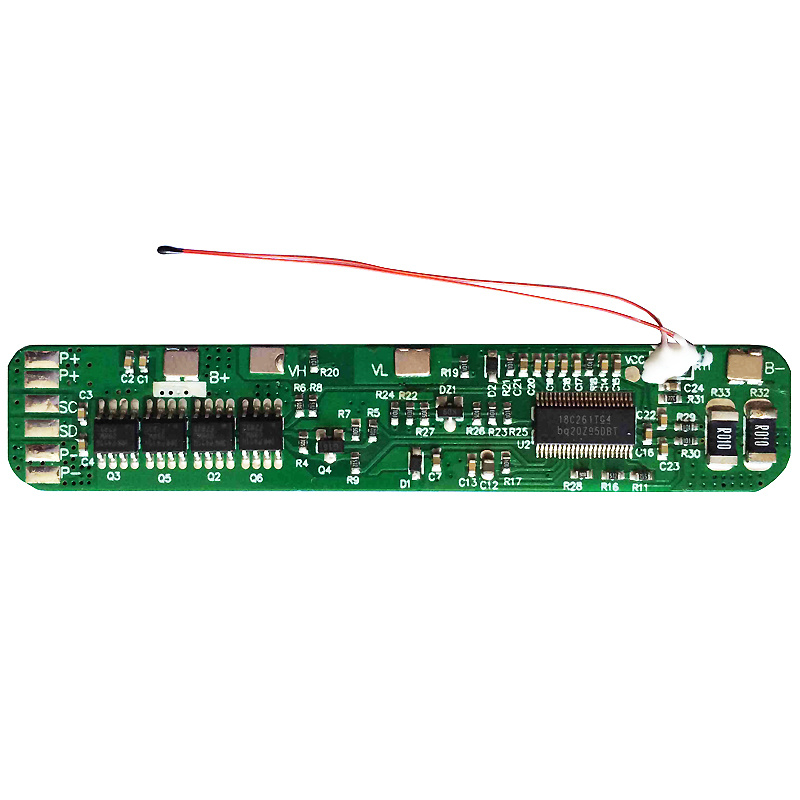

B+:Battery+
B-:Battery-
SC:SMBus clock line
SD:SMBus data line
P+:Discharge+
P-:Discharge-
