360W Waterproof Charger 48V 5a 6a Charger for AGM VRLA GEL Lead Acid Batteries Solar Street Lights Energy Storage Battery Pack

Quick Detail:

Brand Name:QUAWIN

Model Number:QW480-060-SA

Use:48V Lead-Acid Battery

Type:Electric

Place of Origin:Guangdong China (Mainland)

Battery charger:automatic battery charger 58.8V

Color:Black
Shell Material:Aluminium alloy
Protection grade:IP54/IP56
Input voltage:100-240VAC 50/60Hz with PFC

Output voltage:58.8V

Output current:6a

Output power:352.8W
Efficiency:≧90%
Shock & Vibration:SAEJ1378 Standard

Charge mode:CC---CV---Float Charge

Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

Inner package:Corrugated box,EPE pearl cotton/according to your requirements

Outer packing: export carton

Delivery Detail:sample within 7 work days,24-32 days for bulk order

Specifications:

  Portable fast SLA /AGM /VRLA /GEL charger 48V Lead-acid Battery charger

Features:

  • Fully auto CC +CV(H)+CV(L) charging process,with MCU controller
  • Constant big charging current for faster charging;
  • Automatically charging ending with Cut-Off output;
  • Glue pouring process and metal shell cooling design
  • It can charge any 48V SLA/VRLA/GEL/AGM battery with capacity 24-48ah

Specification:

  • Input: 100-240VAC 50/60Hz with PFC
  • Output: DC 58.8V
  • Charging current: 6a(Max)

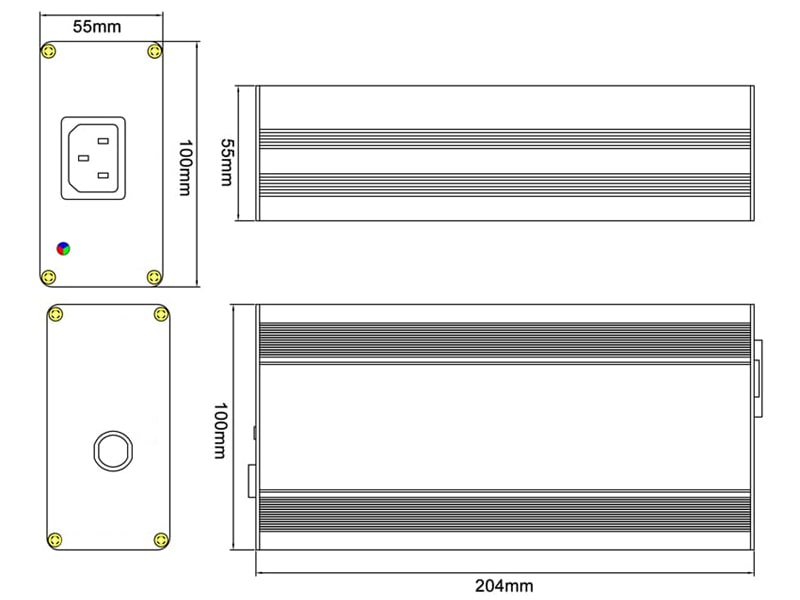

  • Dimensions (mm): 204*100*55
  • Weight: 2000g(only body)

Safety protections:

  • Over current protection

  • Over voltage protection

  • Short circuit protection

  • Reverse polarity protection

  • Anti-revert current protection

  • Anti-spark protection

LED Indicator:

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:

  • Charging:Red LED

  • Battery Full:Green LED

  • Error: RED Light Flashing

Call us to know more details datasheet.
